Replacing Wooden Finisher For Cup Holder:

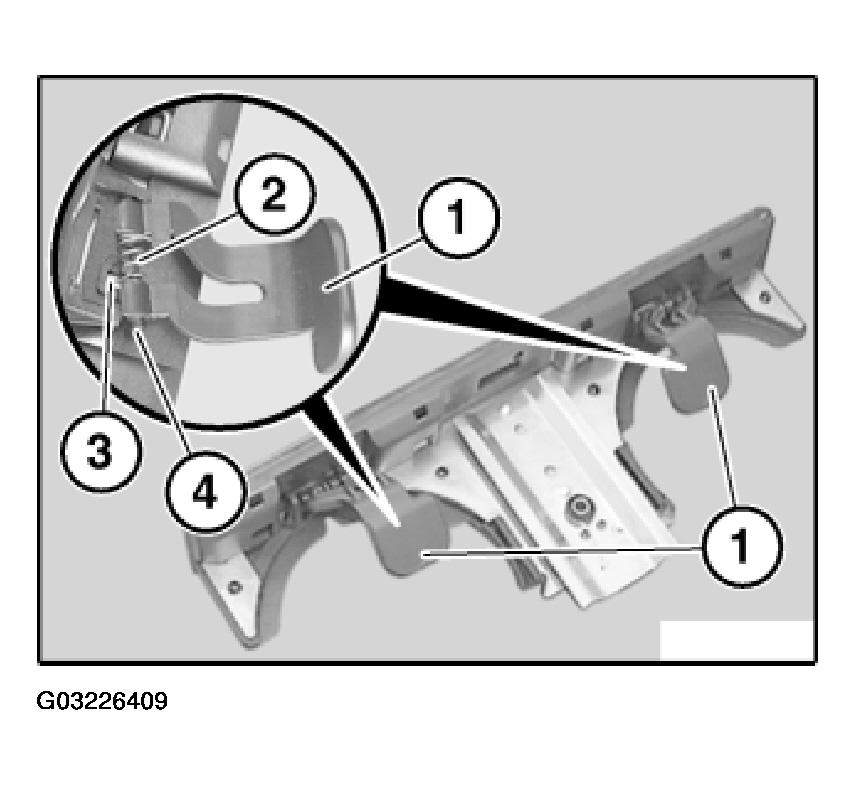

Remove cover for cup holder (with wooden finisher). Press together legs on both setting levers (1) and snap out.

CAUTION: Do not lose spring (2).

Installation:

Insert one leg of spring (2) in opening (3) in plastic cover (4).

Fig 1: Inserting One Leg Of Spring In Opening In Plastic Cover

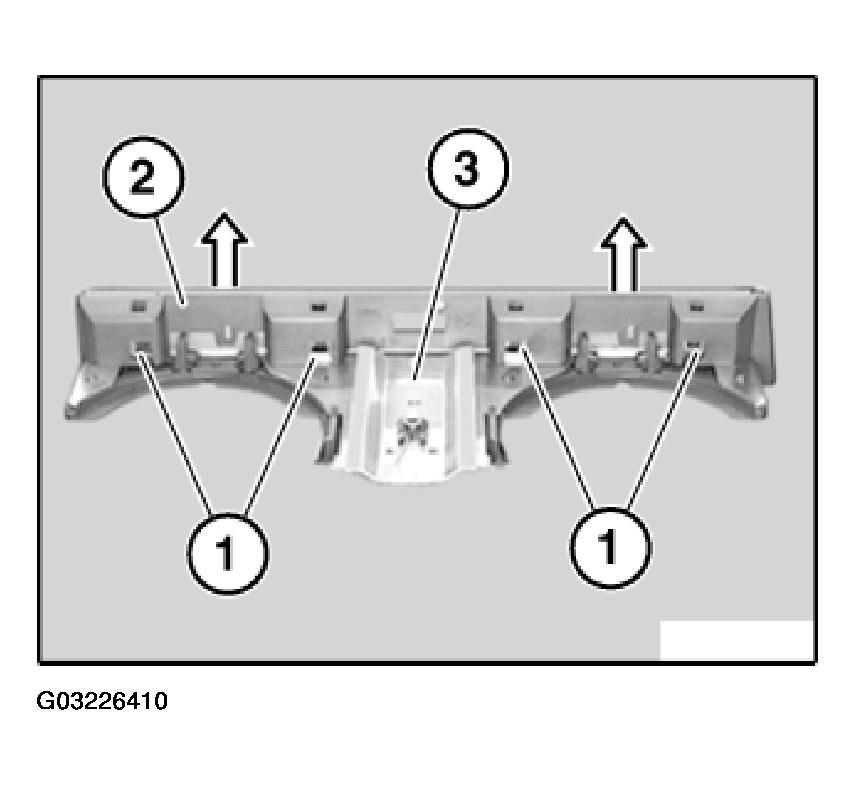

Snap out hook (1) and detach plastic cover (2) from cup holder front section (3).

Fig 2: Snap Out Hook (1) And Detach Plastic Cover (2) From Cup Holder Front Section (3)

Installation:

Snap plastic cover (2) into correct position.

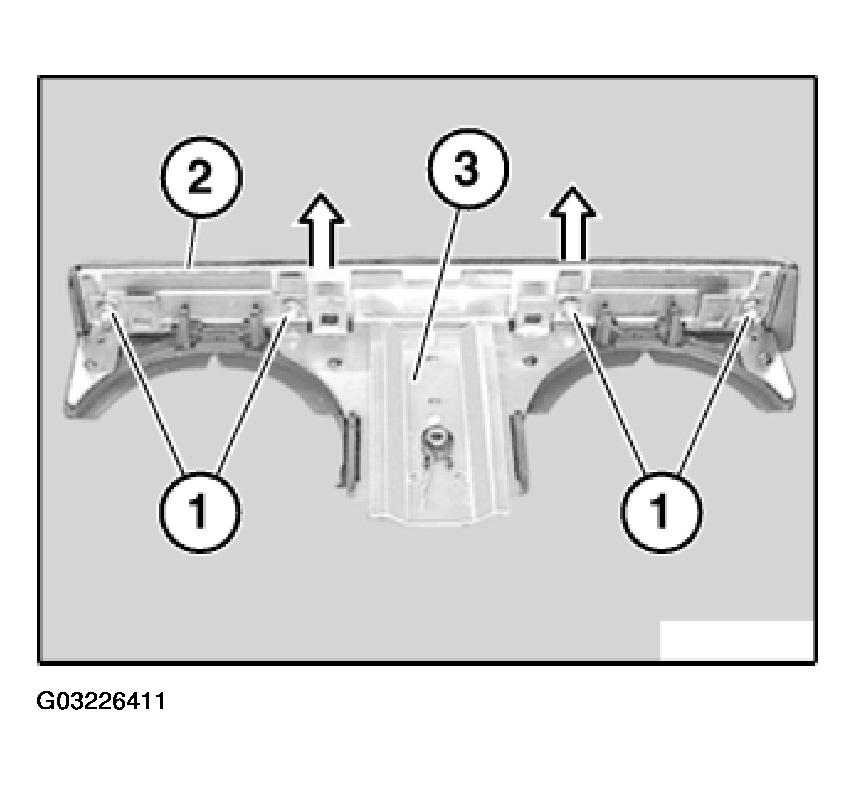

Release nuts (1) with toothed washers and remove wooden finisher (2) from cup holder front section (3).

Fig 3: Release Nuts (1) With Toothed Washers And Remove Wooden Finisher (2) From Cup Holder Front Section (3)

Installation:

Fit and screw down wooden finisher (note installation position).

Carry out function check of gap.

Installation:

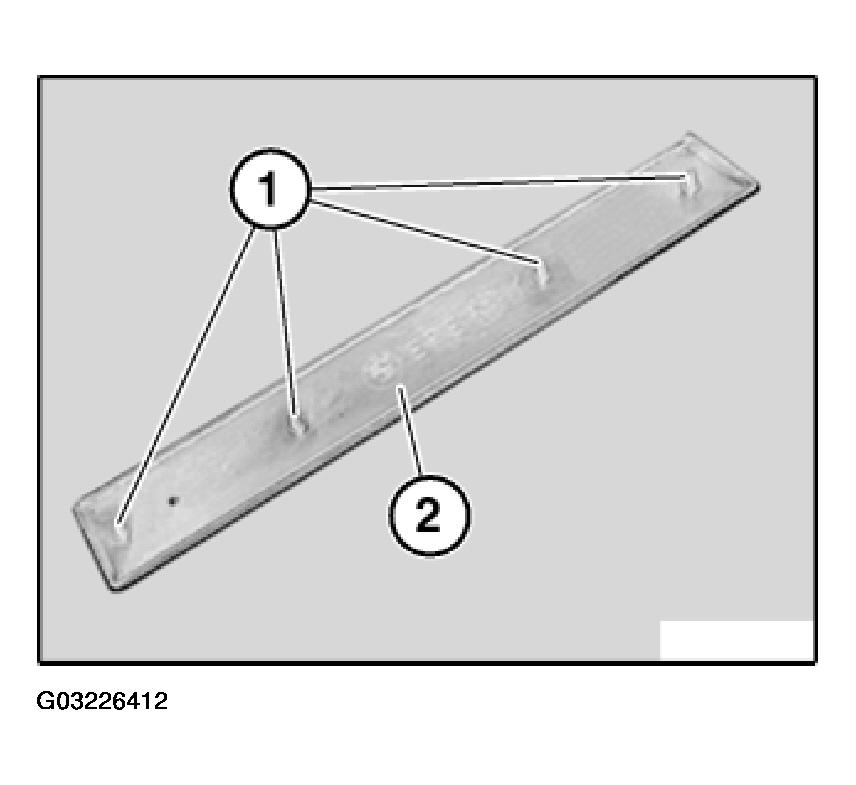

Threads (1) of wooden finisher (2) must not be damaged.

Fig 4: Identifying Wooden Finisher
