51 48 ... Removing and installing/replacing sound insulation/protective mat on left or right front door

Disconnect battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove airbag module on front door, refer to AIR BAG RESTRAINT SYSTEMS .

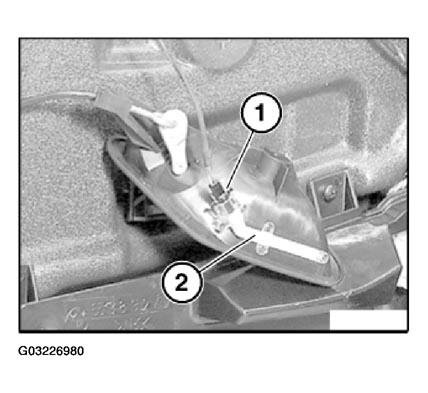

Disconnect LED with cable (1) from light housing (2).

Fig 1: Disconnecting Led With Cable From Light Housing
G03226980

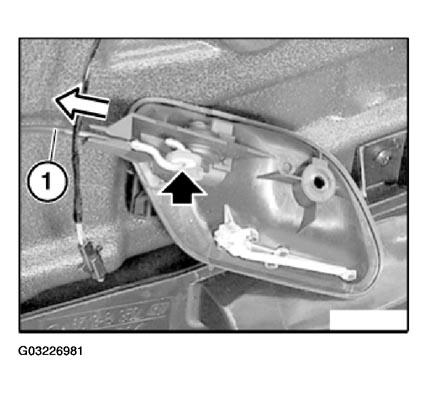

Pull Bowden cable (1) backwards and unclip from door handle.

Fig 2: Pulling Bowden Cable Backwards And From Door Handle
G03226981

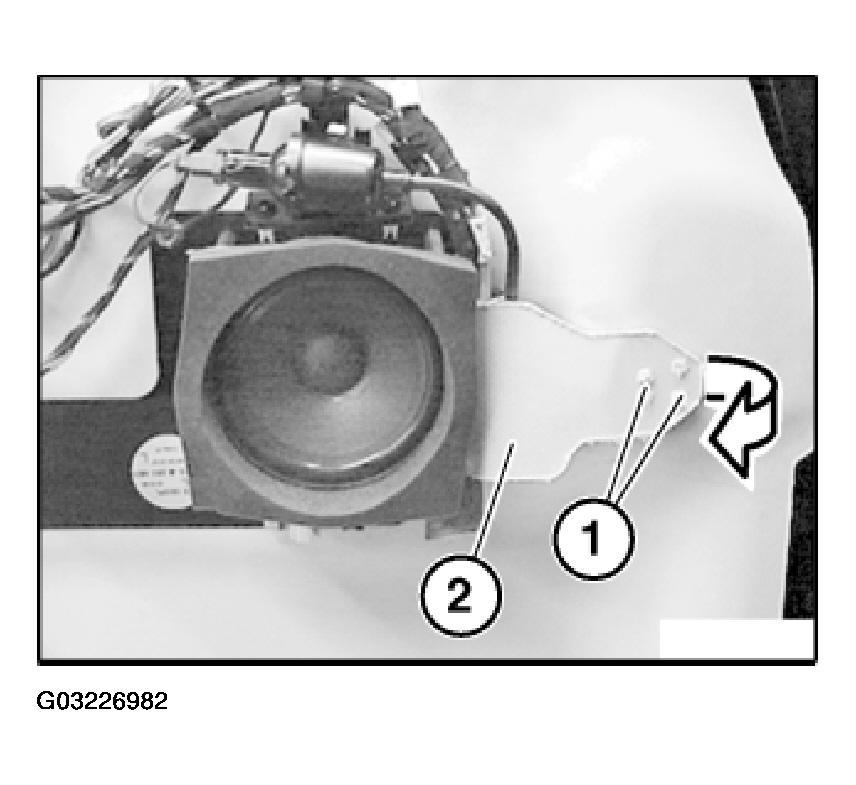

Release screws (1) and remove protective mat (2) for cable penetration.

Fig 3: Removing Protective Mat For Cable Penetration
G03226982
CAUTION: Do not kink fiber optics cable. The bending radius of the fiber optics cable must not be less than 20 mm.

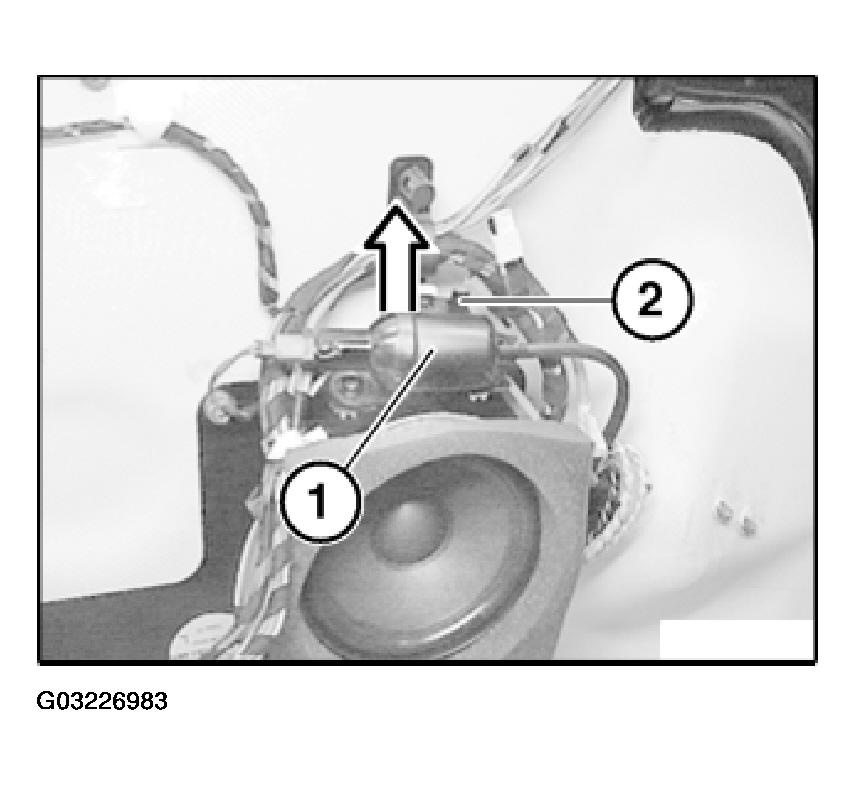

Detach central light source (1) from holder (2) towards top.

Fig 4: Detaching Central Light Source From Holder
G03226983

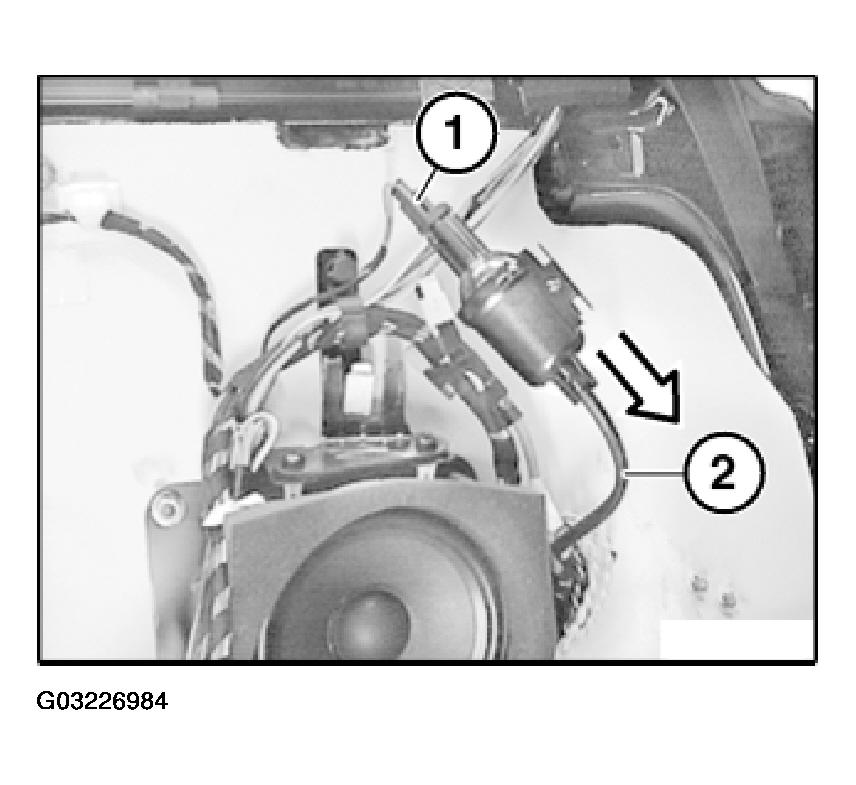

Disconnect plug connection (1) and detach fiber optics cable (2) from central light source.

Fig 5: Detaching Fiber Optics Cable From Central Light Source
G03226984

Release all cable ties on speaker unit.

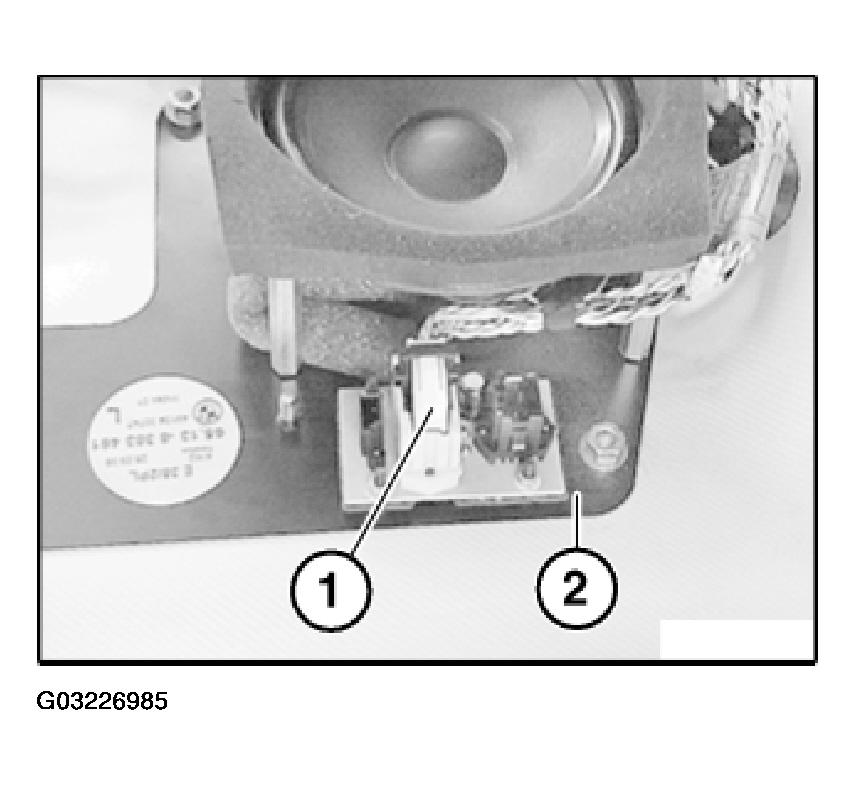

Disconnect plug connection (1) on speaker unit (2) at bottom.

Fig 6: Disconnecting Plug Connection On Speaker Unit
G03226985

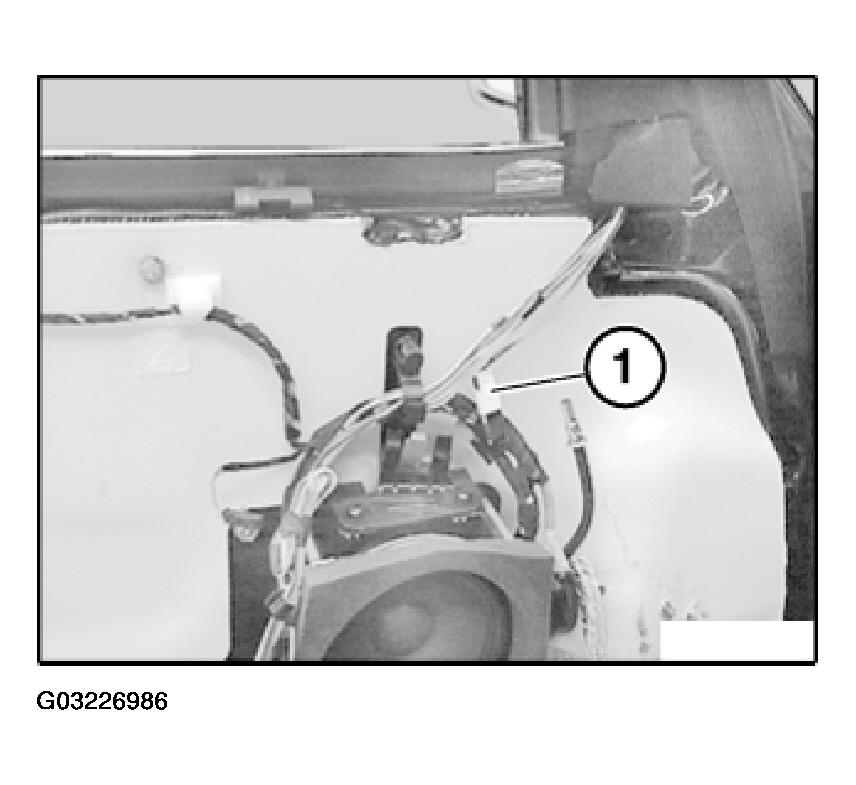

Disconnect plug connection (1) on wiring harness.

Fig 7: Disconnecting Plug Connection On Wiring Harness
G03226986

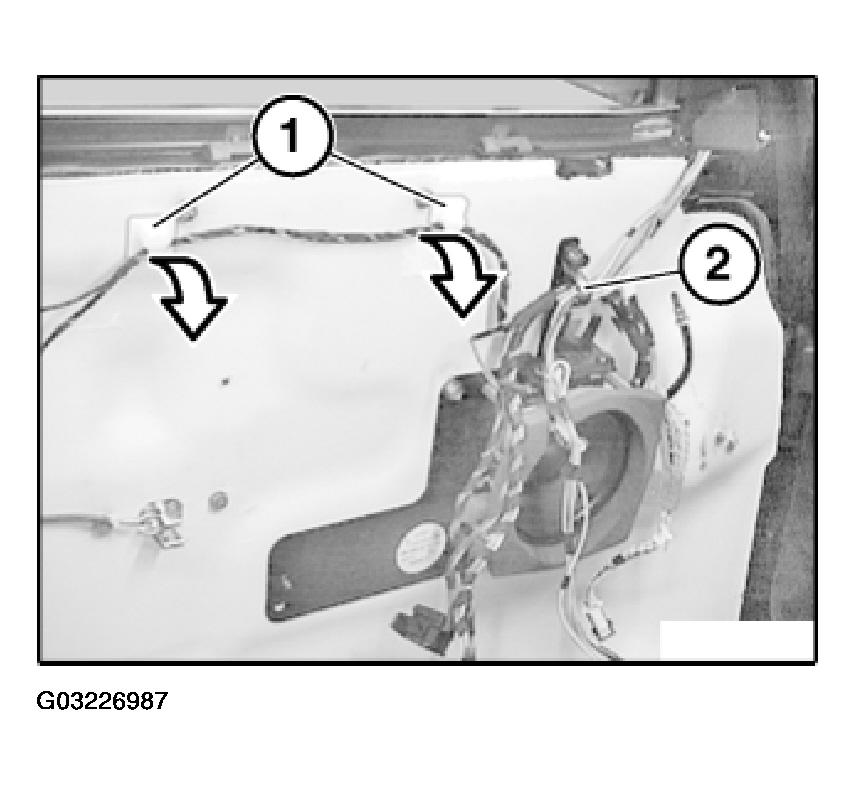

Open clips (1) and wiring harness holder (2).

Expose wiring harness.

Fig 8: Exposing Wiring Harness
G03226987

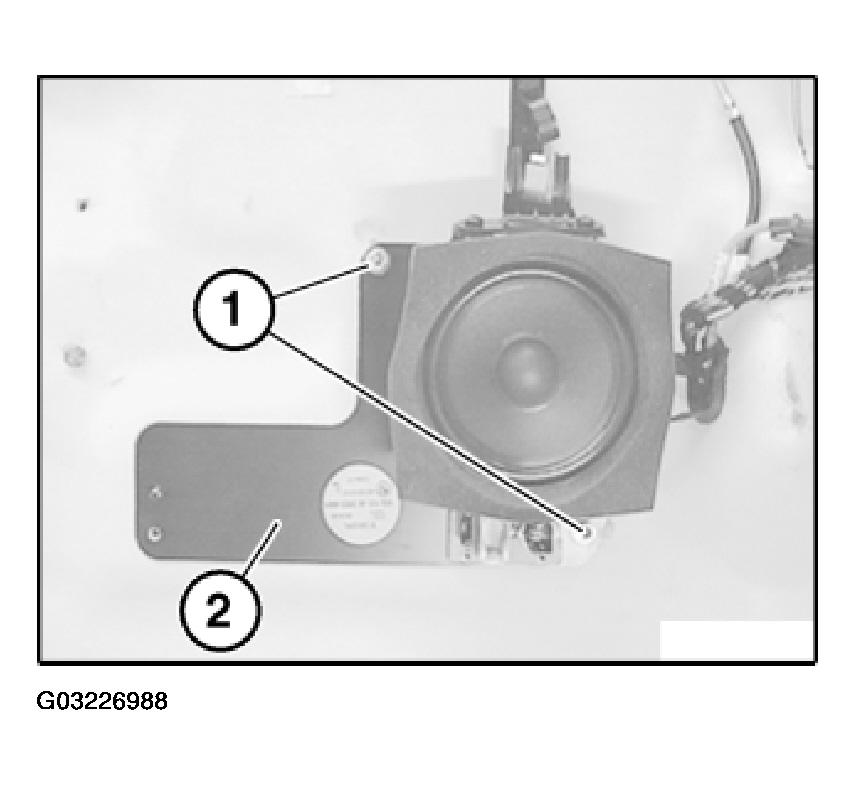

Release screws (1) and remove speaker unit (2).

Fig 9: Releasing Screws And Remove Speaker Unit
G03226988

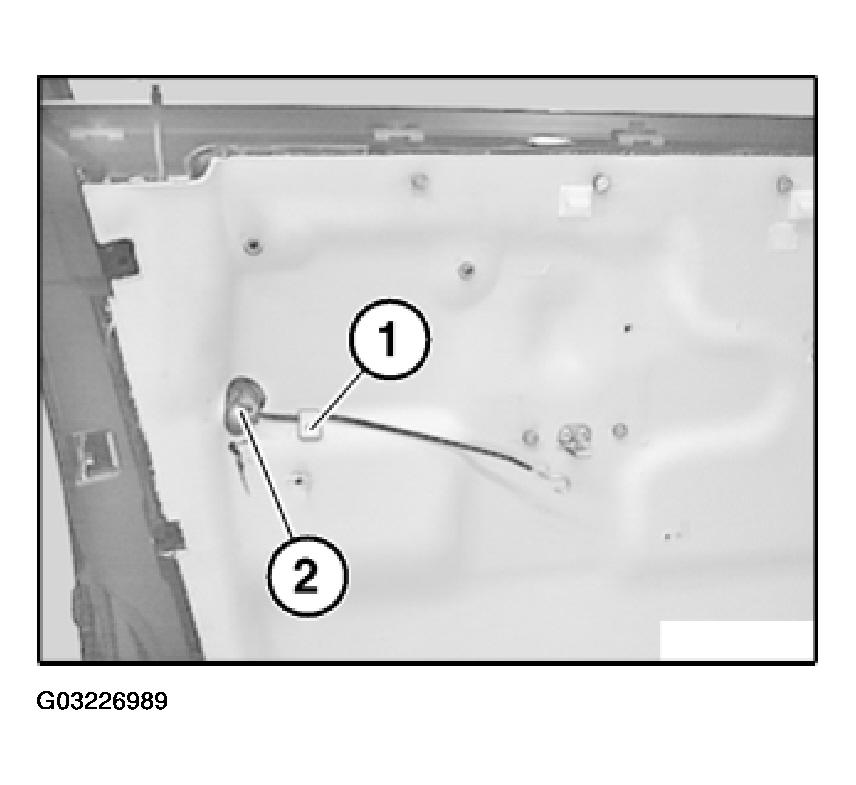

Release screw (1) and remove butyl compound (2) from cable penetration.

Fig 10: Removing Butyl Compound From Cable Penetration
G03226989

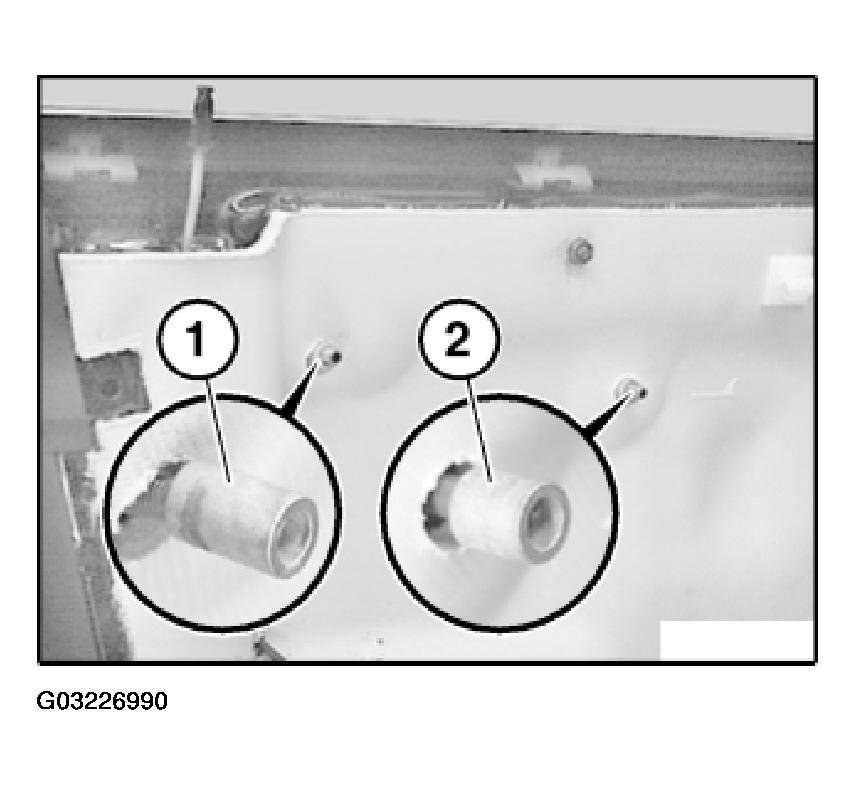

Pull spacers (1) and (2) off stud bolts.

Installation:

Rear spacer (1) - long.

Front spacer (2) - short.

Fig 11: Pulling Spacers And Off Stud
G03226990

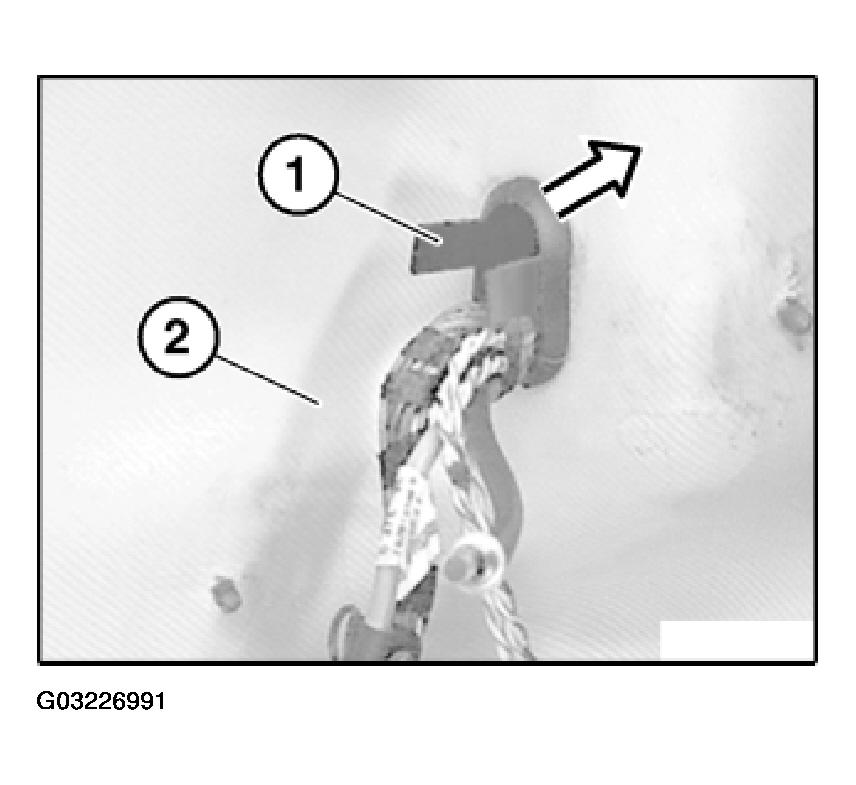

Press rubber grommet (1) with wiring harness through sound insulation/protective mat (2).

Fig 12: Pressing Rubber Grommet With Wiring Harness
G03226991

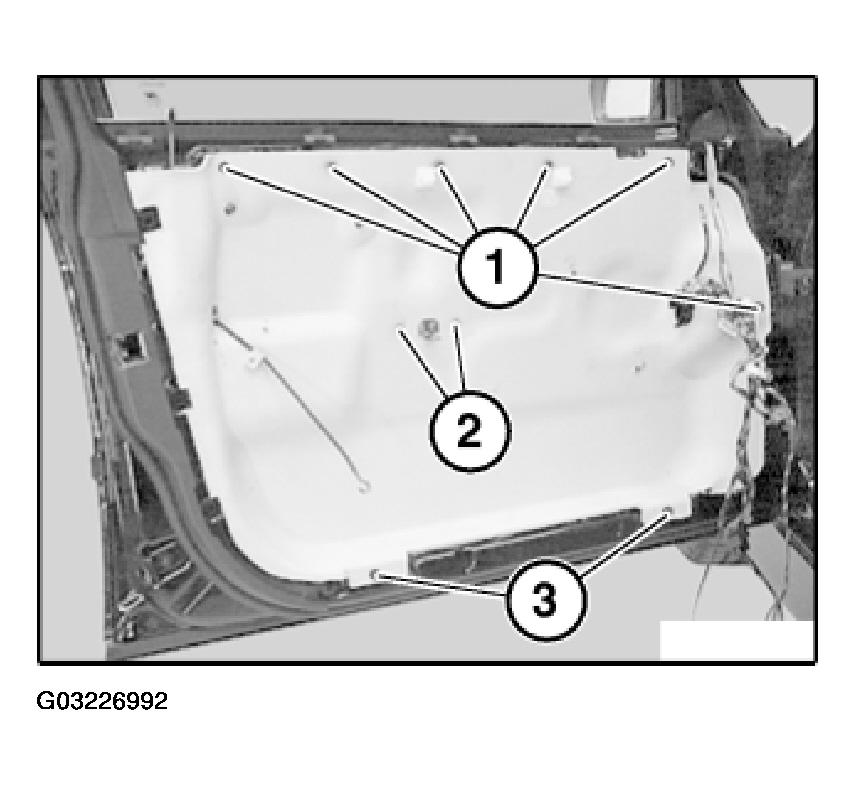

Unfasten screws (1) to (3).

Fig 13: Identifying Unfasten Screws
G03226992
CAUTION: Carefully remove seal (1). Do not damage sound insulation/protective mat (2). Material unravels.

Installation:

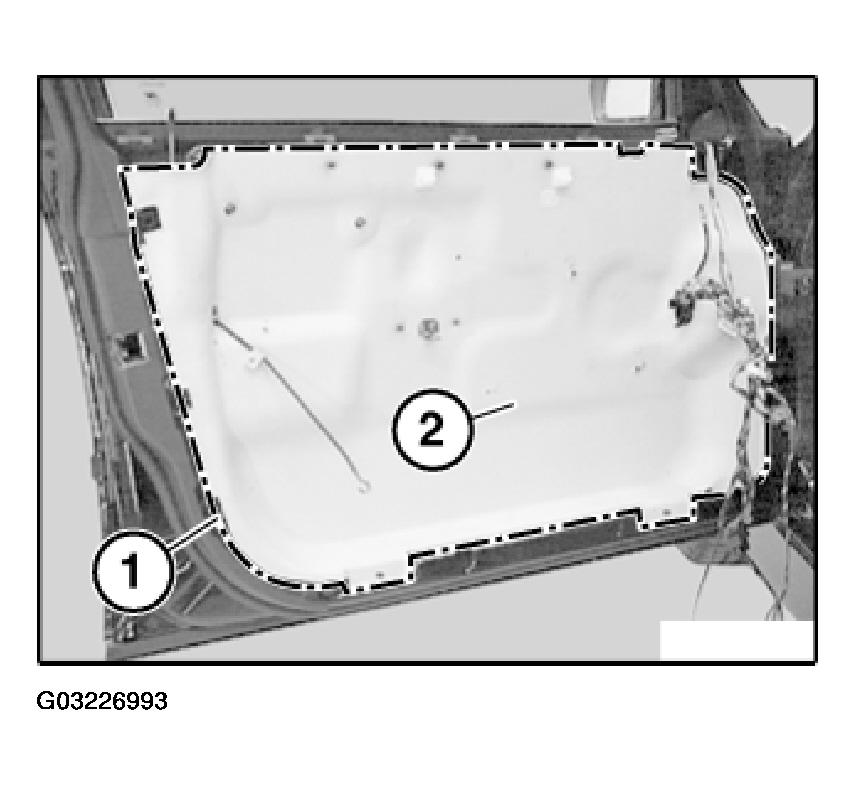

Lay 6 mm dia. butylene tape for sealing all around sound insulation/protective mat.

Fig 14: Installing Sealing All Around
G03226993

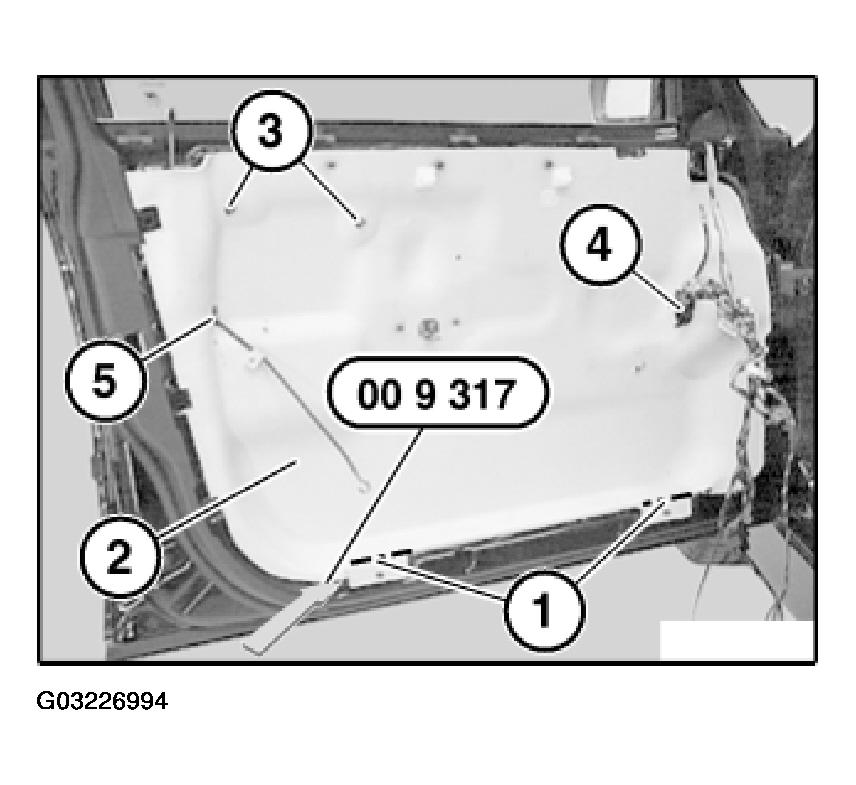

Using special tool 00 9 317 (trim panel wedge), lever out bonding (1) of sound insulation/protective mat (2).

Carefully pull sound insulation/protective mat approx. 15 cm off stud bolts (3).

Feed wiring harness (4) and cable (5) out of sound insulation/protective mat.

Fig 15: Identifying Wiring Harness And Cable Out Of Sound
G03226994

Installation:

Attach sound insulation/protective mat to a stud bolt for securing airbag.

Feed in wiring harness and press rubber grommet through sound insulation/protective mat.

Seal cable penetration with butylene tape.

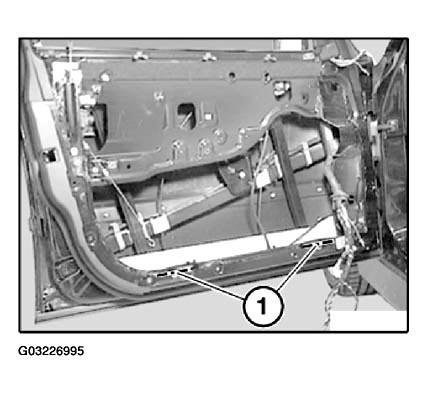

NOTE: Position of butylene tape (1) on inner door plate.
Fig 16: Positioning Of Butylene Tape On Inner Door Plate
G03226995

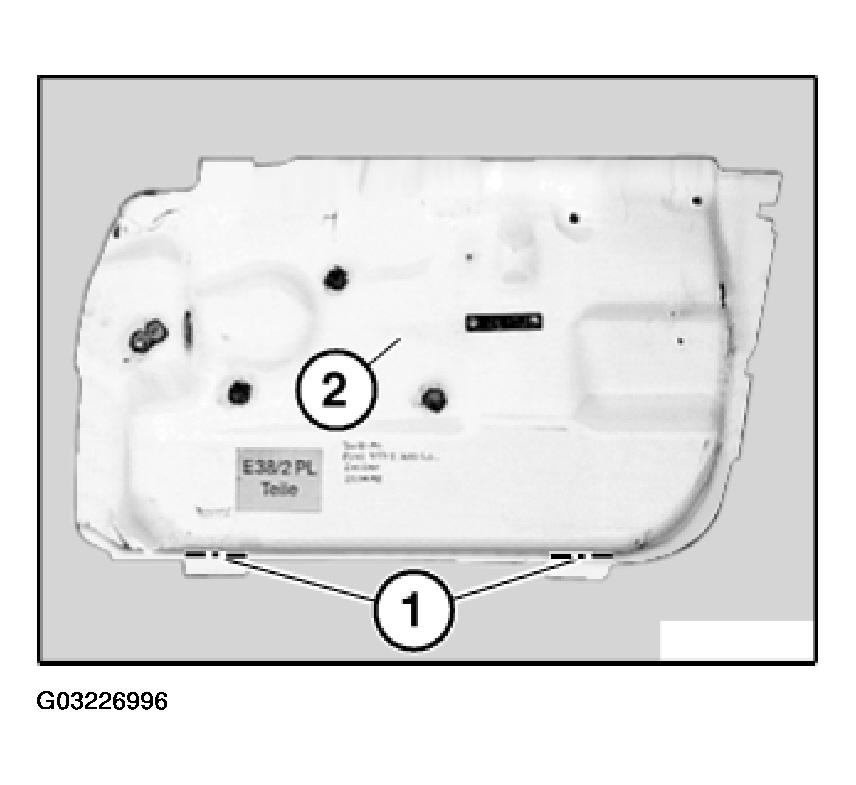

NOTE: Position of butylene tape (1) on sound insulation/protective mat (2).
Fig 17: Positioning Of Butylene Tape On Sound Insulation/Protective Mat
G03226996
CAUTION: When working with adhesive cleaners in enclosed rooms: Ensure room is well ventilated. The adhesive areas must be dry and free from dust and grease. After cleaning, do not touch the adhesive areas with bare hands.

If necessary, clean the specified adhesive area with adhesive cleaner.

Air drying time: 1 minute.

Lay butylene tape with a diameter of 6 mm (sourcing reference: BMW Parts Service) in specified adhesive area.

Heat butylene tape (hot air blower) and firmly press down sound insulation/protective mat in specified adhesive area.

Contact pressure with hand roller: approx. 30 N/cm2

Manual contact pressure: approx. 10 N/cm2

NOTE: Firm thumb pressure has approx. 50 N/cm2
