51 33 000 Removing and installing electric window regulator in left or right front door

Version with side airbag in front door:

Removing and installing airbag module on left or right front door, refer to AIR BAG RESTRAINT SYSTEMS .

Disconnect door handle and remove.

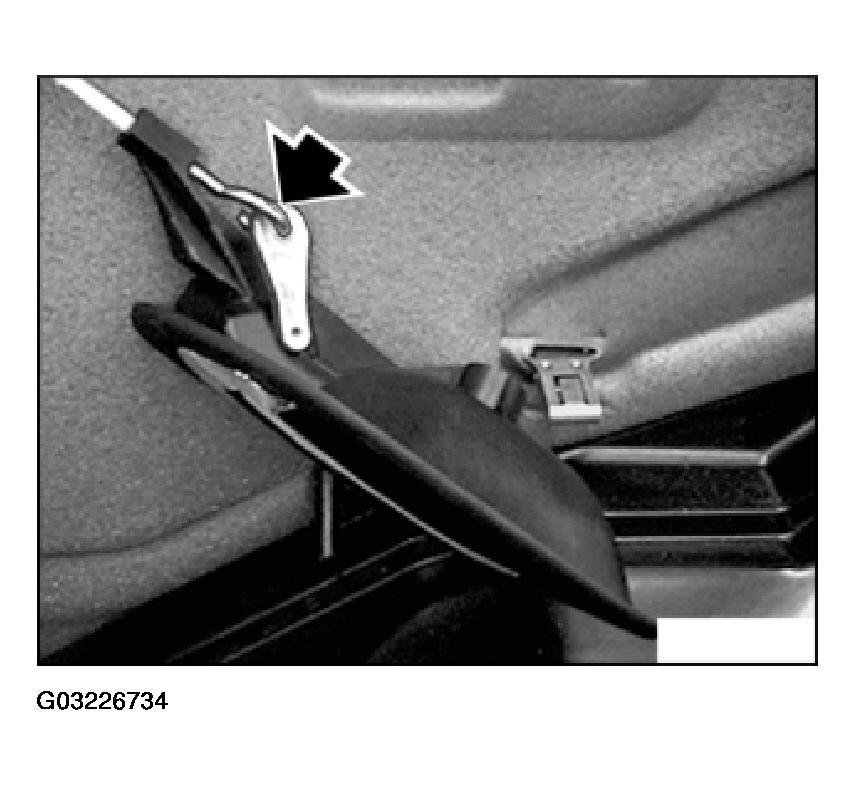

Fig 1: Disconnecting Door Handle

Press down connector fastener, slide lever downwards and remove connector (1) (loudspeaker).

Unfasten screws and remove loudspeaker box (2).

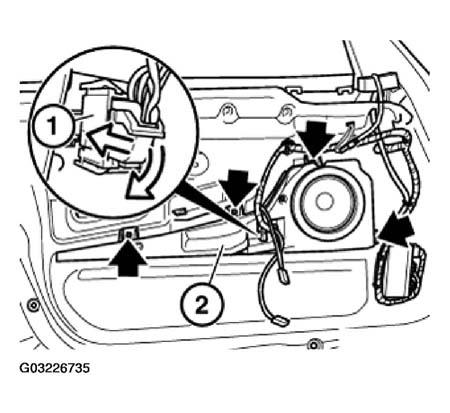

Fig 2: Removing Loudspeaker Box

Unlock connector (1) and remove. Unfasten screws (3) and remove control unit (4).

Cut through cable connector and remove cable holder (2) (expanding rivets).

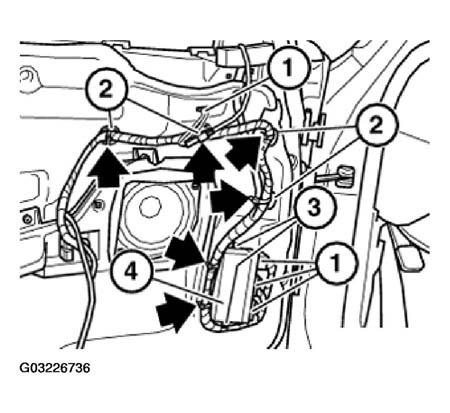

Fig 3: Cut Through Cable Connectors And Remove Cable Holder (2) (Expanding Rivets)

Completely remove acoustic insulation.

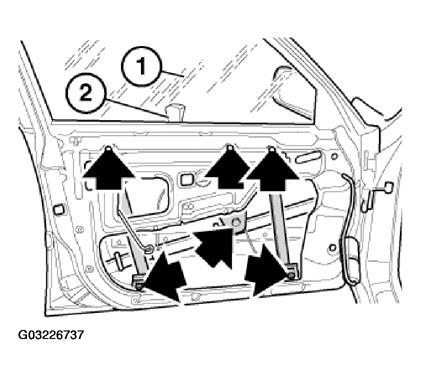

Lift door window (1) upwards and wedge into place with wooden chock (2).

Remove connector from window regulator drive unit.

Unfasten screws (only loosen lower 3 screws) and remove complete cable on window regulator.

Fig 4: Removing Connector From Window Regulator Drive Unit

Installation:

Install window regulator in locating bracket and install all screws loose.

Tighten down screws (1) and (2).

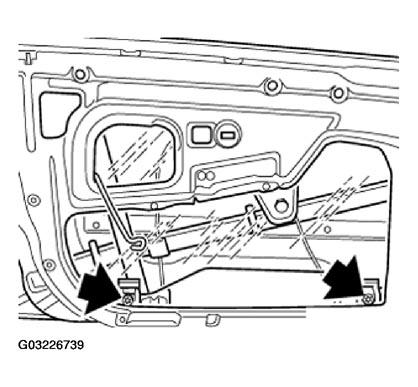

Fig 5: Tighten Down Screws (1) And (2)

Installation:

Installing door window in clamps of window regulator and adjusting door window, refer to 51 32 154 ADJUSTING DOOR WINDOW GLASS, FRONT LEFT OR RIGHT (PROTECTION) .

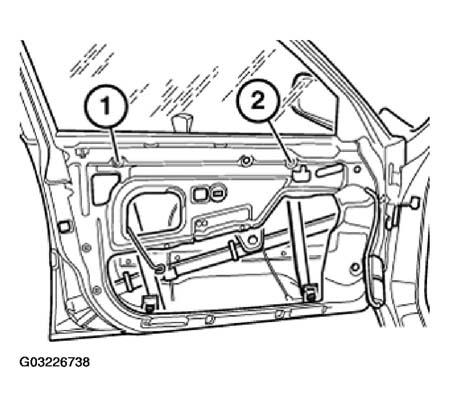

Fig 6: Installing Door Window In Clamps Of Window Regulator

Installation:

Lower door window down to stop.

Tighten down screws (3) and (4).

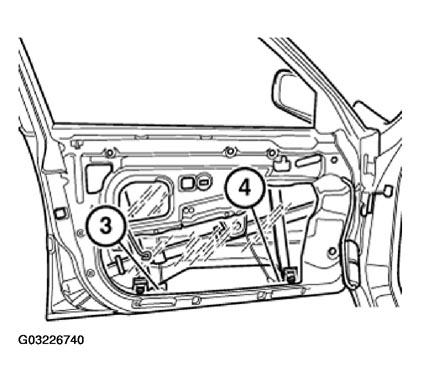

Fig 7: Tighten Down Screws (3) And (4)

Installation:

Close door window firmly.

Tighten down screws (5) and (6).

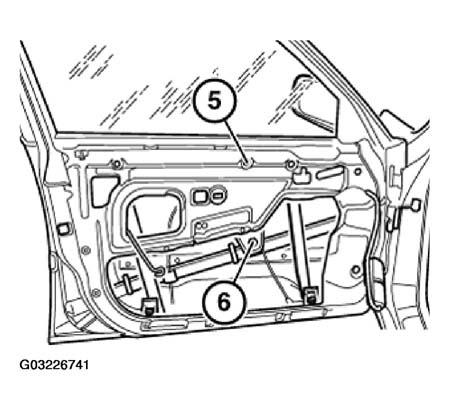

Fig 8: Tighten Down Screws (5) And (6)
