51 11 701 Replacing left or right bracket for front bumper
(Bumper removed).
Installation:
If necessary, mark position of bracket on body.

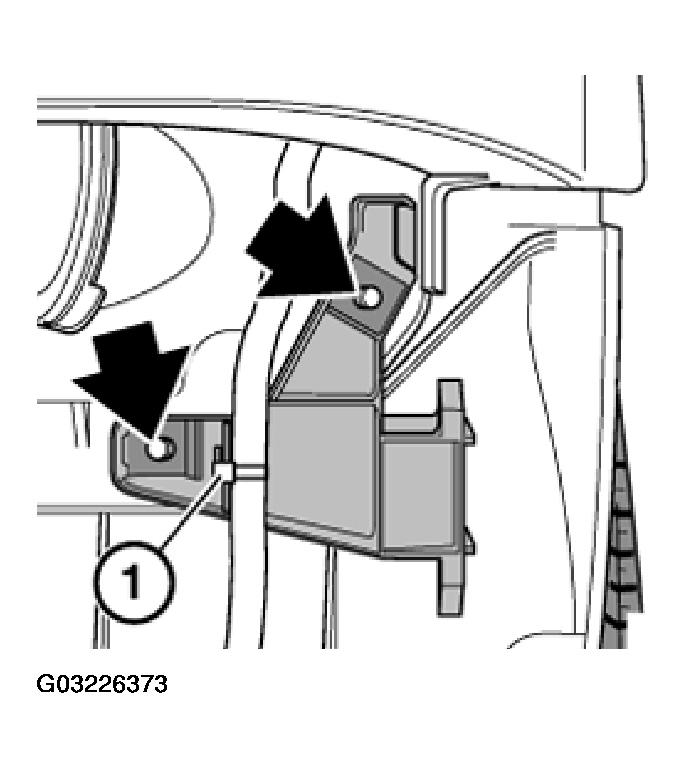

Cut through cable connector (1). Unfasten screws on wheel arch and remove bracket.
Installation:
When exchanging bracket, adjust dimensions (A) and (B). Dimension (B) is measured vertically downwards at distance (C) from side panel.
- 28 ... 29 mm.
- 58 ... 59 mm.
- 104 mm.
