Right Side:

Unlock and open flap.

Release expansion rivets (1) and remove flap.

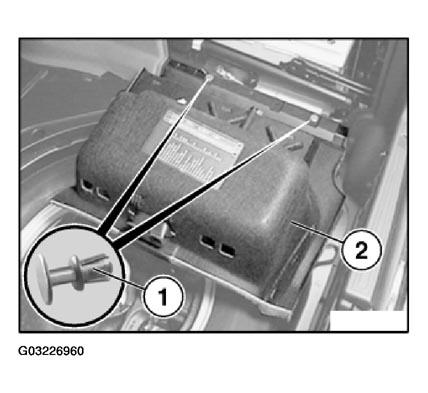

Fig 1: Releasing Expansion Rivets

G03226960
