Hydraulics Diagram

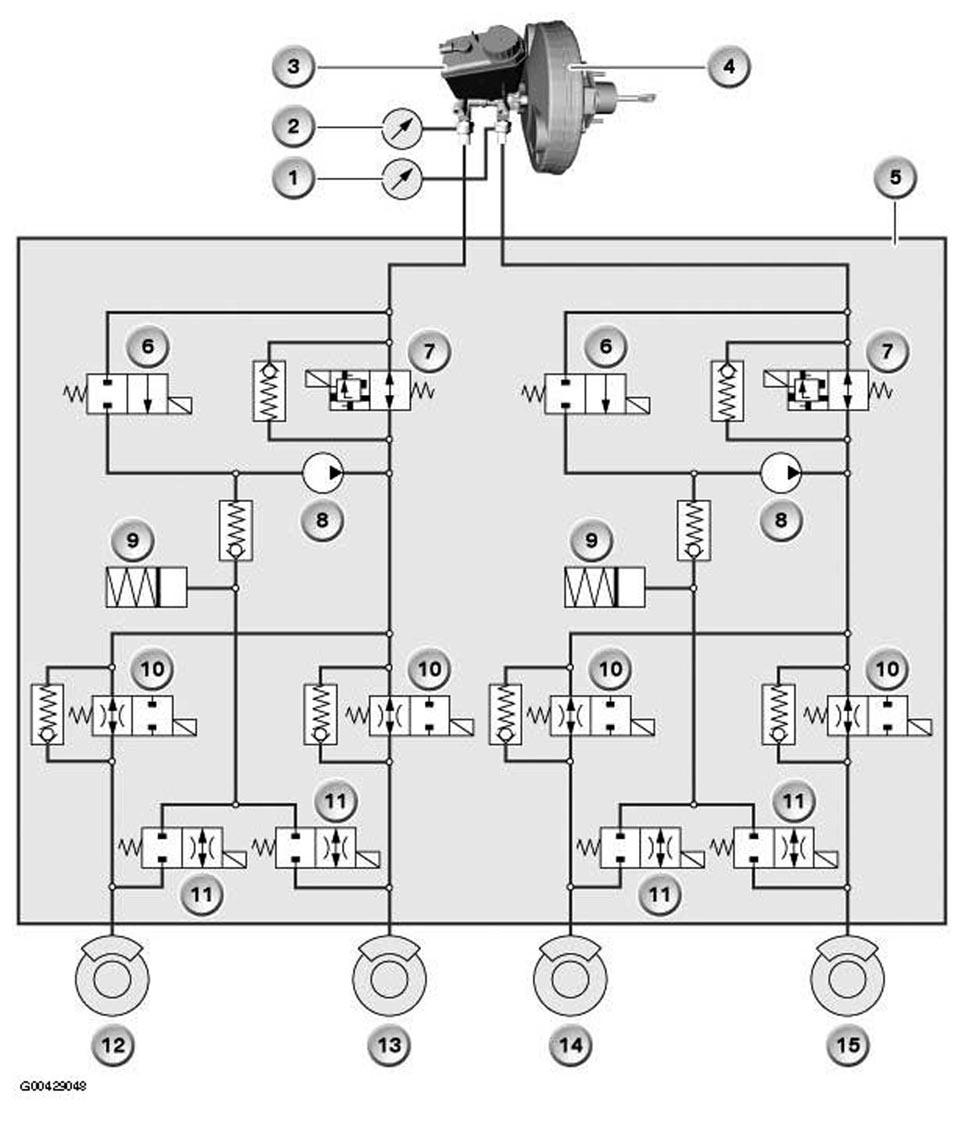

HYDRAULICS DIAGRAM LEGEND
| Index | Explanation | Index | Explanation |
|---|---|---|---|
| 1 | Brake pressure sensor 1 (front-axle brake circuit) | 2 | Brake pressure sensor 2 (rear-axle brake circuit) |
| 3 | Expansion tank | 4 | Tandem-brake master cylinder |
| 5 | DSC hydraulic unit | 6 | Intake valve |
| 7 | Switchover valve | 8 | Return pump (pump element for front-axle brake circuit and rear-axle brake circuit) |
| 9 | Low pressure accumulator | 10 | Inlet valve |
| 11 | Outlet valve | 12 | Wheel brake, rear left |
| 13 | Wheel brake, rear right | 14 | Wheel brake, front left |
| 15 | Wheel brake, front right |
