Installation Location

The two brake pressure sensors are installed on the tandem-brake master cylinder in the pressure connection to the front-axle brake circuit and to the rear-axle brake circuit.

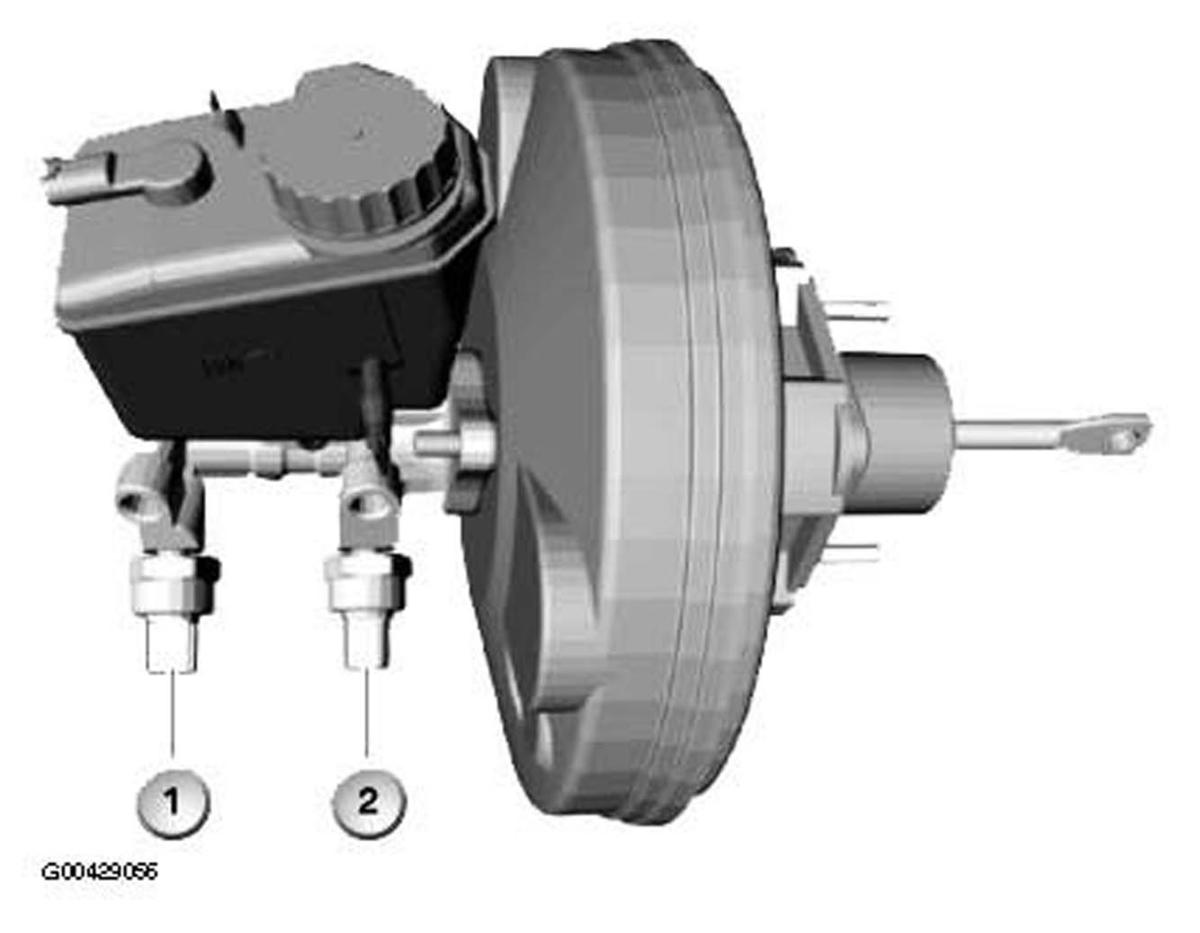

Fig 1: Locating Brake Pressure Sensors
G00429056Courtesy of BMW OF NORTH AMERICA, INC.
BRAKE PRESSURE SENSOR LEGEND

Index Explanation Index Explanation
1 Brake pressure sensor 1 (rear-axle brake circuit) 2 Brake pressure sensor 2 (front-axle brake circuit)
