E85 - System Overview, DSC Mk60: Input/Output

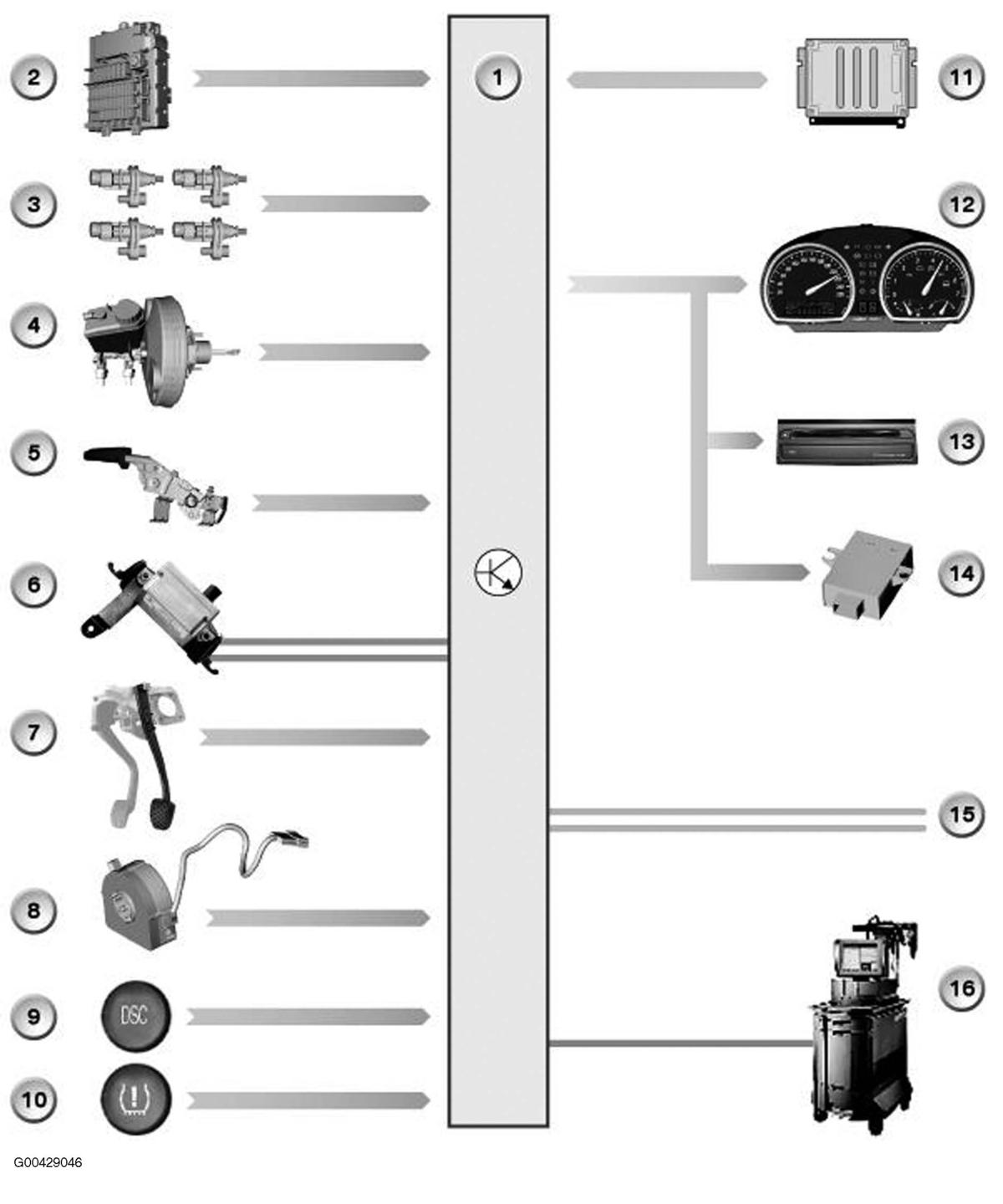

INPUTS/OUTPUTS LEGEND
| Index | Explanation | Index | Explanation |
|---|---|---|---|
| 1 | DSC hydraulic unit (comprising DSC control unit and hydraulic unit) | 2 | Electrical distributor with terminal 30 (double) and terminal 15 |
| 3 | 4 wheel speed sensors | 4 | Tandem-brake master cylinder with 2 brake pressure sensors and brake fluid level switch |
| 5 | Parking brake warning switch | 6 | DSC sensor |
| 7 | Brake light switch | 8 | Steering-angle sensor |
| 9 | DSC button | 10 | RPA button |
| 11 | Digital engine electronics DME | 12 | Instrument cluster |
| 13 | Navigation system | 14 | Control unit for folding exterior mirro |
| 15 | PT CAN | 16 | BMW diagnosis system |
