System Components: Monitor

The DISplus uses a 15" TFT (Thin Film Transistor) monitor. It has a pressure sensitive touch screen controller to direct the cursor movement.

The monitor is attached to the DISplus by a 15' cable that allows it to be used either on the swivel stand or remotely, e.g. inside of a vehicle.

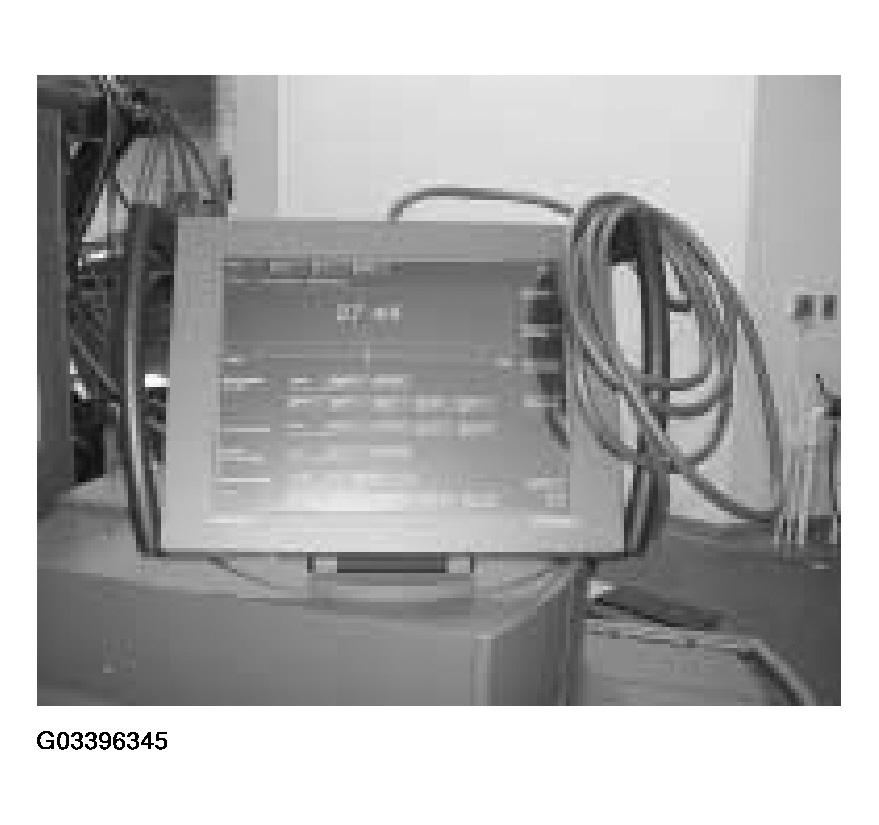

Fig 1: Identifying Monitor
G03396345
