Diagnostic Head

The DISplus uses a Diagnostic Head similar to the MoDiC III as the communication link between the DISplus and the vehicle electronics.

The Head receives operating power when the diagnosis cable is connected to the vehicle.

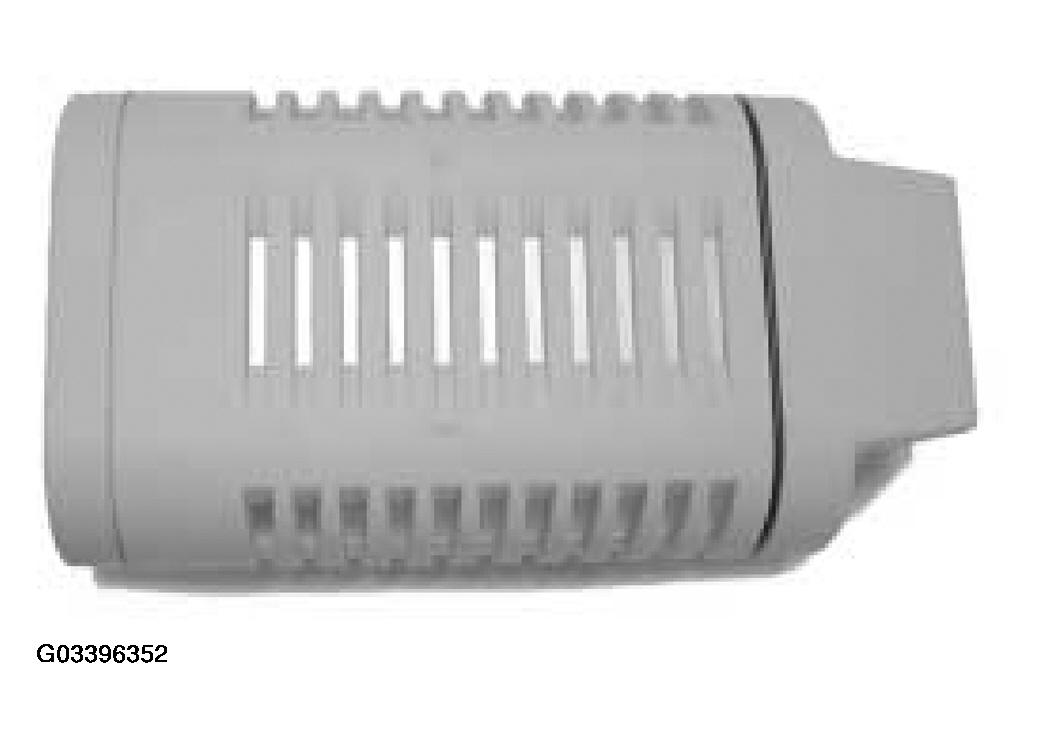

Fig 1: Identifying Diagnostic Head

Communication between the DISplus and the Head can occur two ways:

• Radio frequency (maximum 30 m distance)
• Hard wired to the network or DISplus

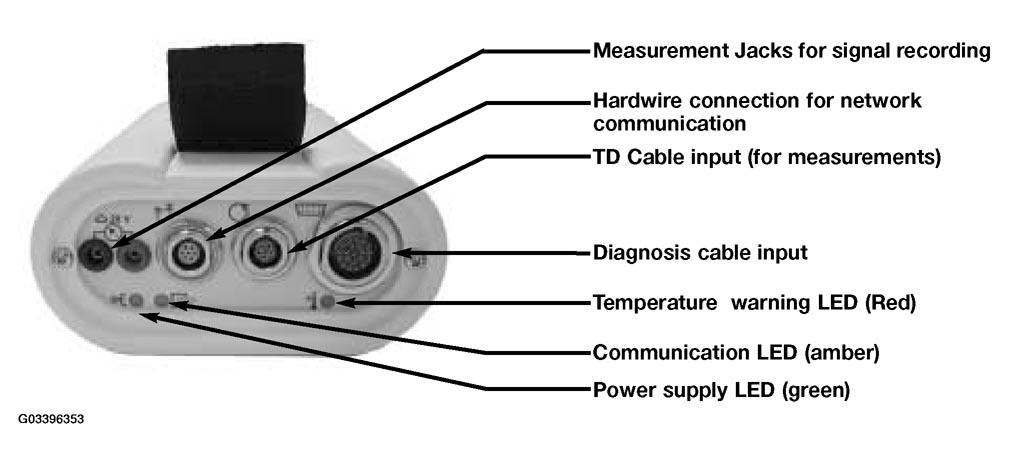

  Fig 2: Identifying Diagnosis Cable Input

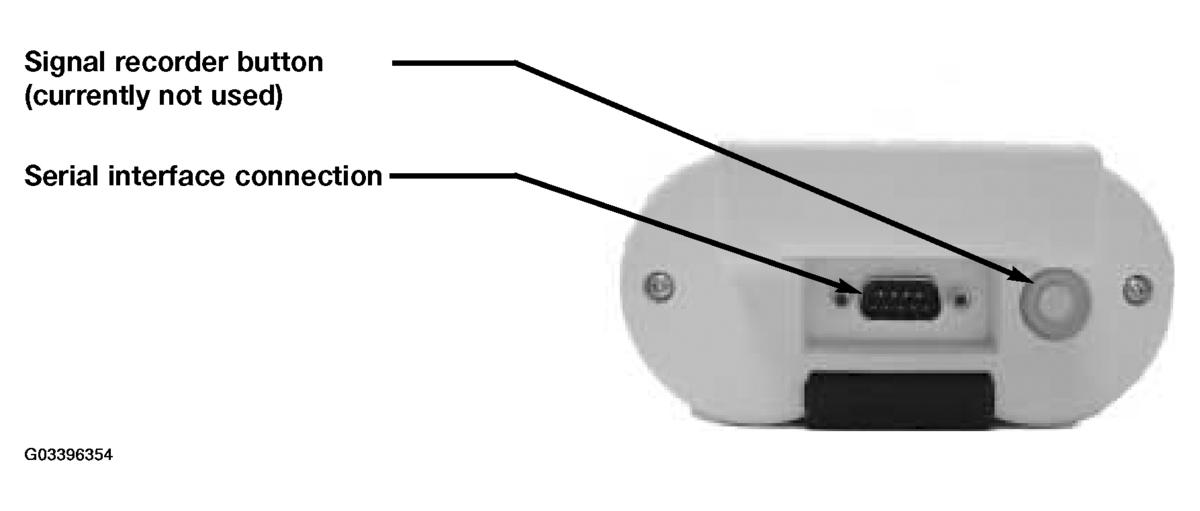

  Fig 3: Identifying Signal Recorder Button
