Additional Test Cables

There are additional test cables connected to the rear of the DISplus on the measurement system board. The ends of the cables are color-coded for easy identification.

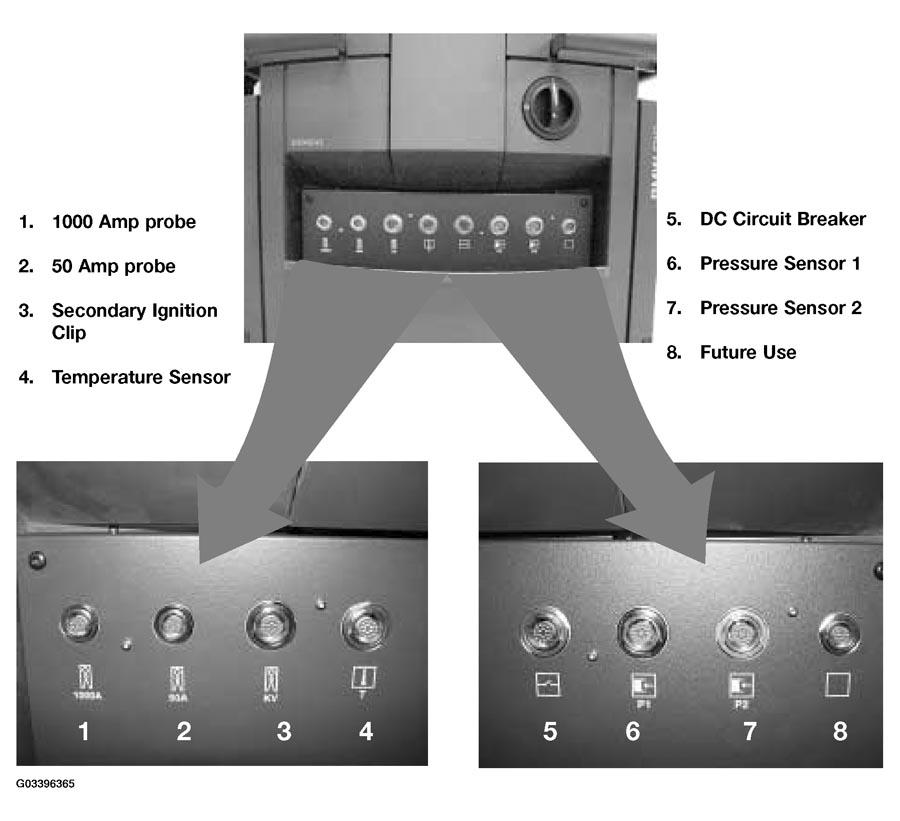

Fig 1: Identifying Additional Test Cable Sockets
G03396365
