Preset Measurements

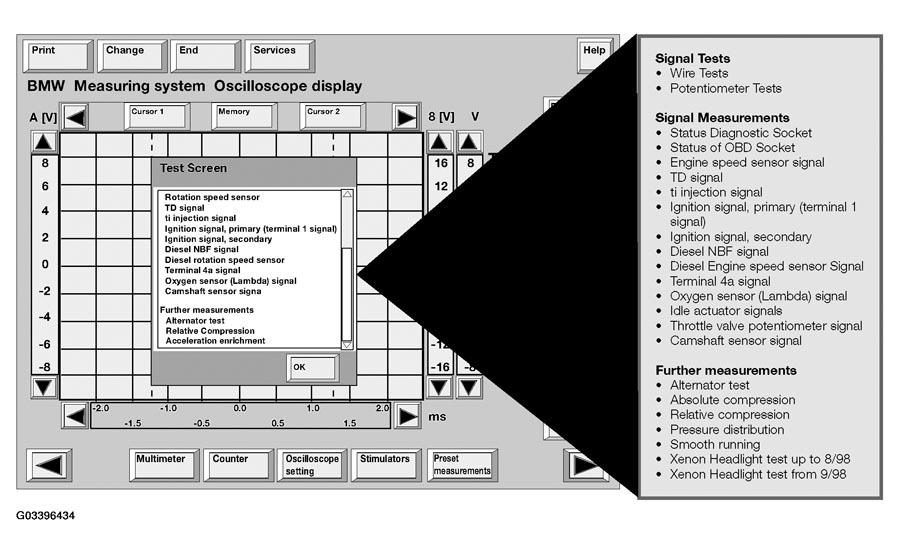

The preset measurements provide an easy method of testing several commonly measured signals. To enter the presets: Press the "Preset measurements" button on the bottom of the screen. A pop up window will provide several signals to choose from. Selecting the signal and pressing the OK button will automatically configure the oscilloscope to the settings needed to provide the best trace pattern. Many tests also have specialized boxes with additional readings( i.e RPM, system voltage).
For instructions on which cables to use for the preset test, follow the instructions in the "Preset measurements" selection of the "Help" menu.
Since the oscilloscope settings are pre-determined, no changes to the oscilloscope are possible.
