Cursor 1 And 2

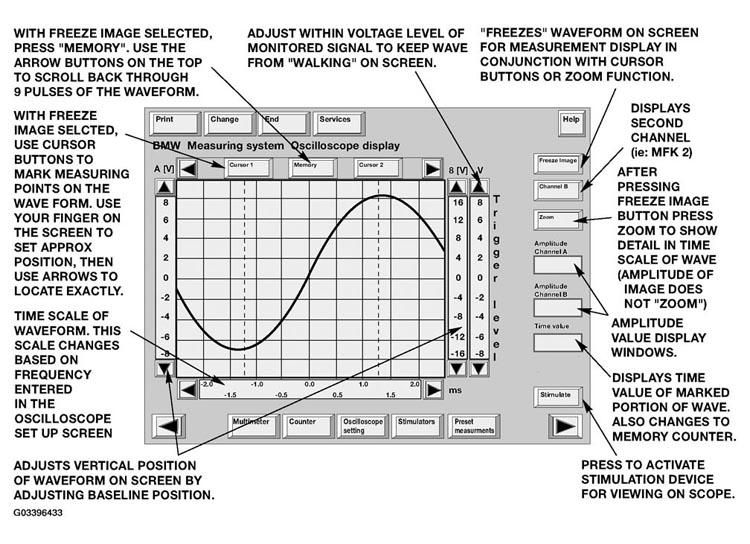

This feature is used to measure the amplitude and time differential of the signal pattern. Activate the feature by pressing the Cursor 1 button first. A vertical line will appear. Roughly position the line by touching the desired measurement point on the screen.
Anywhere the cursor line intersects the signal pattern, the amplitude value at that point will be displayed in a box on the right of the display screen. If both traces of the scope are being used, (both channel A and B) each value will be shown in its own box. A fine adjustment may be made to the cursor line by using the arrow buttons to the left and right of the cursor buttons.
The time differential between two points may be measured if cursor 2 is used. Place the second cursor at the desired measurement point. The time difference between the two cursors will be displayed in the "Time value" box on the right side of the screen.
