Special Functions

Freezes the display with the current test results. Serves the same function as the buttons on the large MFK1 and 2 test leads.

Fig 1: Identifying Hold Screen

The current measured value is constantly monitored. The highest and lowest measured value since the activation of the function is displayed below the actual display.

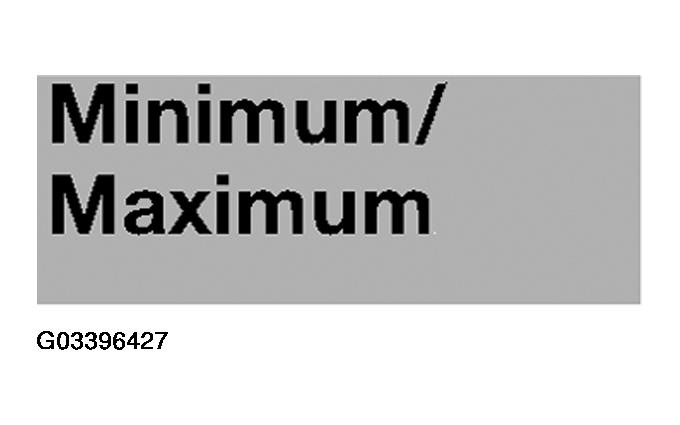

Fig 2: Identifying Minimum/Maximum

System voltage  and engine speed  adds an additional field to the display that measures system voltage and engine RPM along with the original measurement. This feature requires that the diagnostic head be connected.

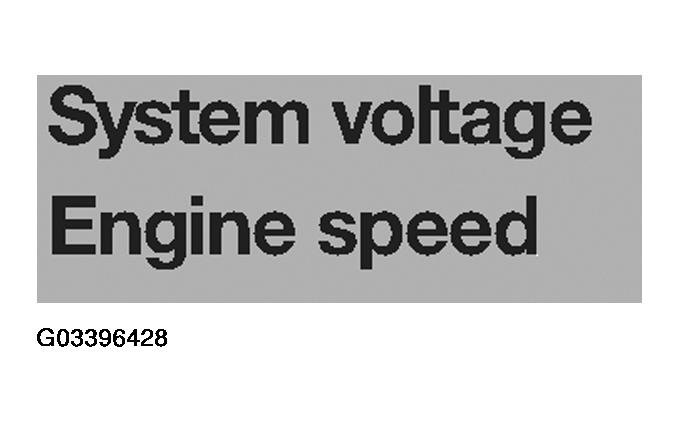

Fig 3: Identifying System Voltage Engine Speed

2nd measurement  splits the main display field into two separate displays. This permits two measurements from separate test leads to be displayed at the same time.

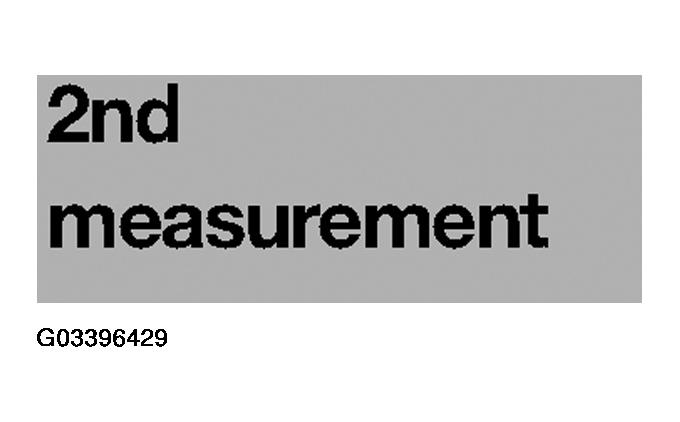

Fig 4: Identifying 2nd Measurement

Stimulate  allows the user to turn on or off the stimulate output function while in the multimeter. This is useful when applying an output signal to a vehicle circuit for testing purposes.

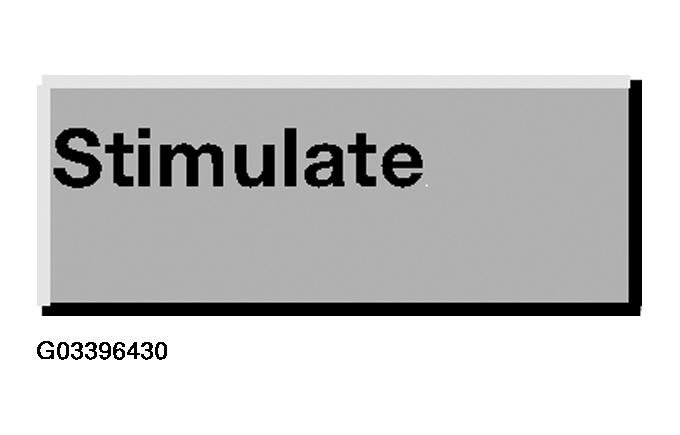

Fig 5: Identifying Stimulate
