Function Buttons (Pull Down Menus)

The Print button allows the user to pull down a menu of print options.

• Shield  prints the entire screen as it is being displayed.
  Fig 1: Identifying Print


  Fig 2: Identifying Shield

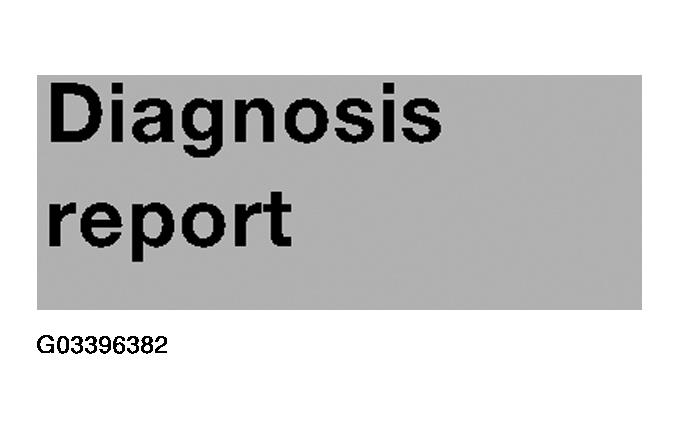

• Diagnosis report  prints the diagnosis report at any time while it is being compiled by the diagnosis program.
  Fig 3: Identifying Diagnosis Report


• Feedback  prints the report entered using the technician feedback report entry screen.
  Fig 4: Identifying Feedback


• Label  permits printing a test code or vehicle coding label. The correct adhesive labels or paper must be used in the network printer. The label printer in the top drawer of the DISplus is no longer used.
  Fig 5: Identifying Label


• Documents  prints the entire reference document (i.e. ETM, Pin Assignment, etc).
  Fig 6: Identifying Document

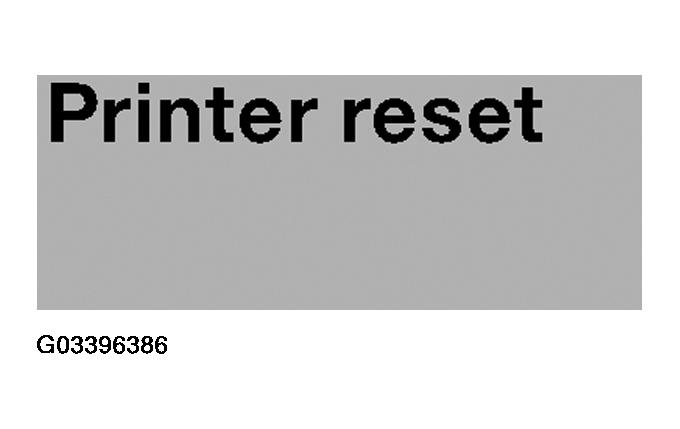

• Printer reset  clears the printer spool of unprinted documents. This helps to speed up the print process by deleting unwanted documents.
  Fig 7: Identifying Printer Reset


• Test code  prints the stored test code on a full sheet of paper.
  Fig 8: Identifying Test Code

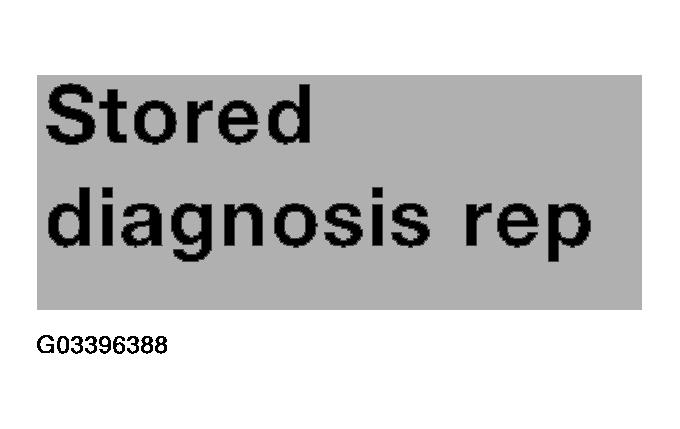

• Stored diagnosis report  prints any diagnosis reports that have been stored but not printed. Once printed, the reports are deleted from memory.

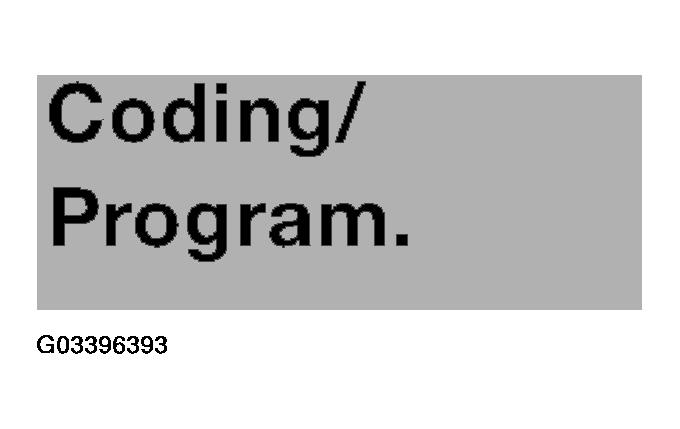

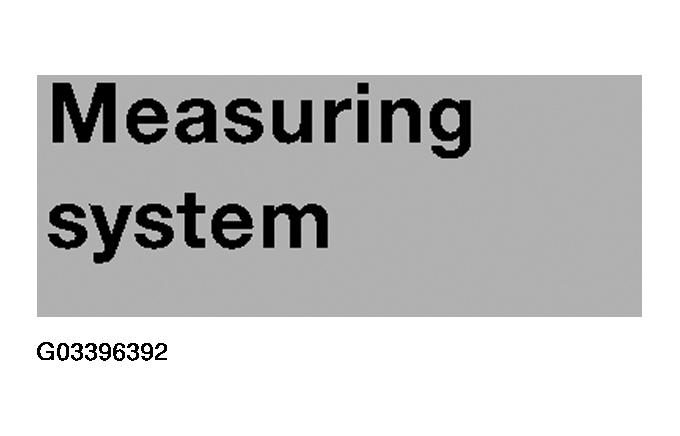

Change  allows the user to switch to other programs installed in the DISplus without returning to the DIS start screen.

Some programs cannot be entered until the task in the current program is finished (i.e. coding completed before returning to diagnosis).

The End  function offers the user several options for stopping a current running program.

• Break  allows the program to be paused or interrupted without losing any information or stored data about the currently running test module. The data may be stored on a floppy disc or the hard drive and can be recalled by selecting the Job  button from the Diagnosis start menu.
  Fig 16: Identifying Break


• Cancel  terminates the running program and returns to the currently running programs start screen i.e. TIS or Diagnosis.
  Fig 17: Identifying Cancel


• Quit  terminates the current running program and returns to the DIS start screen.

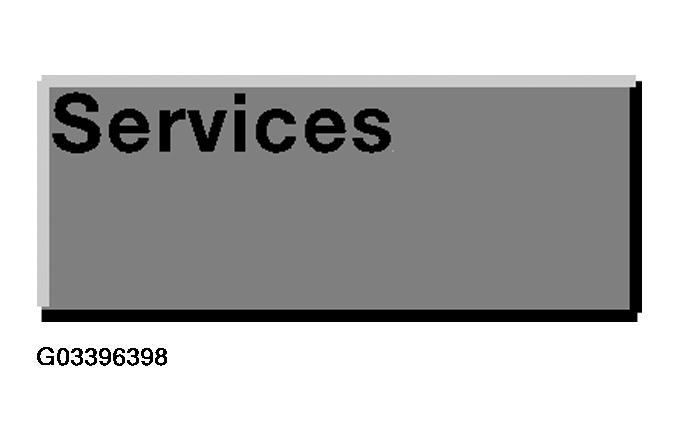

The Services  button offers administration functions as follows:

• Version  displays the current operating software.
  Fig 20: Identifying Version


• The feedback  function allows the user to report back on problems concerning the diagnosis program. An electronic keyboard on the screen is used to type in what the problem is. This information can be printed out and sent to BMW.
  Fig 21: Identifying Feedback


• News  presents a summary of new features or functions available on the installed software version.
  Fig 22: Identifying News

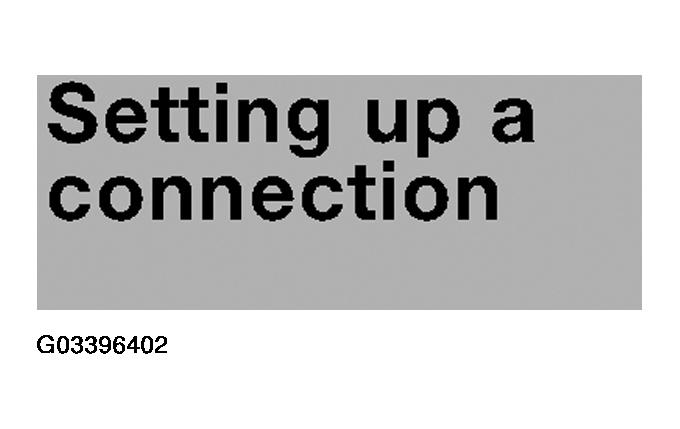

• Setting up a connection  is a shortcut to the administration feature used to connect and disconnect communication with the radio frequency Diagnosis Head.
  Fig 23: Identifying Setting Up A Connection

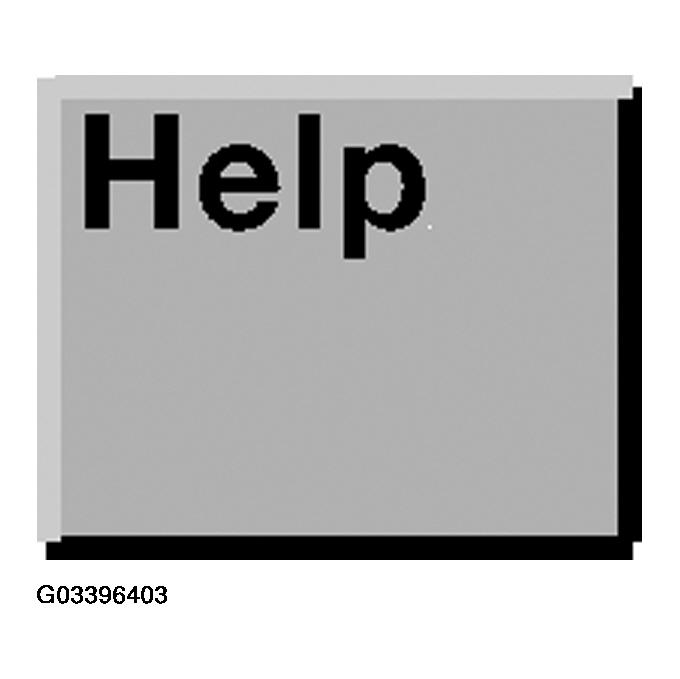

The Help  function is available in all screens and provides the user with help information on the currently running program or function.

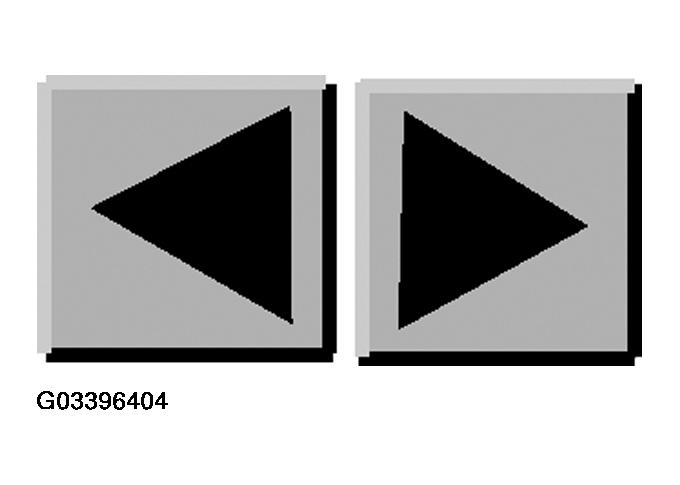

Navigation Buttons:  These buttons serve different functions in the various programs. However, they generally allow the user to page forward or backward in the currently running program.
