TD (RPM Input) Cable

The TD input cable is used for specific Test Modules that require a hard wired RPM input for measurement functions.

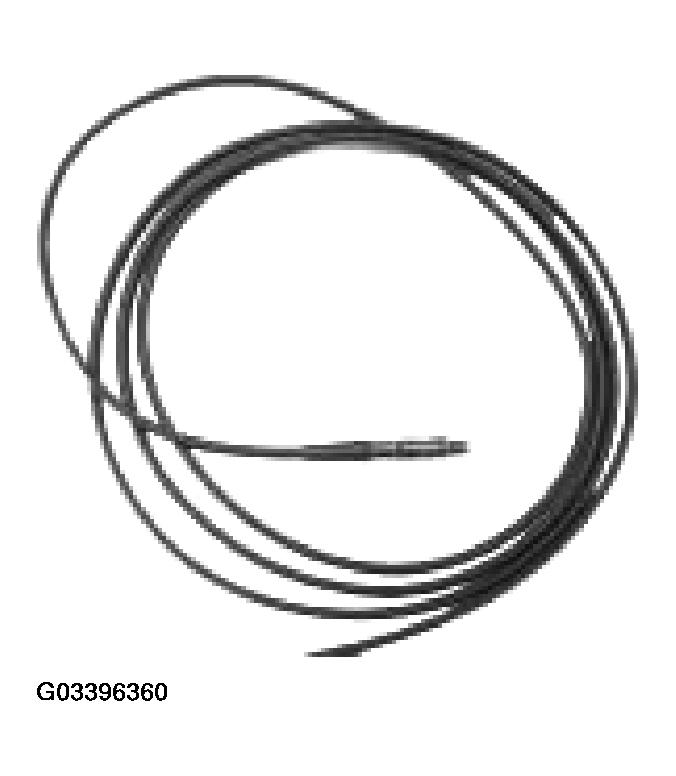

Fig 1: Identifying Input Cable

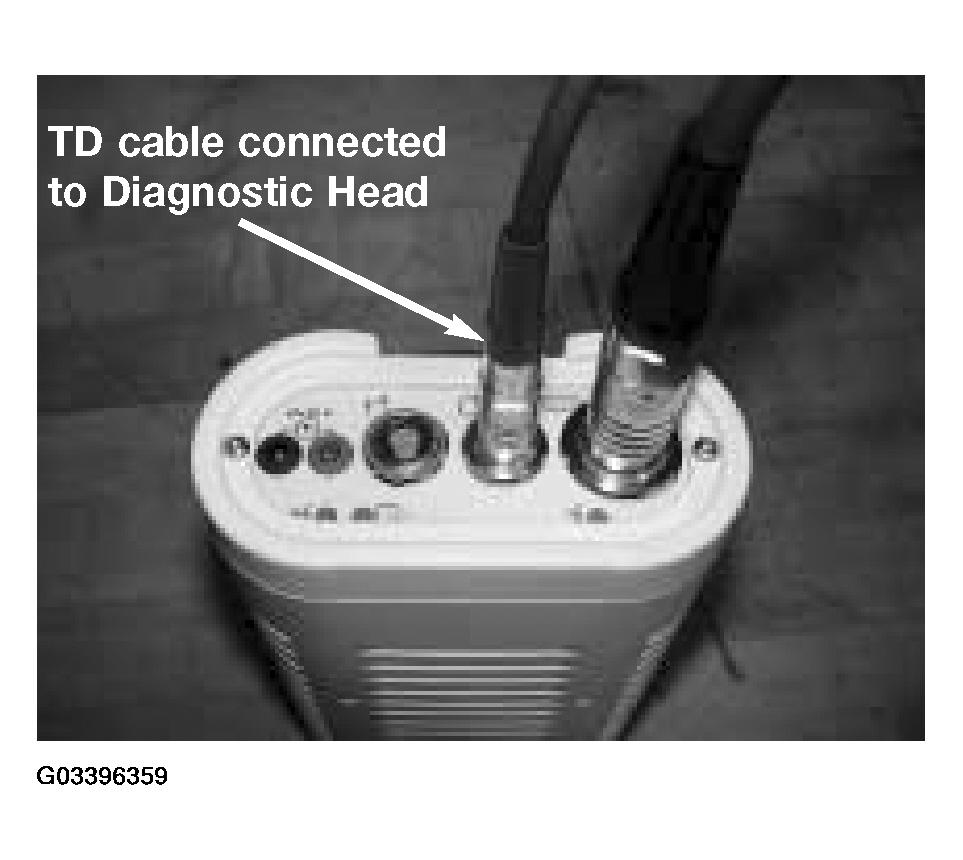

Fig 2: Identifying TD Cable Connected To Diagnostic Head
