System Indicators And ON/OFF Button

After the main power switch has been turned on, the DISplus is powered up by pressing the ON/OFF button on the front panel.

During power up, LED 2 will illuminate. When the process is complete, the System Status LED changes from amber to green.

The fault indicator, LED 3, illuminates amber when there is a fault with the DISplus.

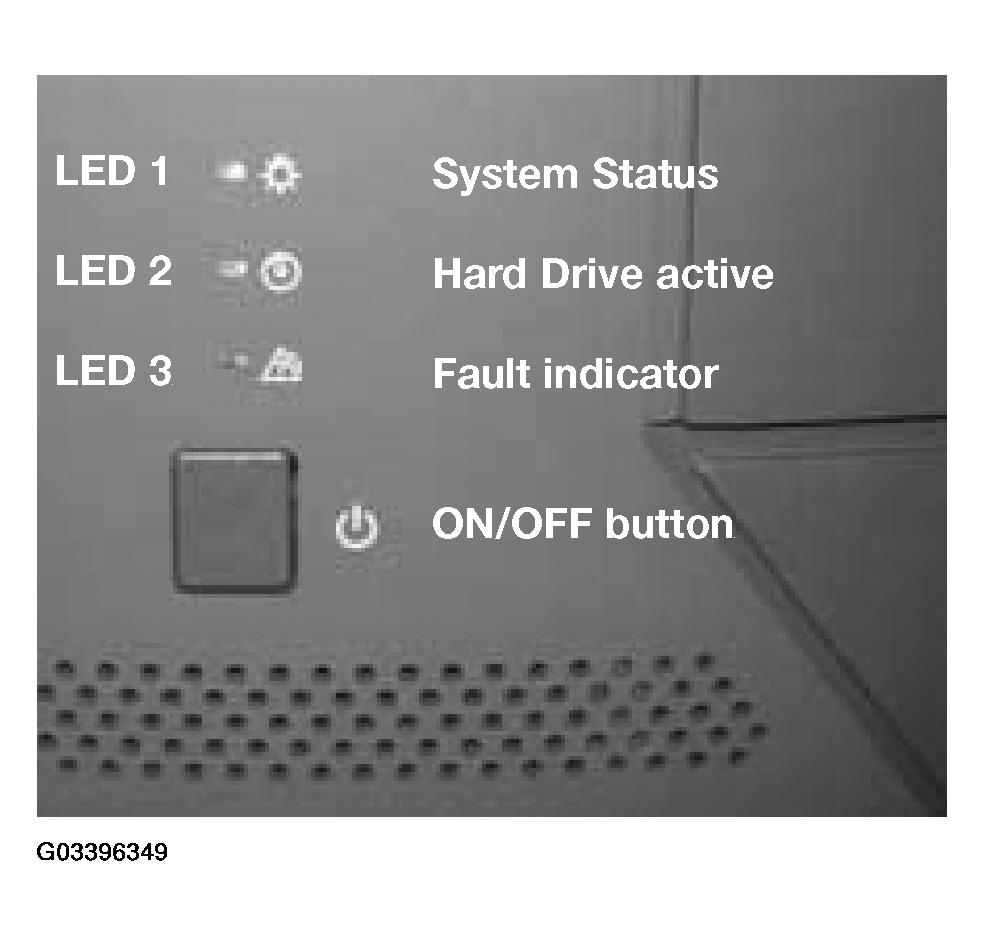

Fig 1: Identifying System Indicators ON/OFF Button
G03396349
