Multi-Function Test Cable-MFK #2 (Four Cable Ends)

MFK 2 is used to measure:

• Voltage - up to 500 Volts
• Frequency
• Period
• Duty Cycle
• Pulse Duration
• Oscilloscope Measurements

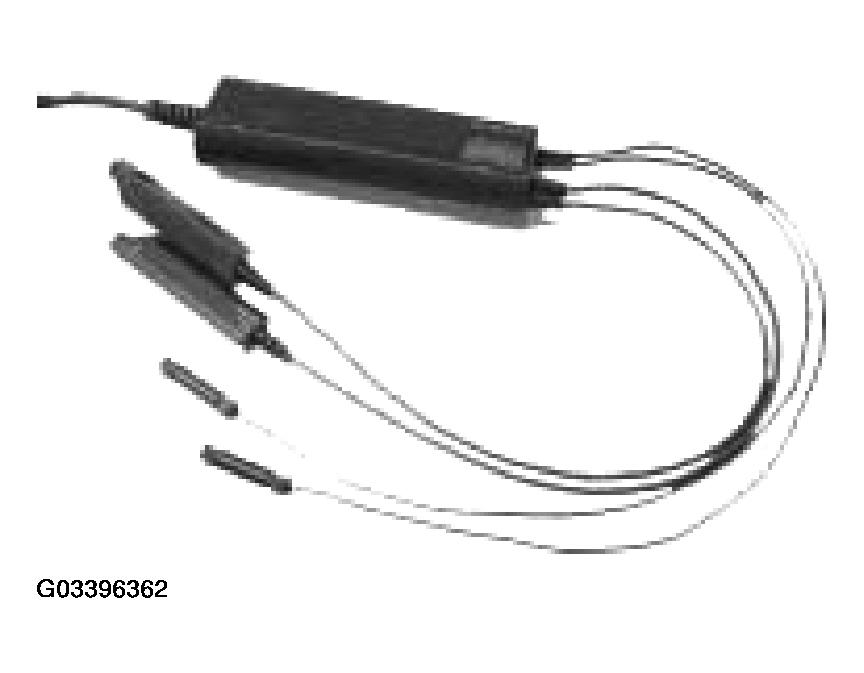

  Fig 1: Identifying Multi-Function Test Cable-MFK #2



Both MFK 1 and MFK 2 can be used for signal outputs from the Stimulate Output function of the Multimeter. On MFK 2, the two large cable ends are for input only (measuring) and the two small ends are for the Stimulate Output function. MFK 1's leads are for both measuring and stimulation.

Both large positive cable ends of MFK 1 and 2 include a button used to hold the measured value on the display screen.

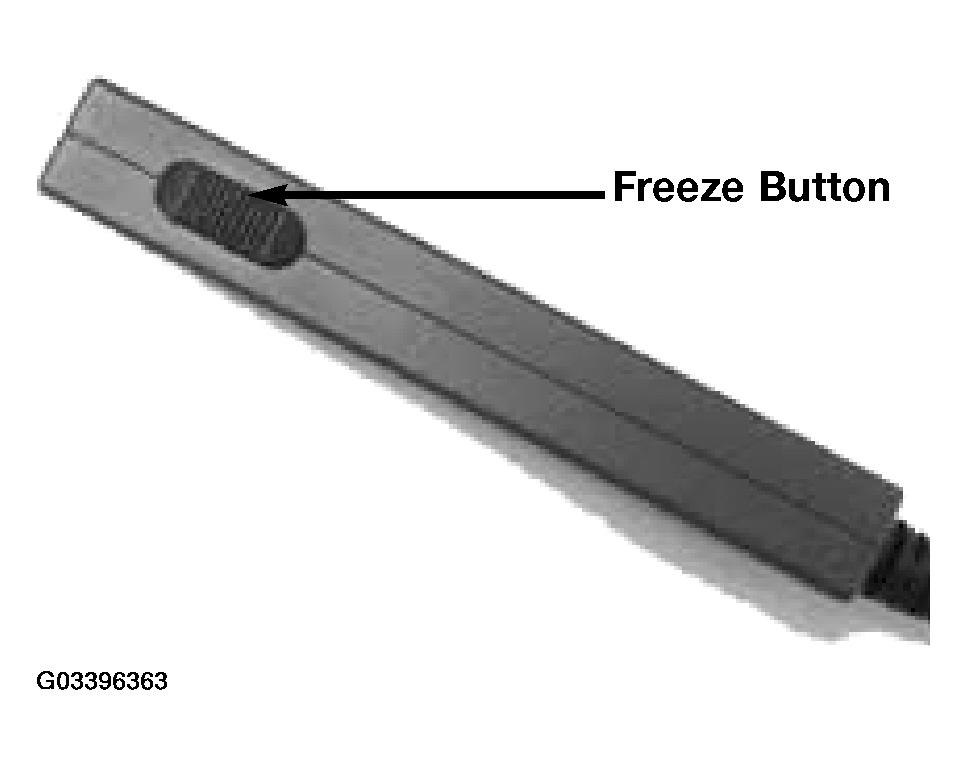

Fig 2: Identifying Freeze Button
