Main Power Switch

The main power switch is located in the upper right hand side, at the rear of the DISplus.

The main switch is turned on first, before turning the DISplus on from the front panel. The System Status LED on the front panel should illuminate amber when the main power has been turned on (see Fig 2 ).

Circuit breakers are located below the DISplus computer. If the unit fails to power-up, check the reset of the circuit breakers before calling for service.

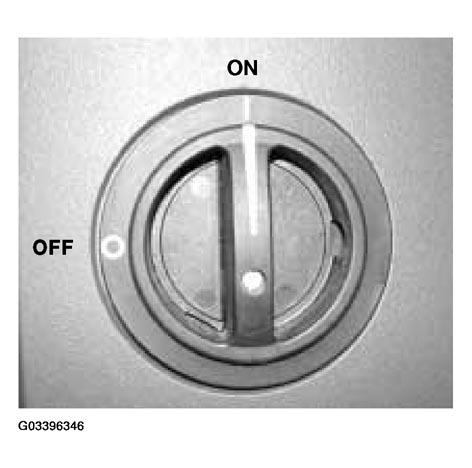

Fig 1: Identifying Main Power Switch

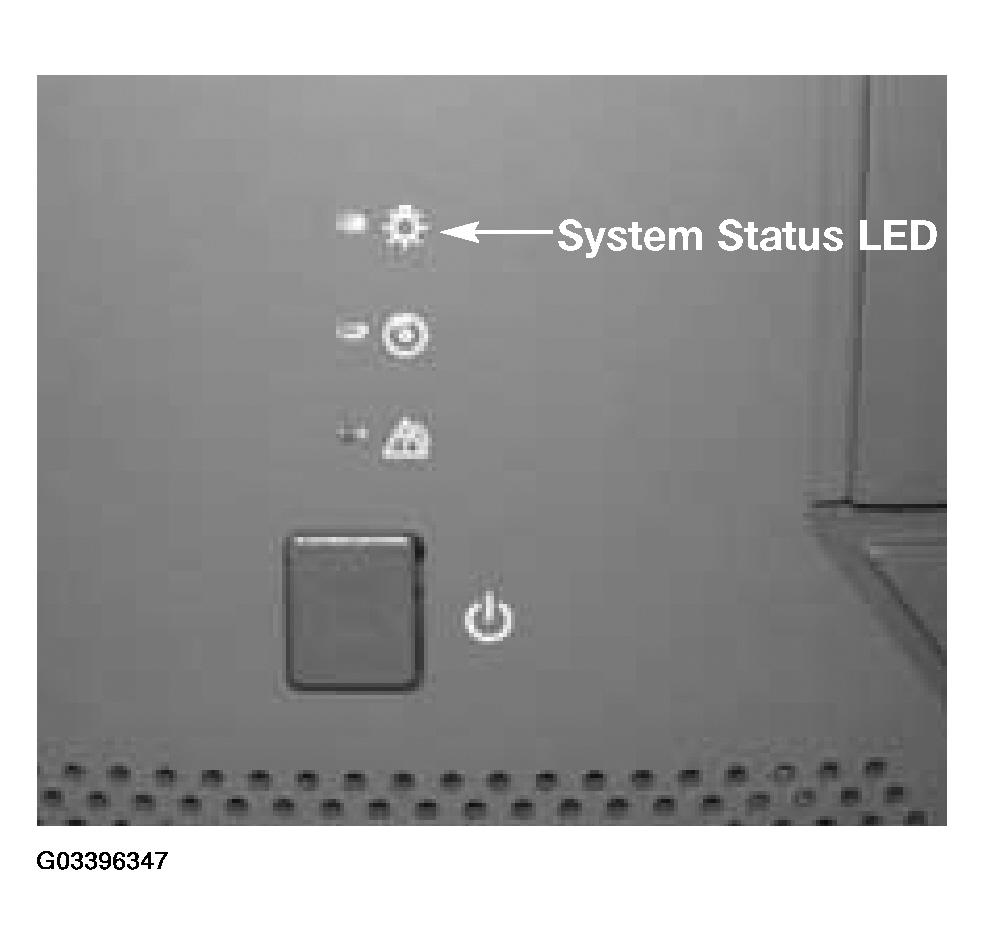

Fig 2: Identifying System Status LED

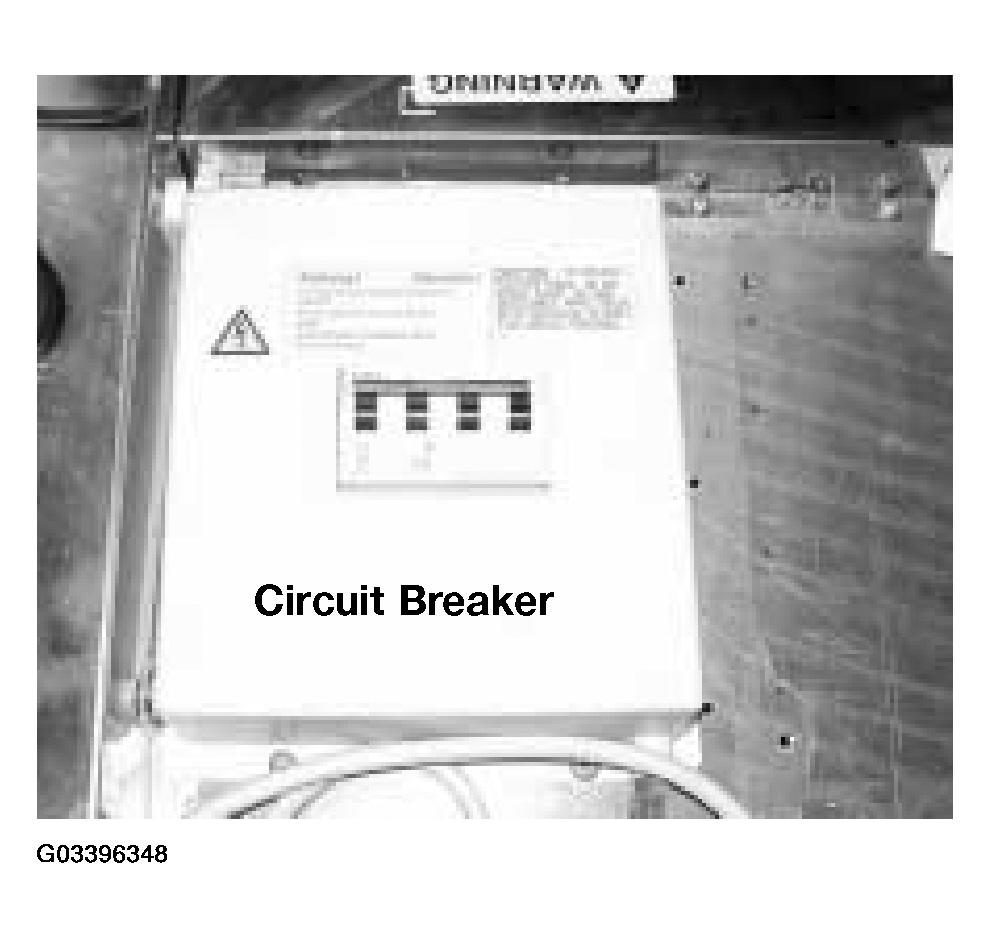

Fig 3: Identifying Circuit Breaker
