Diagnostic Cable

20 and 16 pin cables are provided for connection between the vehicle diagnostic socket and Diagnostic Head.

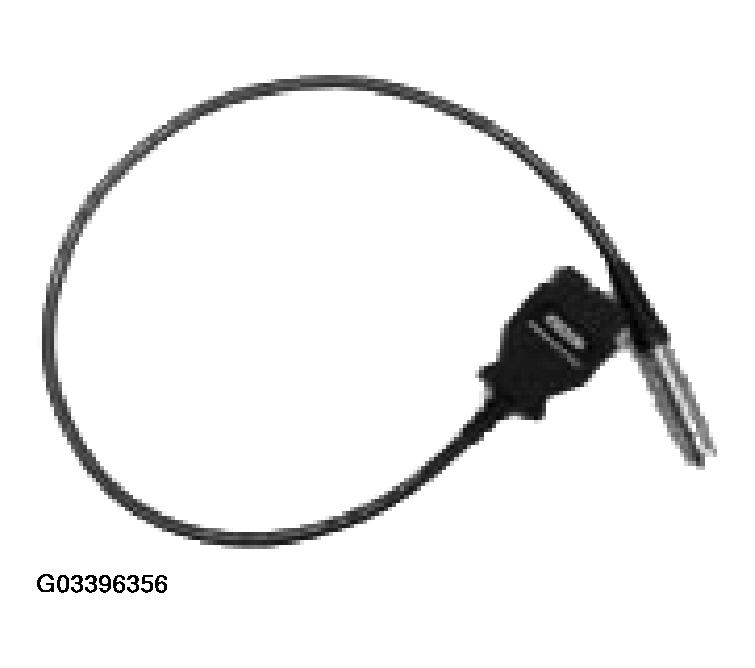

Fig 1: Identifying 16 Pin OBD II Connector
G03396356
Fig 2: Identifying 20 Pin Underhood Connector
G03396357
