Measurement System: Multimeter: Notes

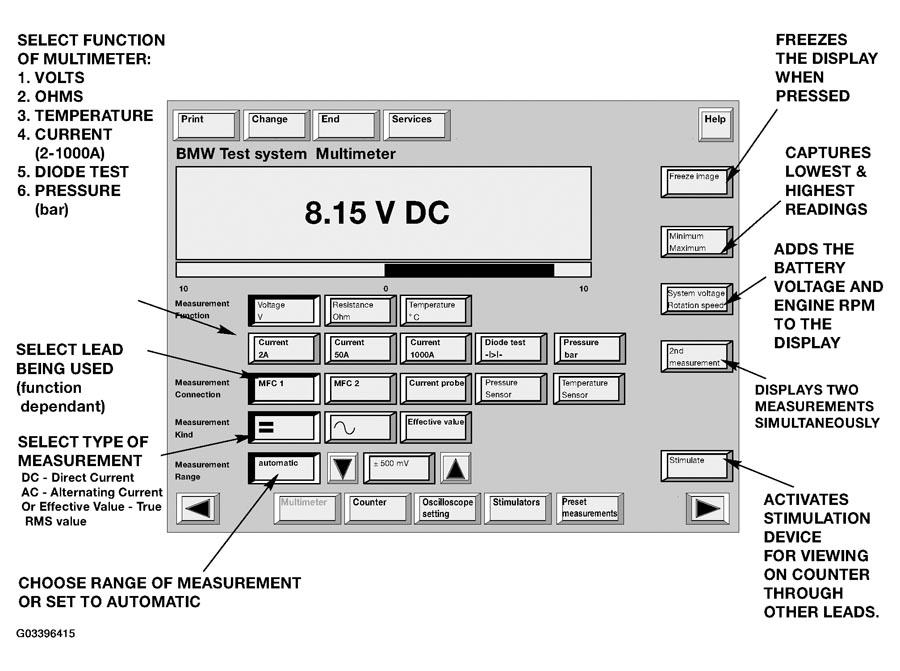

Fig 1: Identifying Multimeter Display Area

All of the multimeter functions are displayed in the display area of the screen. Both numerical and bar-graph test results are shown.

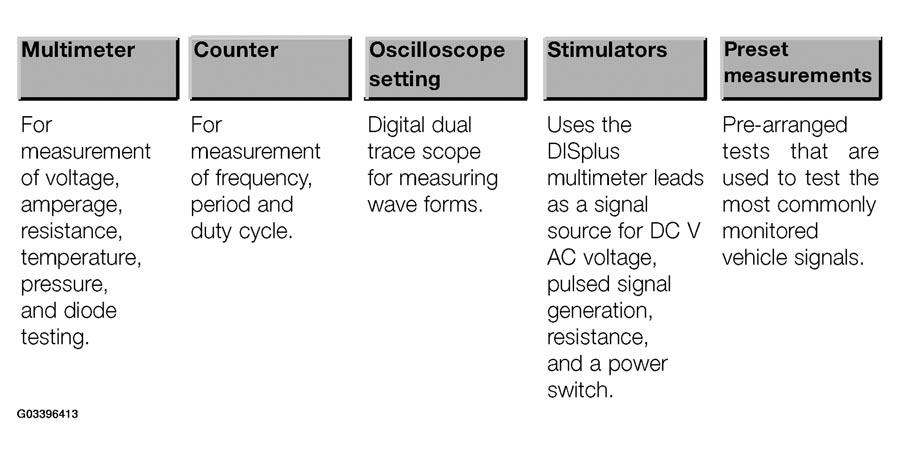

Fig 2: Identifying Multimeter

Once a function is selected, only the available test leads for that function remain highlighted.

Fig 3: Identifying Function Display
