Administration Menu

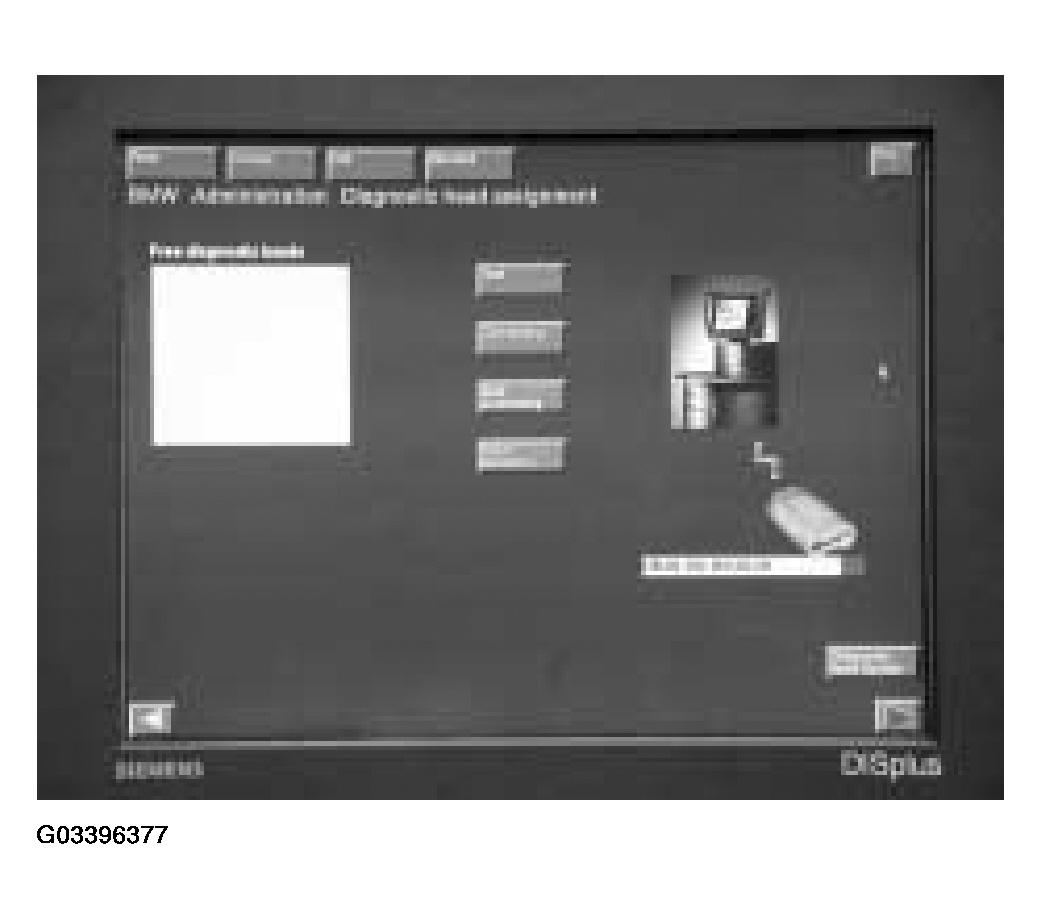

- Diagnosis and Information Systems Once inside the connection setup page there will be a box on the left side called "Free diagnostic heads"
- Any Heads that are powered up and not currently assigned to a DISplus will be found and listed in the box. Each head has its own I/P address for identification to the DISplus.
- With the correct Diagnostic Head identified, press the "Connecting" button to establish the connection.
- Once the radio LAN link is established, the DISplus will only be able to communicate with that head. If the use of another head is desired, press the "Quit Connecting" button from the same page. This breaks the link. Repeat the process for selecting and connecting as previously described.
