12 61 250 Removing and installing/replacing oil temperature switch (M52TU, M54, M56)

Switch off ignition.

Unfasten oil filter cover to enable engine oil in filter to flow back into the oil sump. The procedure is described in 00 00 250 BMW ENGINE OIL SERVICE INCL. SUPPLEMENTARY SERVICE (M54 / M56) .

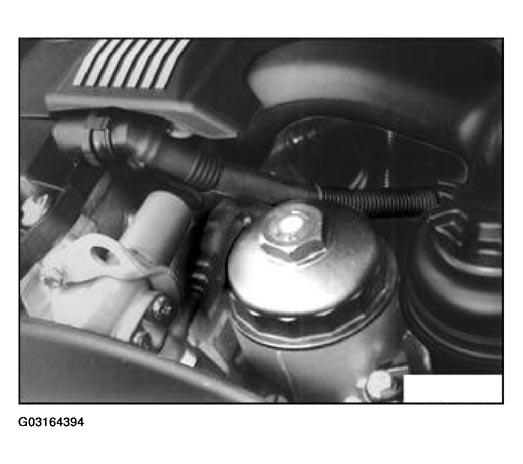

Fig 1: Unfastening Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Location: On base of oil-filter.

NOTE: Figure shows power steering pump supply tank removed.

Disconnect plug connection (1).

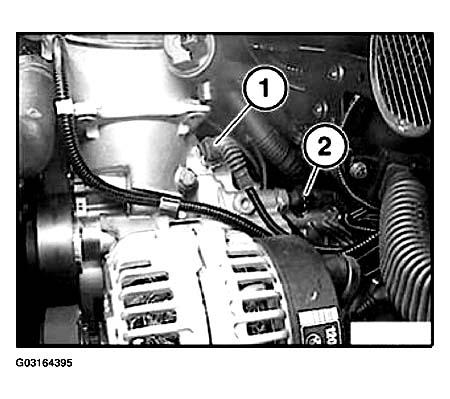

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: A few drops of oil escape when the oil temperature switch is released. Catch residual oil with cleaning cloth and dispose of oil.

Release oil temperature switch.

Installation:

Tightening torque: 27 N.m.
