Instrument Cluster Warning Indicators

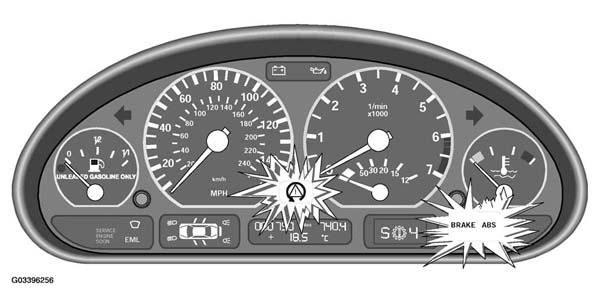

Three warning indicator lamps are arranged in the instrument cluster:
- DSC lamp: Indicates fault in DSC or system disabled by the switch.
- ABS lamp: Indicates a fault in the ABS system.
- ABL "BRAKE" lamp: This lamp is a general brake warning and illuminates two different colors.
- Red indicates low brake fluid or hand brake engaged.
- Yellow indicates DSC/ABS fault or system disabled by the switch.
The DSC and yellow ABL lamp are controlled by the MK60 DSC III control unit via the CAN bus. The ABS lamp is controlled directly by the MK60 via hardwire.
Hand brake Switch
The hand brake switch is an input to the MK60 DSC to cancel MSR regulation.
