Plausibility With BLS

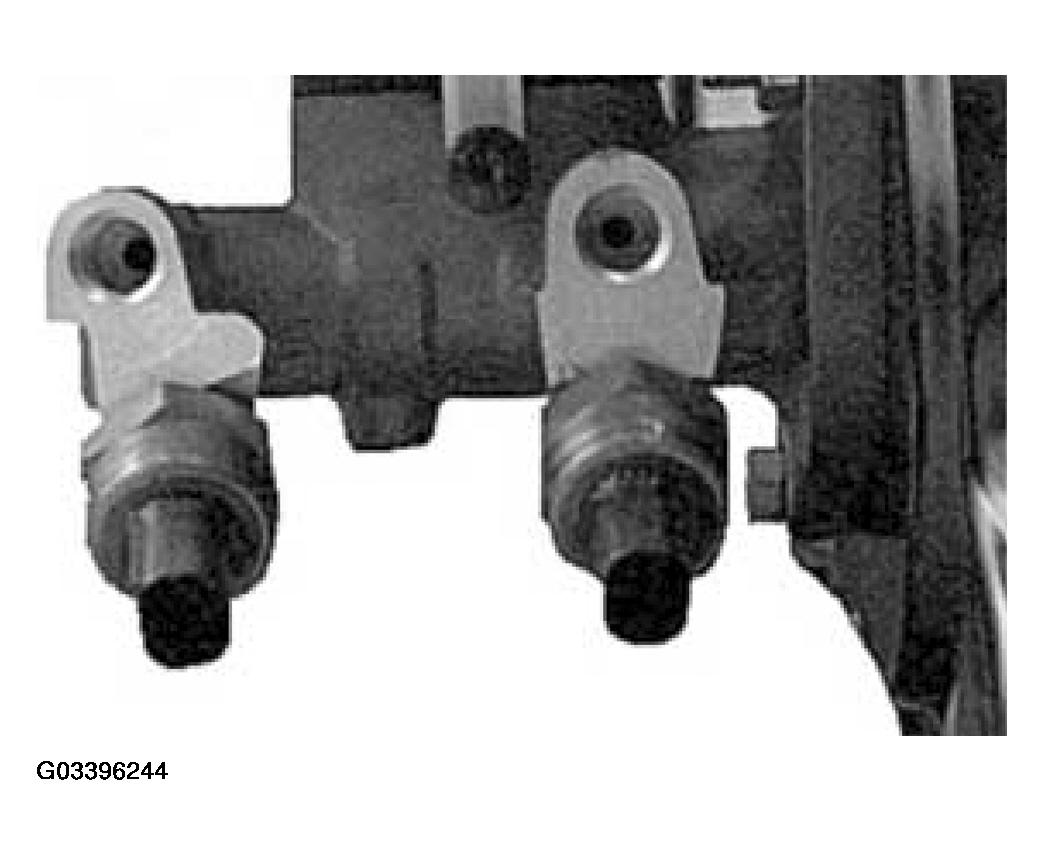

The signal input from the brake light switch is compared with the pressure sensor values.
The pressure sensors must not detect more that 5 bar when the BLS is not actuated.
Both signals are used to form a redundant BLS input which is constantly monitored.
NOTE:
Refer to the WORKSHOP HINTS
for instructions on initializing the brake pressure sensors.
