Heater/Air Conditioner Housing

The heater/air conditioner housing design is based on the E36/7. To compliment the lightweight and compact design, stepper motors are used to operate the flaps.

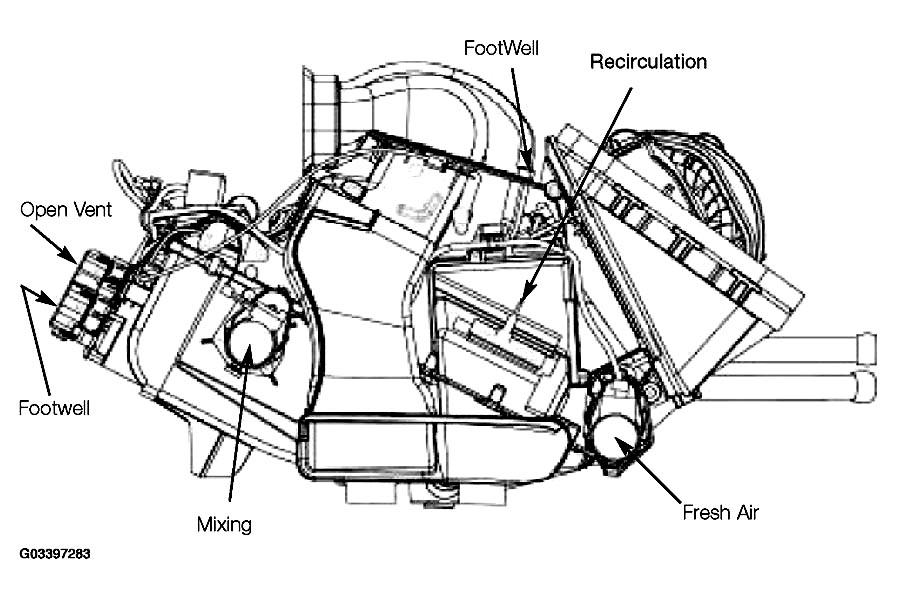

Fig 1: Locating Heater/Air Conditioner Housing Parts
G03397283Courtesy of BMW OF NORTH AMERICA, INC.
