Auxiliary Fan

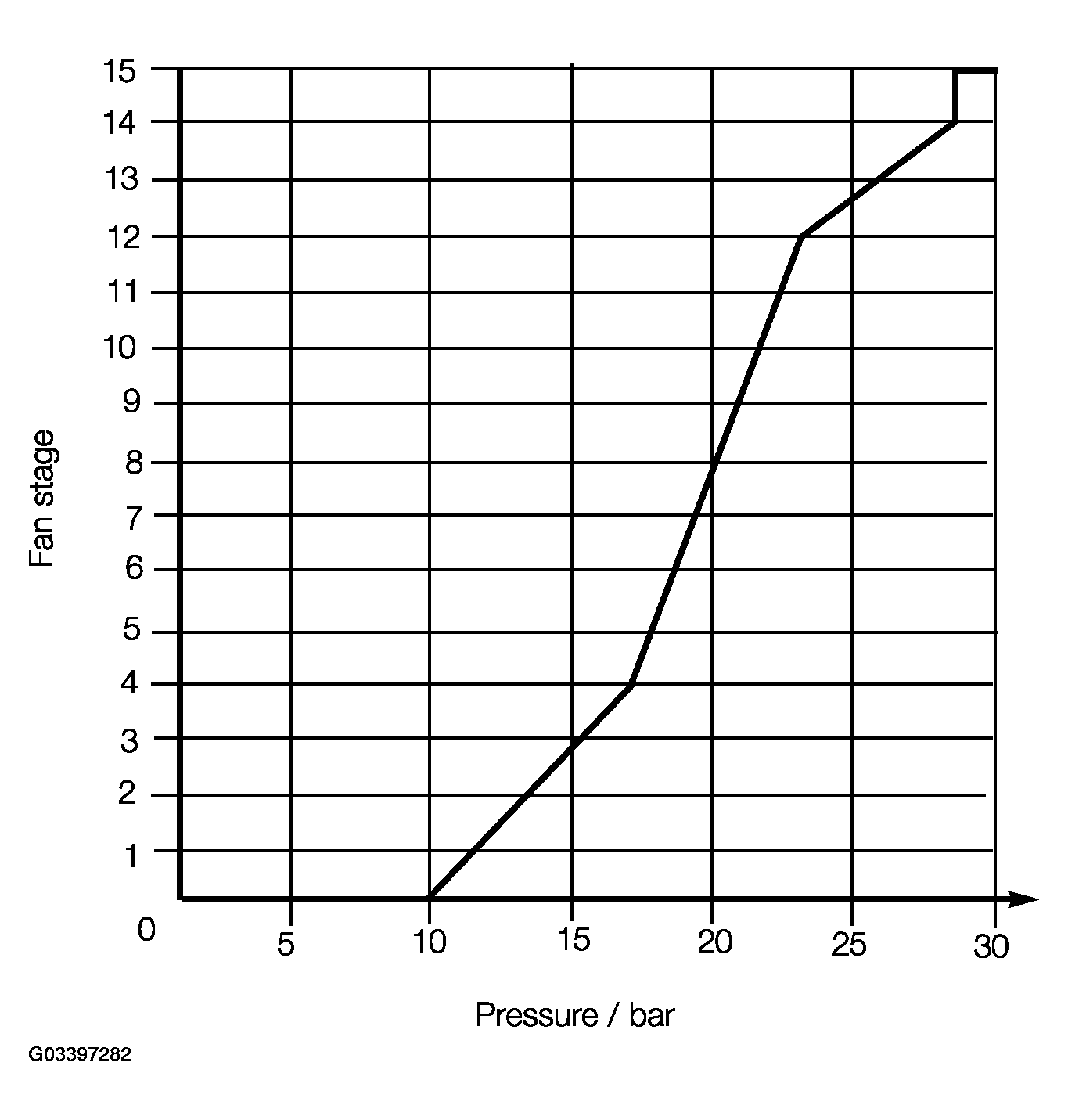

The auxiliary fan stage (speed) is determined from the refrigerant pressure sensor signal. The IHKS signals the ECM via the K-bus, and the ECM will activate the auxiliary fan. The fan stage (speed) is generally set to 0 at vehicle speeds above 50 mph (ram air).
