Control Panel - Connections

A total of 3 plug connections are integrated in the IHKS control module.

The forth is a separate connection to the blower switch.

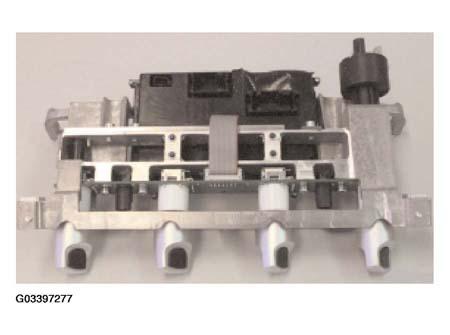

Fig 1: Identifying Control Panel Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

The IHKS control module is located on the back of the control panel.

The Z8 IHKS can be coded and diagnosed via the DIS/MoDIC.

Fig 2: Identifying IHKS Control Panel Module

Courtesy of BMW OF NORTH AMERICA, INC.
