12 63 520 Replacing main relay (M62, M54)

Switch off ignition.

Connect DIS Tester.

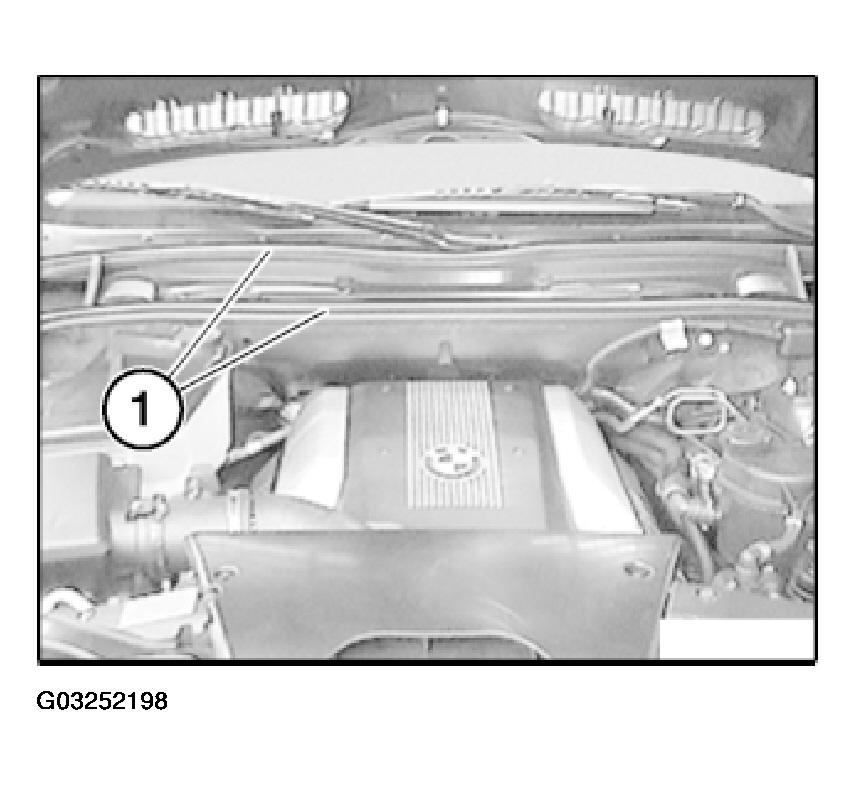

Detach sealing strips (1).

Turn bar through approx. 90°.

Remove cover.

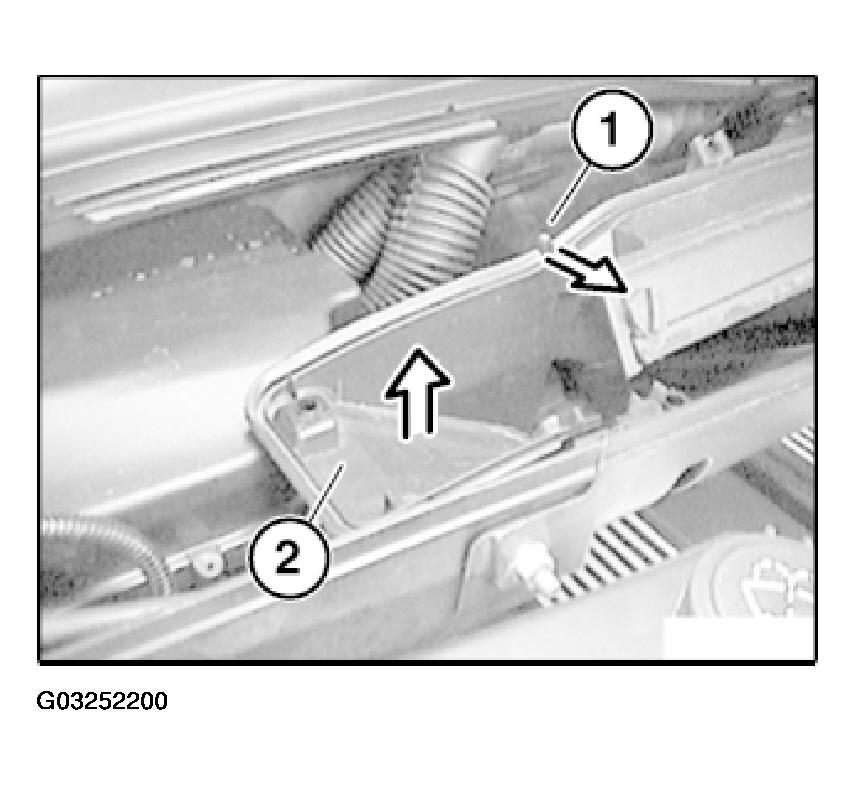

Release lock (1).

Remove air funnel (2) towards top.

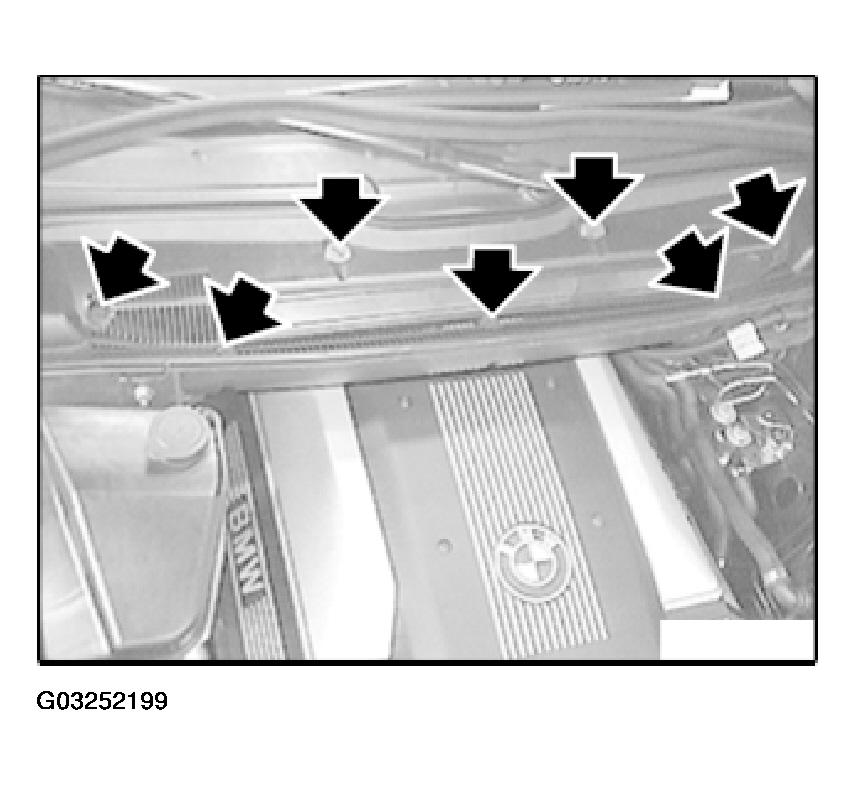

Release screws.

Tightening torque, see 12 90 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

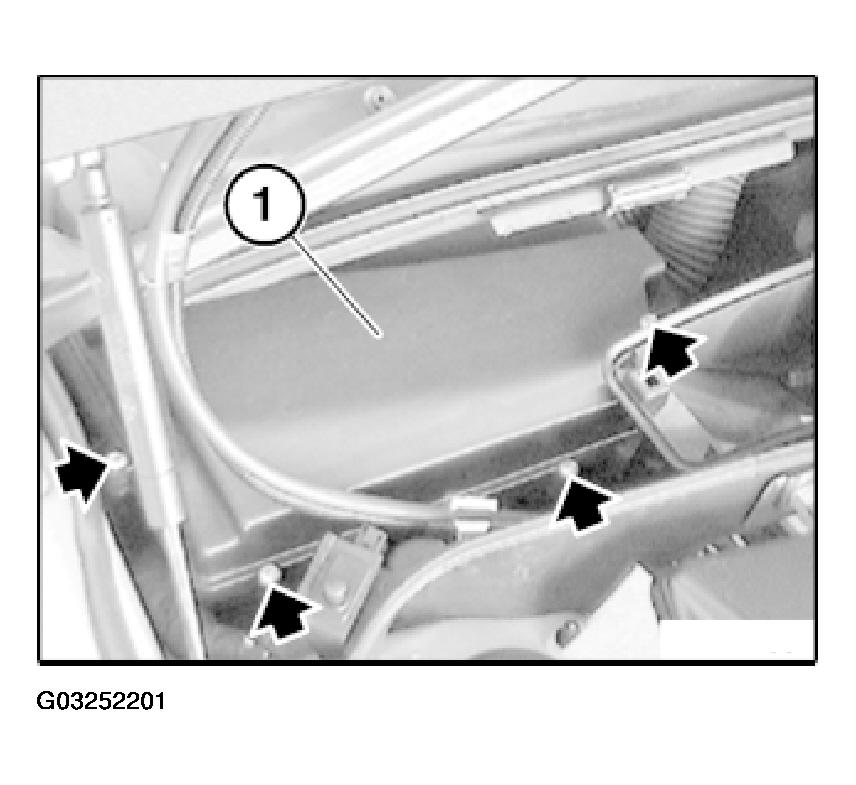

Remove cover (1) on control unit box.

Installation:

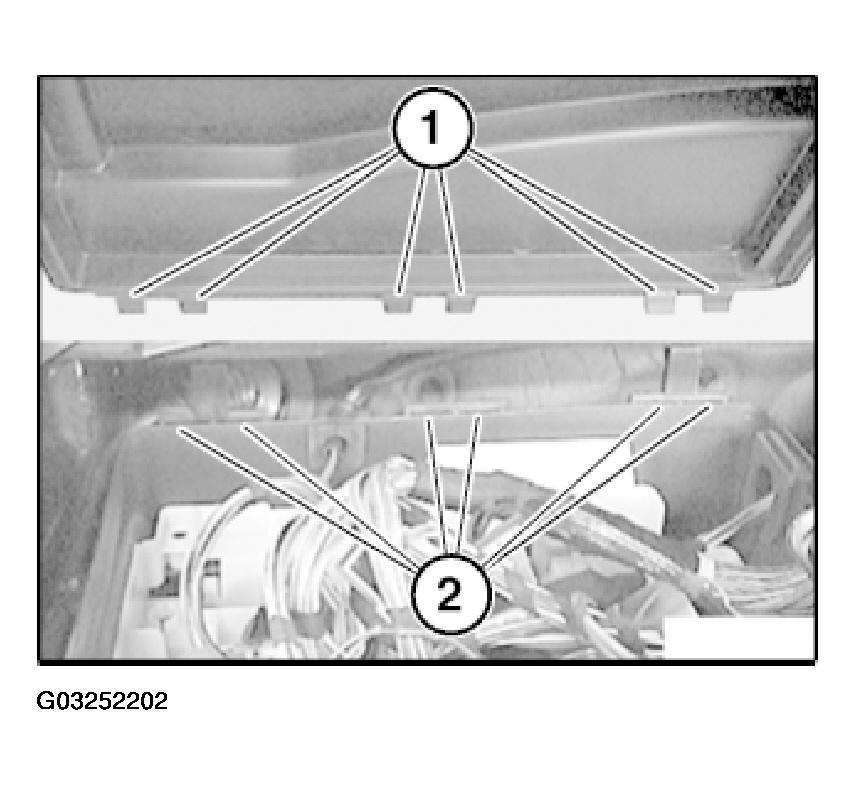

Insert fixtures (1) of cover for control unit box in openings (2).

Order:

1. Main relay of Digital Motor Electronics
2. Engine fuses of Digital Motor Electronics

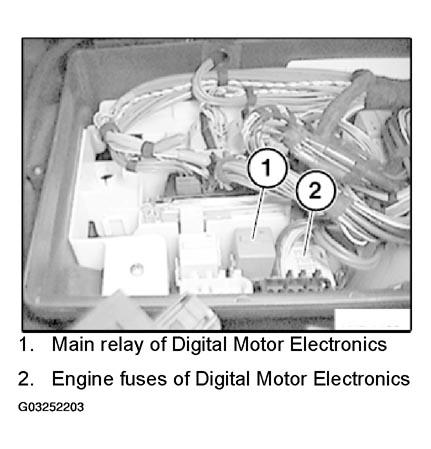

   Fig 6: Identifying Main Relay Of Digital Motor Electronics

   Courtesy of BMW OF NORTH AMERICA, INC.

Notes on troubleshooting:

If the starter motor cranks the engine during the starting sequence but the engine fails to fire, then:

1. Check engine fuses
2. If fuses are blown, replace them completely with fuse holder
3. Find out why fuses have blown

   Continue troubleshooting as per DIS instructions.
