12 14 521 Replacing pulse generator (M62): Removal

Interrogate fault memory of DME control unit.

Switch off ignition.

Disconnect plug connection (1).

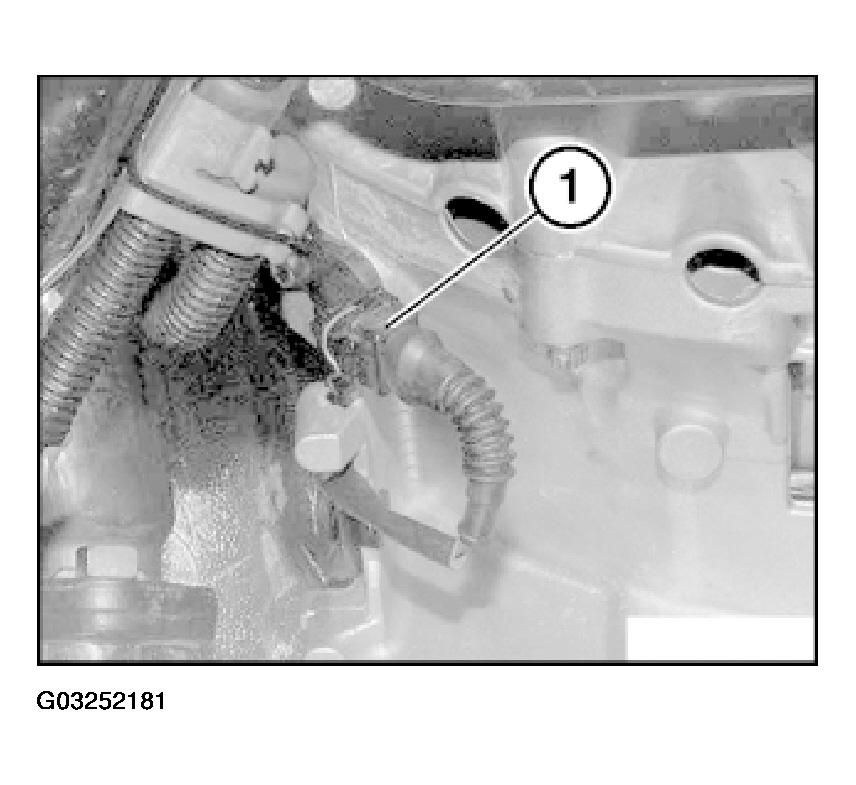

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove pulse generator.
