12 14 521 Replacing pulse generator (M62): Installation:

Observe the following when replacing the transmission, the flywheel or the pulse sensor:

If one or more spacers are fitted between the transmission housing and the pulse generator, the distance between the pulse generator and the pulse teeth of the incremental gear must be measured.

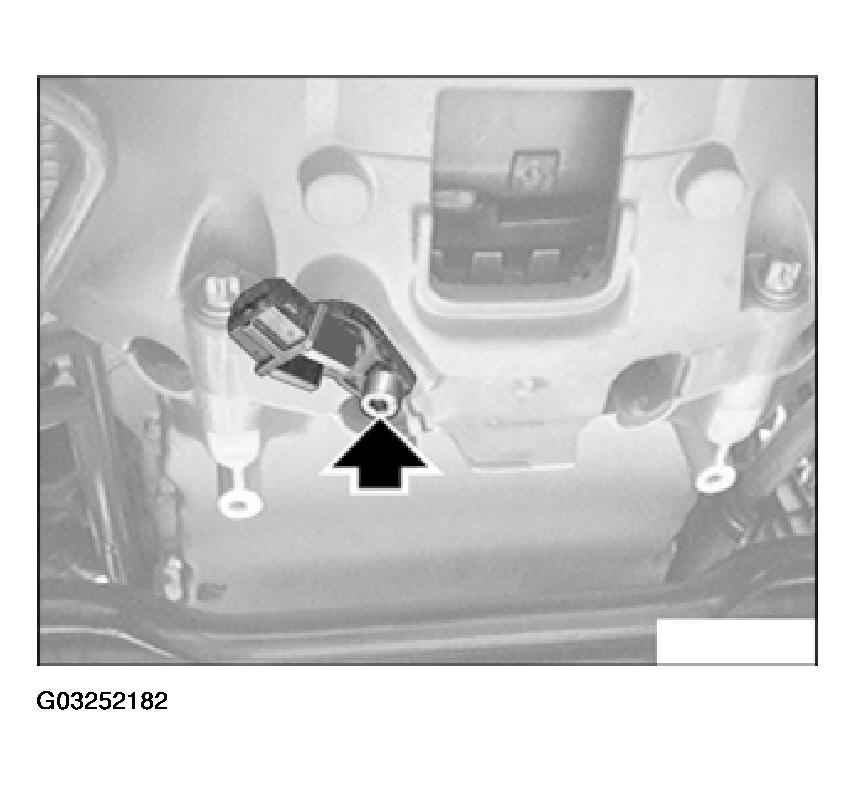

Fig 1: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate the crankshaft at the front central bolt so that a full pulse tooth (1) can be seen through the opening in the removed pulse generator. Make sure that the pulse tooth (1) is exactly centered in the hole.

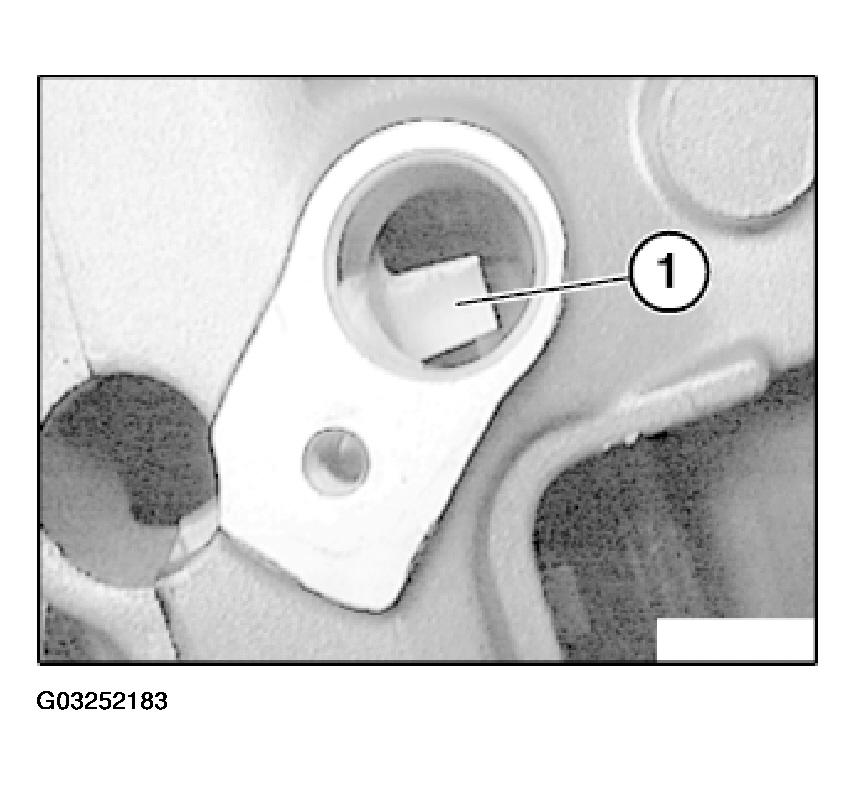

Fig 2: Identifying Pulse Tooth

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 00 2 407 or 00 2 550 to determine depth to flywheel pulse gears.

Note down depth.

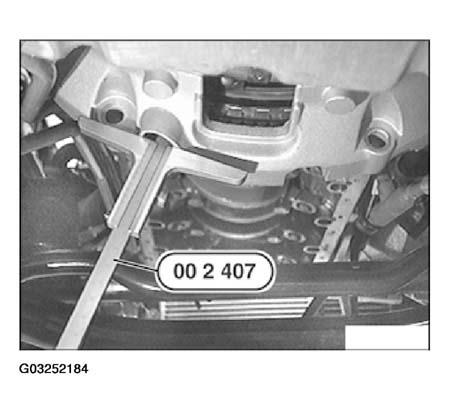

Fig 3: Measuring Depth Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Measure depth (A) of pulse generator.

Subtract depth (A) of pulse generator from depth of flywheel.

This result is the gap dimension.

Use the spacers to adjust a gap of 0.55 +/- 0.2 mm.

The measurement of 0.55 mm should be adjusted as precisely as possible so as to:

enable precise misfiring detection
prevent the pulse generator from coming into contact with the pulse teeth.
Spacers, refer to BMW Parts Service.

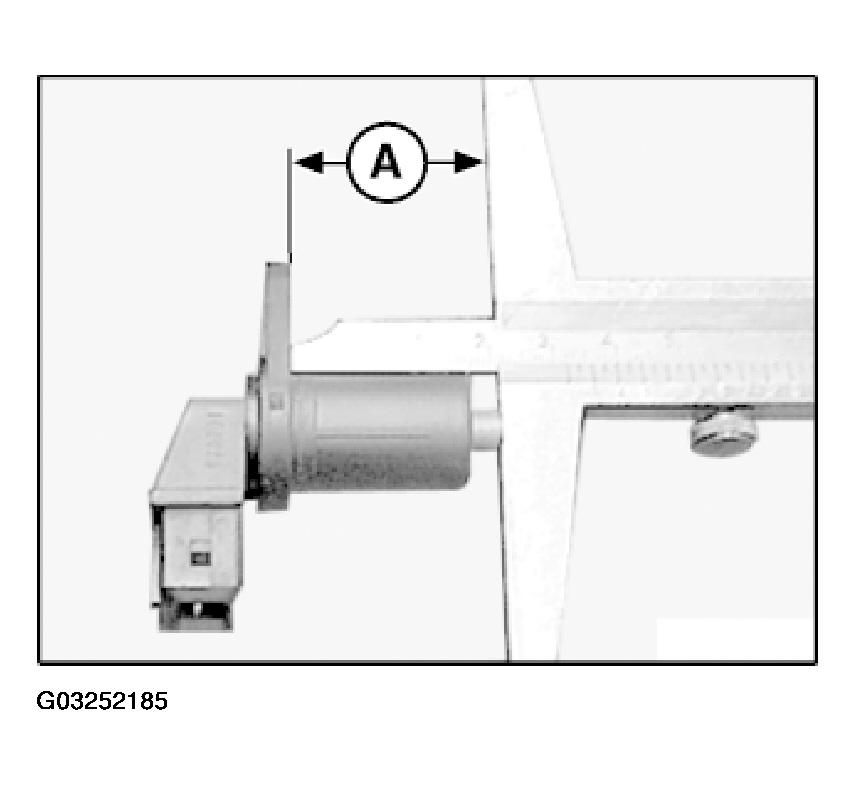

Fig 4: Measuring Depth Of Pulse Generator
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
