61 31 115 Replacing rocker switch for side-window operation

Pass a feeler gauge at arrowed positions (1 to 4) between door trim panel and toggle switch and press down retaining clips.

Raise toggle switch at relevant position until retaining clip slides out of door trim panel.

Pull out toggle switch and disconnect plug connection.

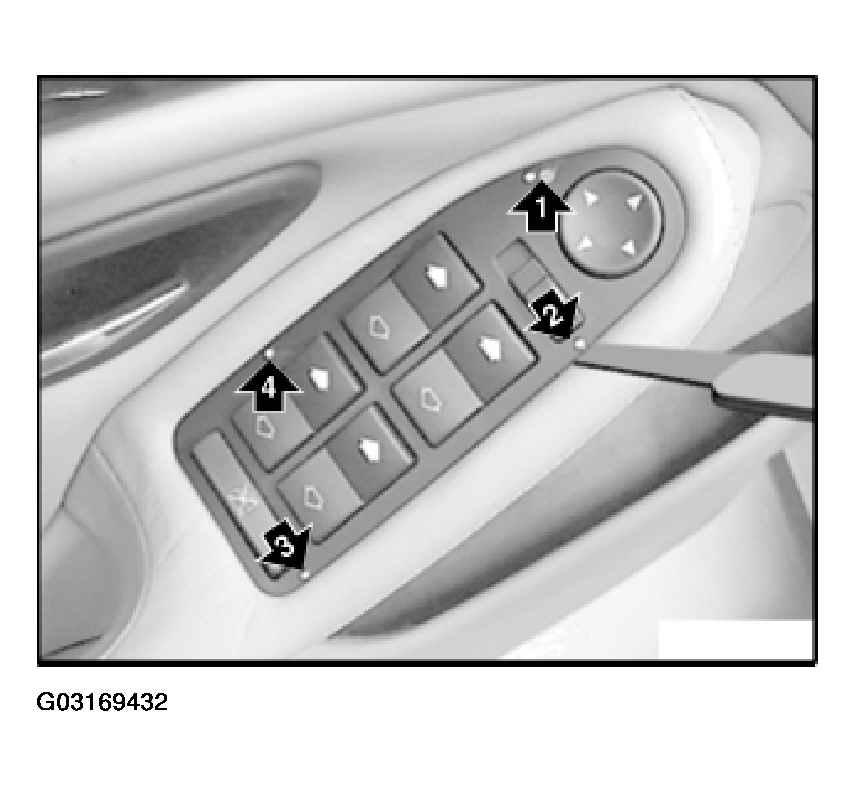

Fig 1: Removing Toggle Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Retaining clips (1) may get caught up under door trim panel when toggle switch is levered out.

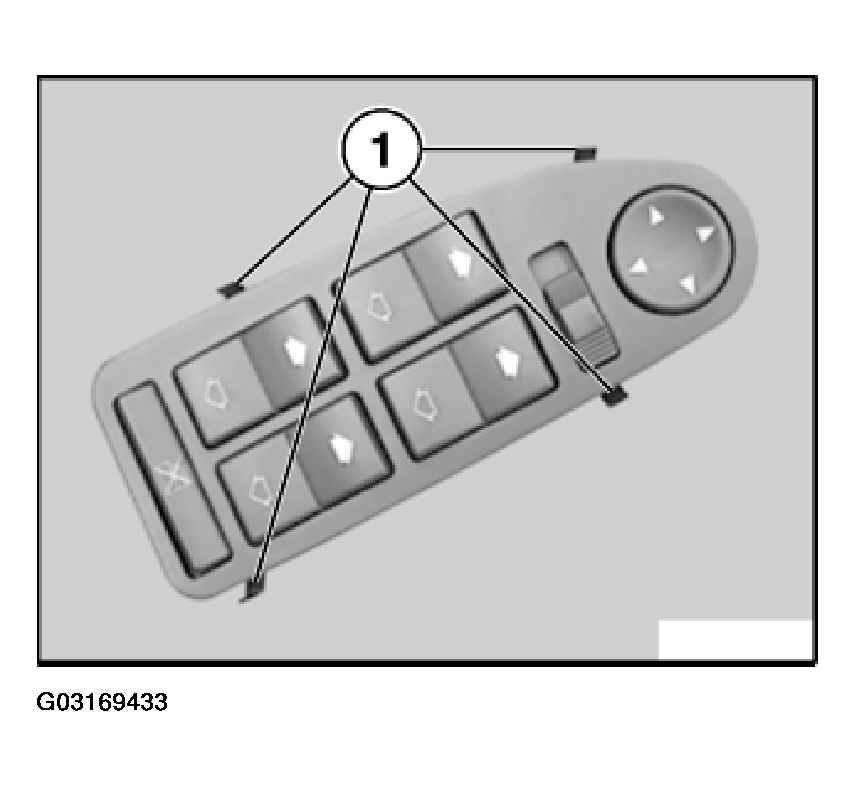

Fig 2: Locating Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
