17 11 031 Replacing fan cowl (S62)

Remove and install upper section of intake filter housing on right. Refer to 13 71 020 REMOVING AND INSTALLING RIGHT INTAKE FILTER HOUSING (S62) .

The following work steps are shown using the E39 as an example.

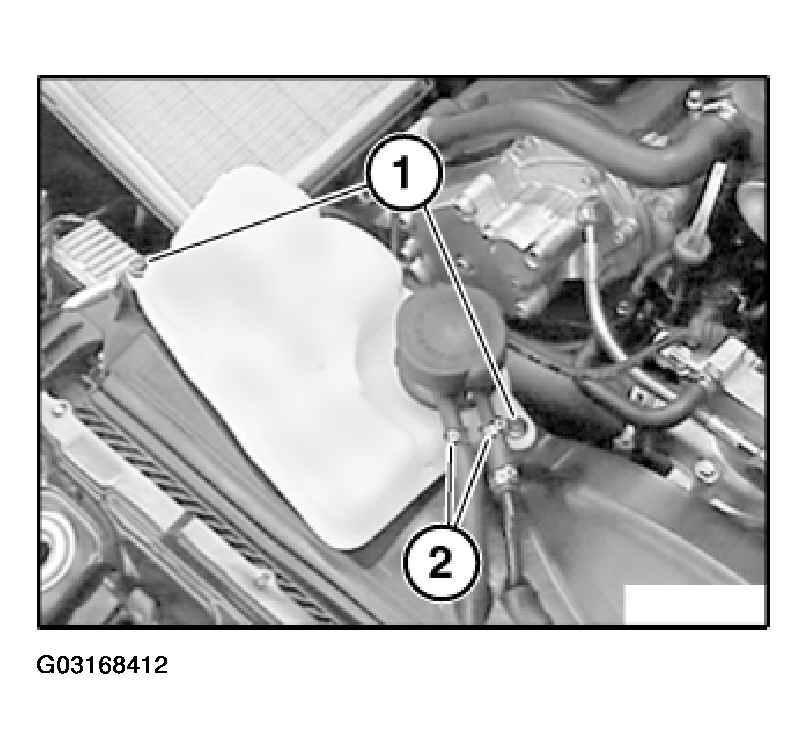

Lever out expansion rivets (1) of coolant expansion tank.

Release hose clamps (2).

Fig 1: Disconnecting Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Place coolant expansion tank to one side.

Lever expansion rivets (1) out of fan cowl.

Fig 2: Removing Expansion Rivets Out Of Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

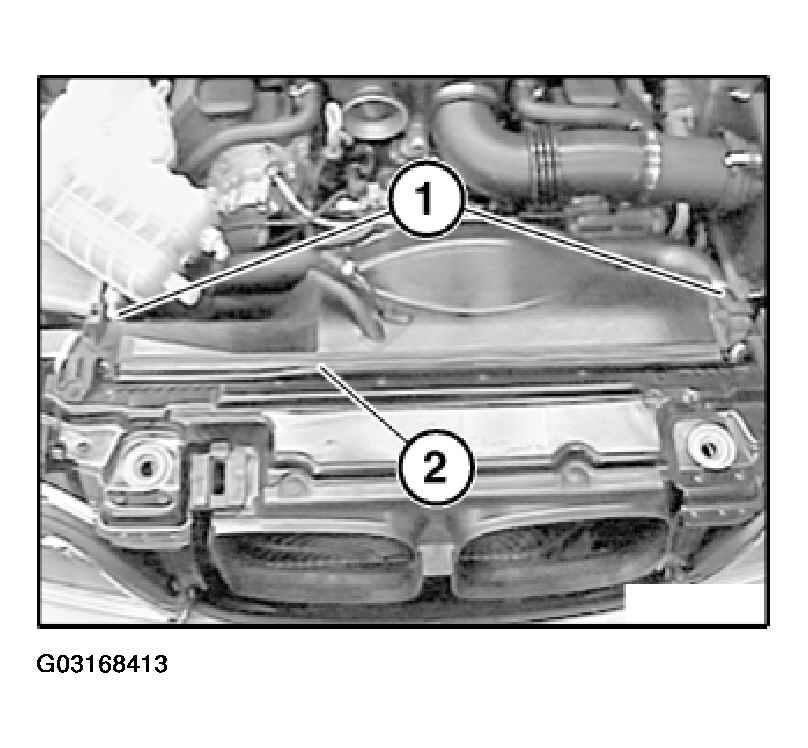

Detach sealing strip (2).

Installation:

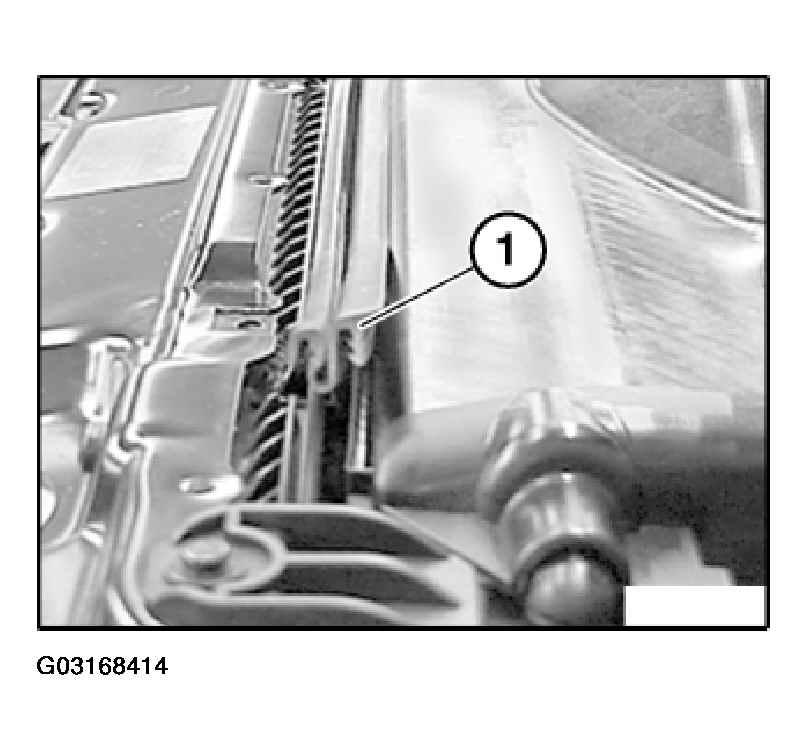

Pay attention to installation position of sealing strip (1).

Fig 3: Locating Position Of Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

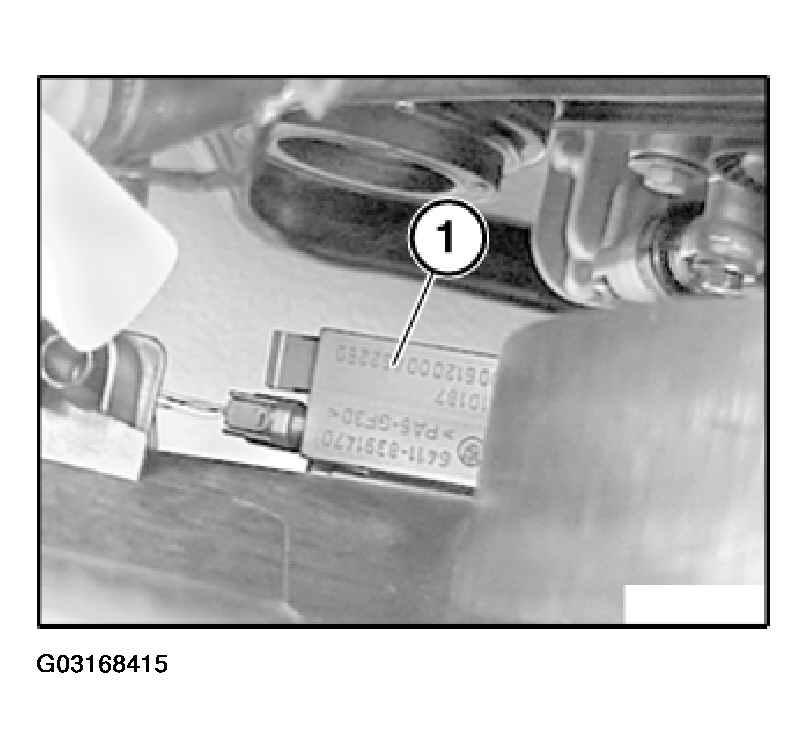

Unclip AUC sensor (1).

Pull out fan cowl.

Fig 4: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

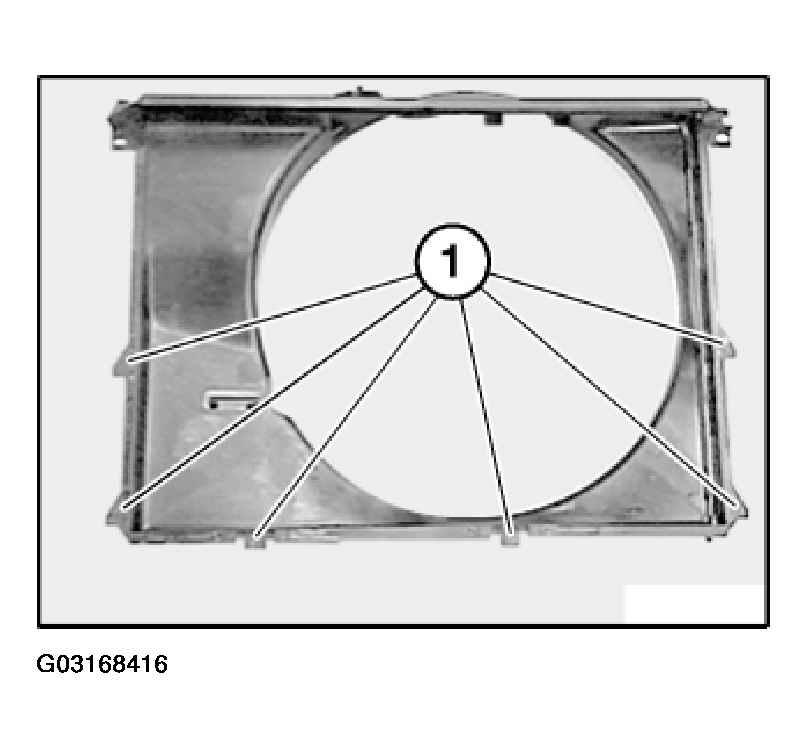

Attach lugs (1) to holders on radiator.

Fig 5: Installing Lugs To Holders On Radiator
