51 13 280 Removing and installing trim strip on roof frame at left or right

First lift out trim strip (1) with folding leg (2) or special tool 00 9 321 at rear, unclip rest up to front and pull out of seal (3) toward rear.

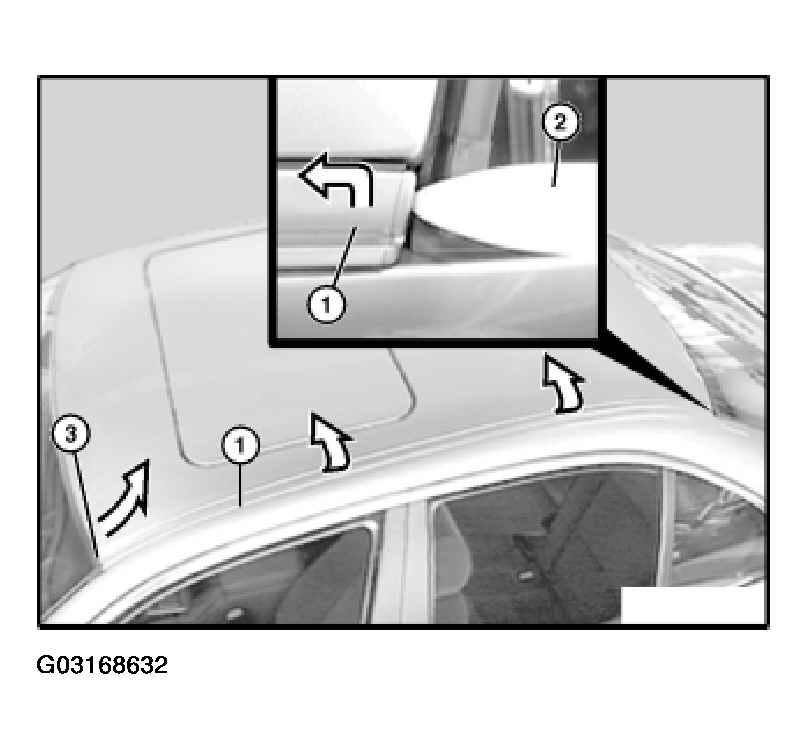

Fig 1: Lifting Out Trim Strip With Folding Leg

Courtesy of BMW OF NORTH AMERICA, INC.

Replace defective clips (1) on roof outer skin if necessary.

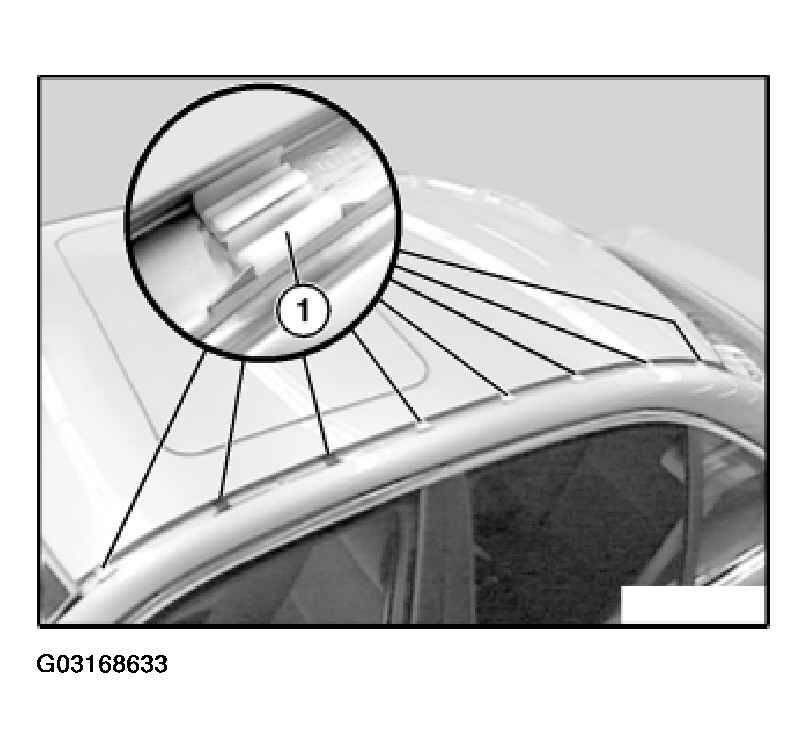

Fig 2: Locating Clips On Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push trim strip (1) into seal (2) at front, clip in at rear flush with edge (3) and then clip in rest.

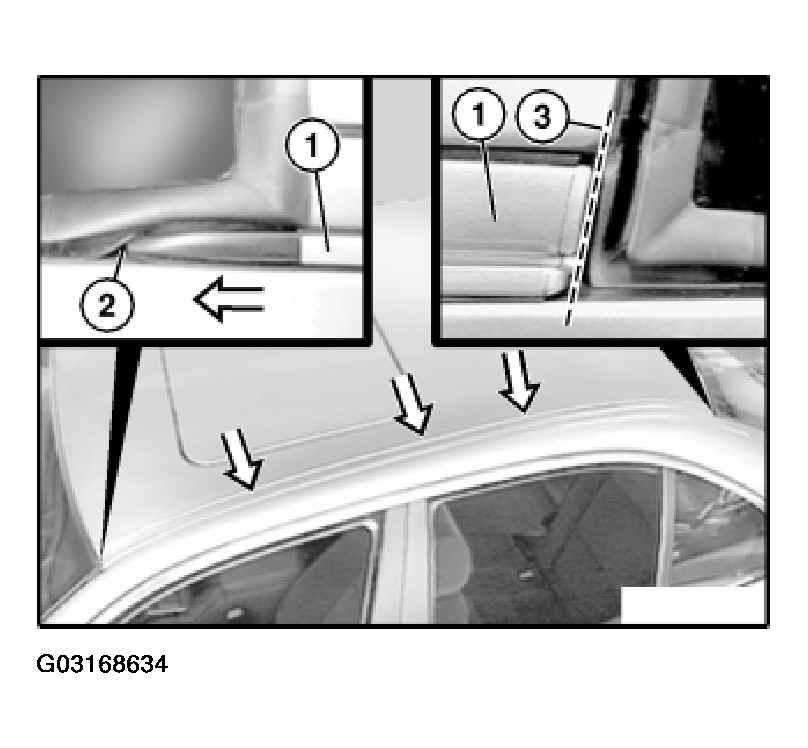

Fig 3: Pushing Trim Strip Into Seal At Front

Courtesy of BMW OF NORTH AMERICA, INC.
