51 43 251 Removing and installing or replacing trim from rear left or right roof pillar

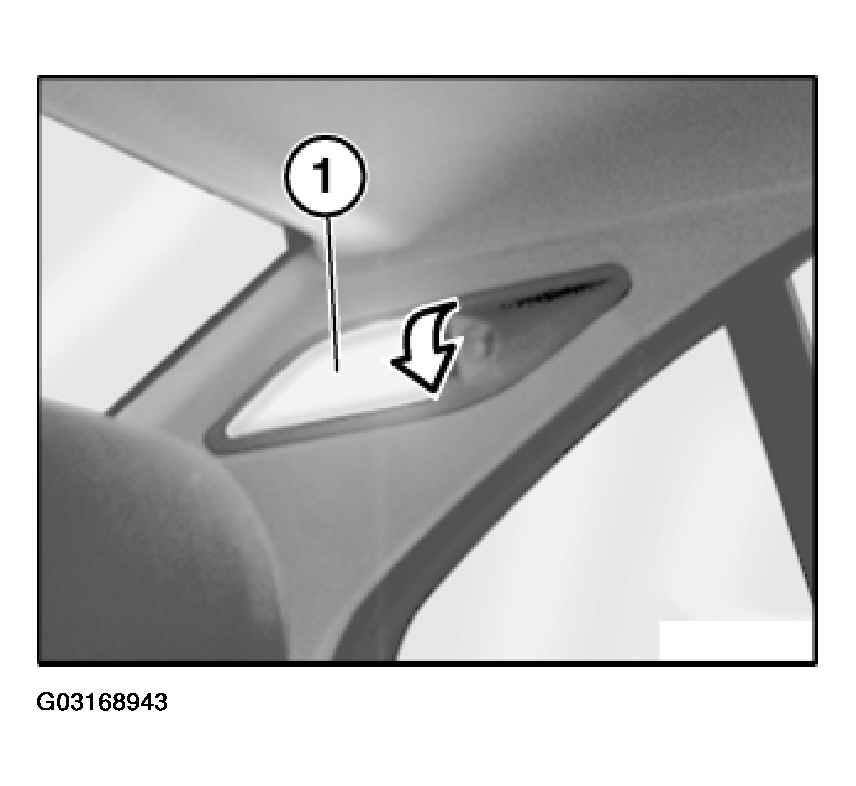

Lift interior light out from side of C pillar trim panel.

Fig 1: Removing Interior Light

Courtesy of BMW OF NORTH AMERICA, INC.

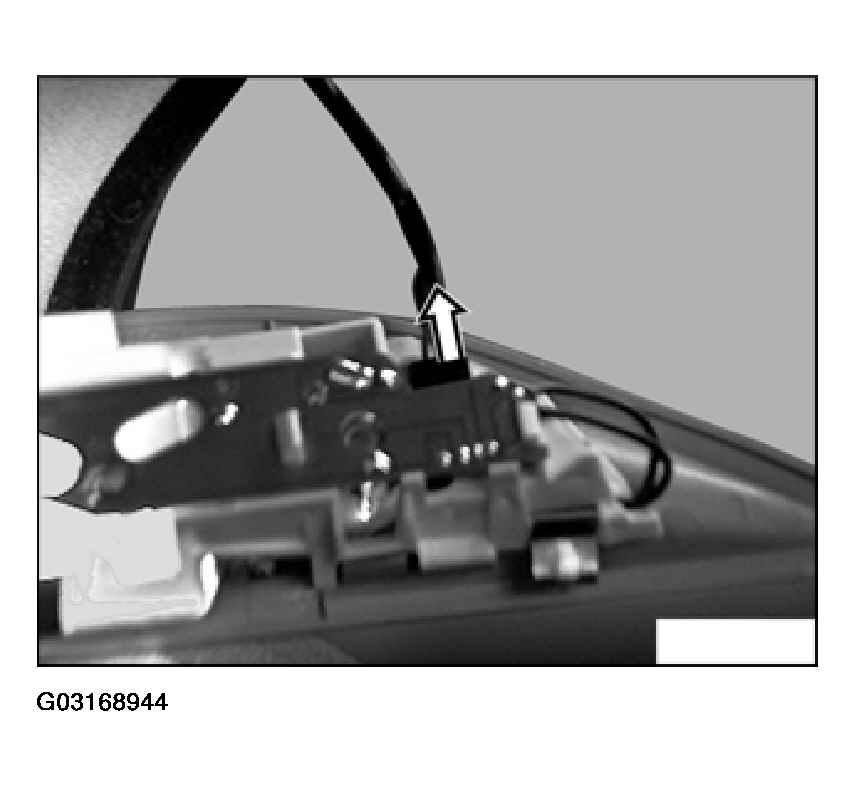

Pull off connectors.

Fig 2: Pulling Off Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

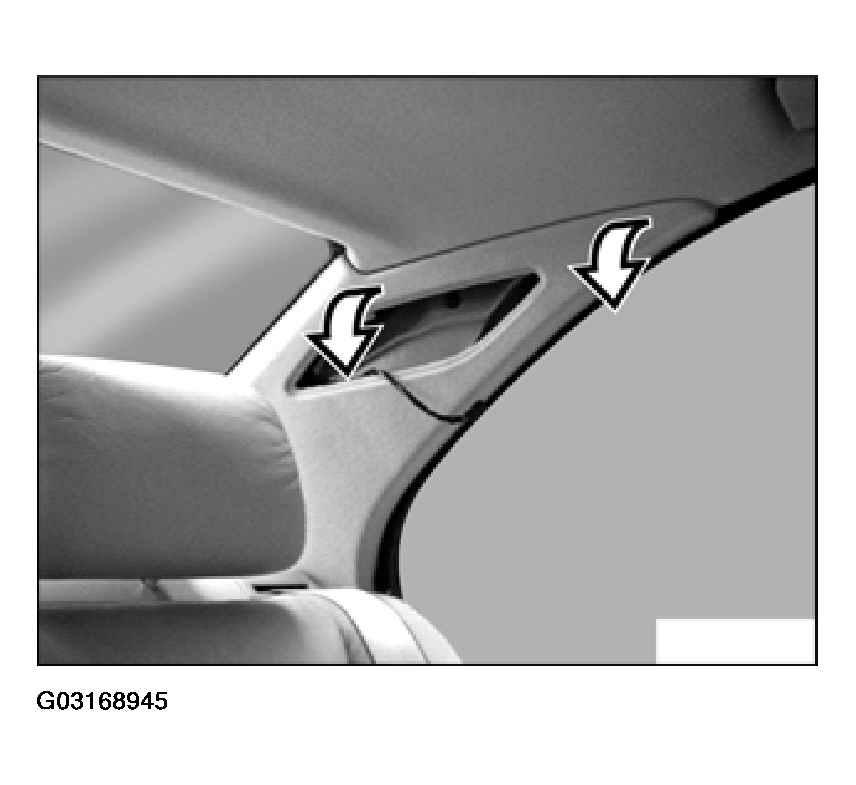

Pull trim upwards to unclip then inwards and upwards to remove.

Fig 3: Pulling Trim Upwards And Unclipping

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

Only replace:

Remove insulating mat and cement to new trim panel.

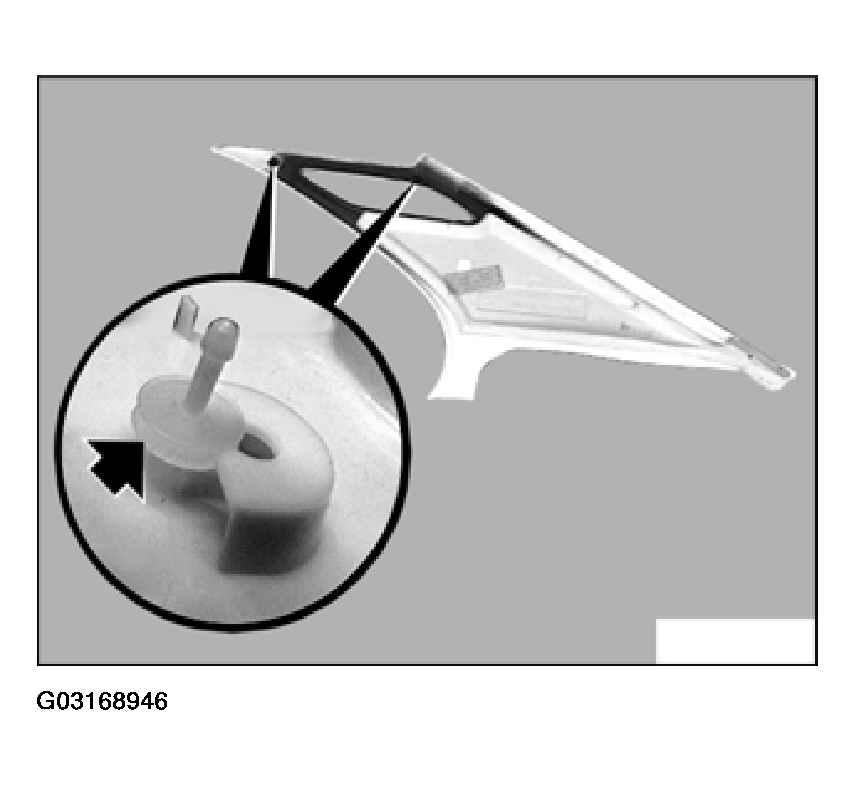

Fig 4: Identifying Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.
