51 43 201 Removing and installing or replacing trim for front left or right roof

WARNING: Version with head airbag: Follow safety instructions for working on cars with airbag systems, refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .

CAUTION: Do not use sharp-edged tools to remove trim (risk of damage to head airbag).

Remove mucket from front roof pillar (A-pillar finisher).

Version with head airbag (ITS):

If necessary, lever out cap (1).

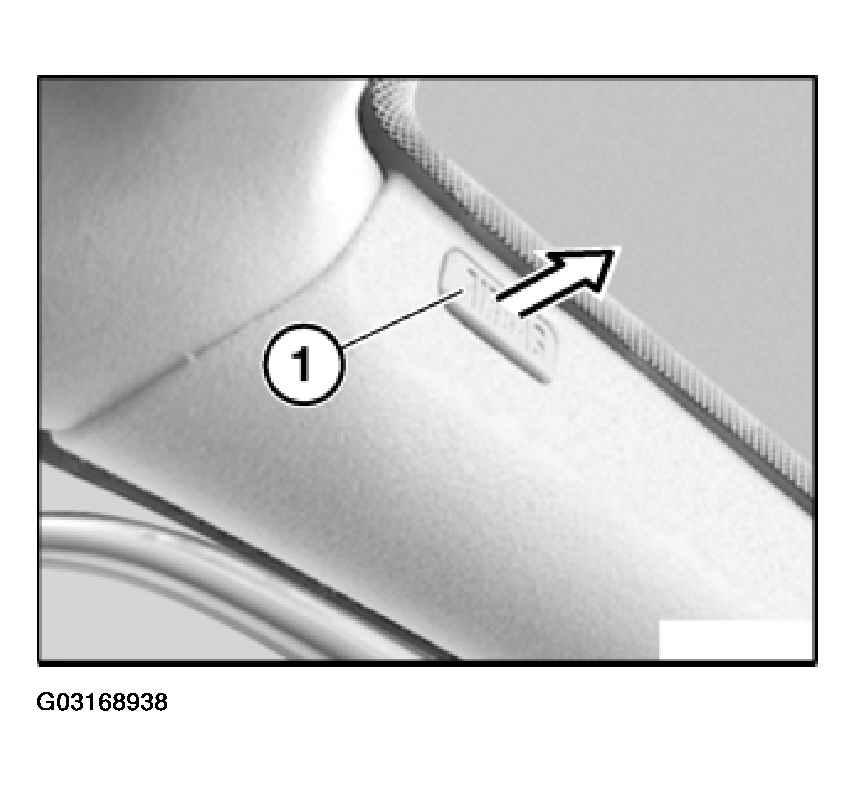

Fig 1: Levering Out Cap

G03168938

Courtesy of BMW OF NORTH AMERICA, INC.

Version with head airbag (ITS):

If necessary, release screw (1) and remove with clip (2).

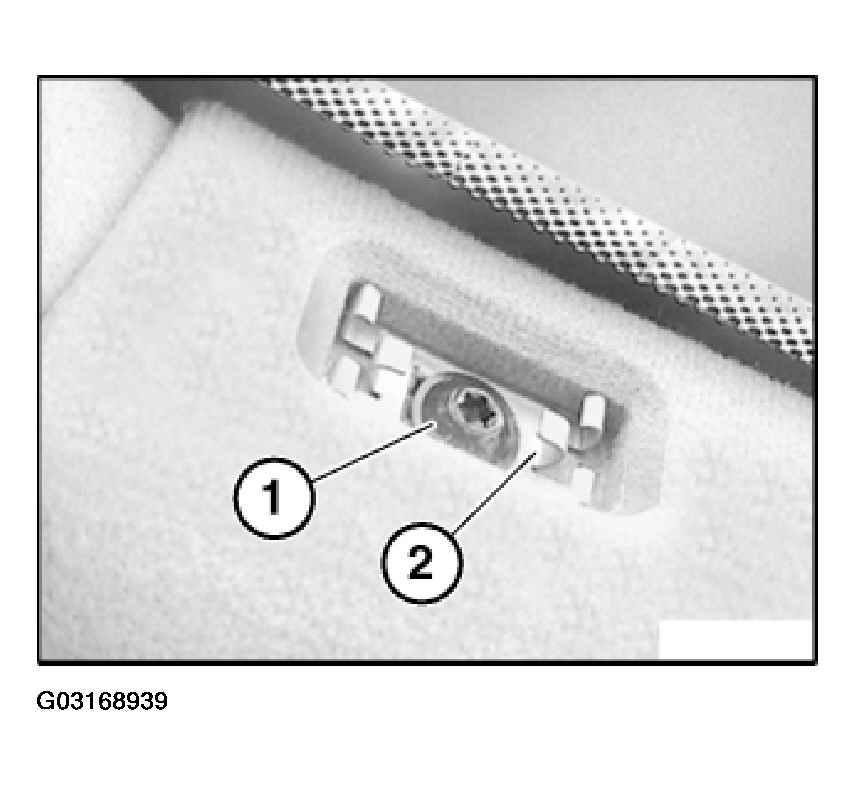

Fig 2: Releasing Screw And Removing With Clip

G03168939

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim by pulling inwards and pull up to remove.

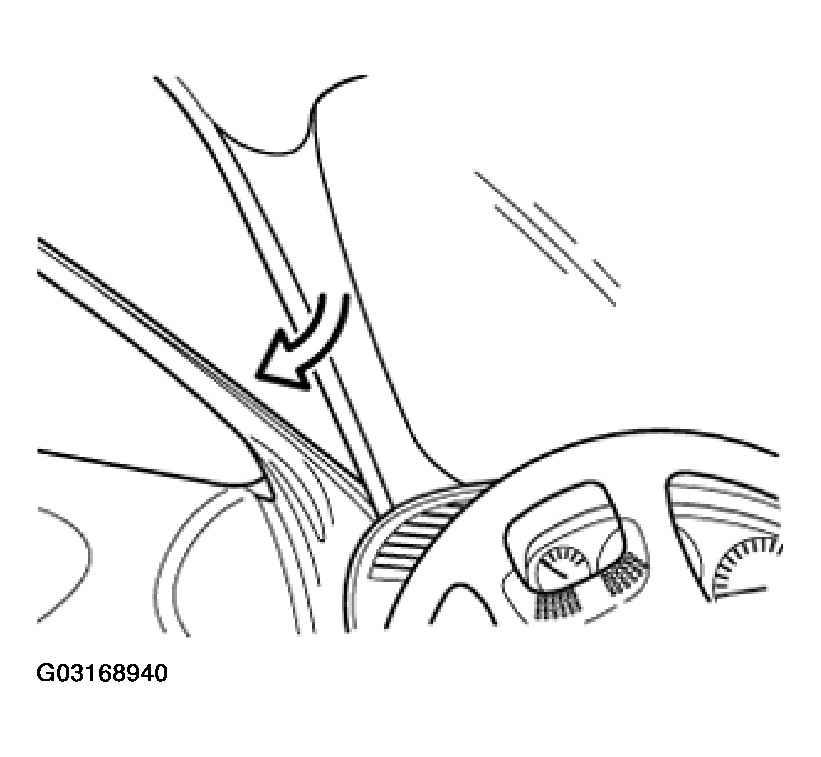

Fig 3: Unclipping Trim By Pulling Inwards

G03168940

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

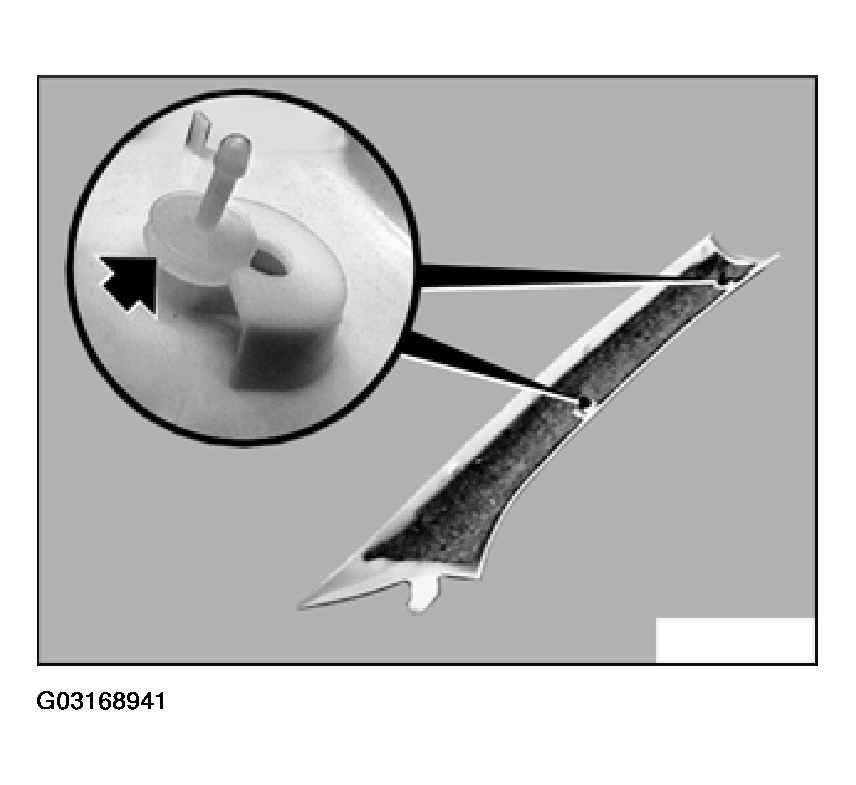

Fig 4: Replacing Damaged Clips

G03168941

Courtesy of BMW OF NORTH AMERICA, INC.

Version with head airbag (ITS):

Installation:

Mounts (1) and (2) of trim panel (3) must not be damaged.

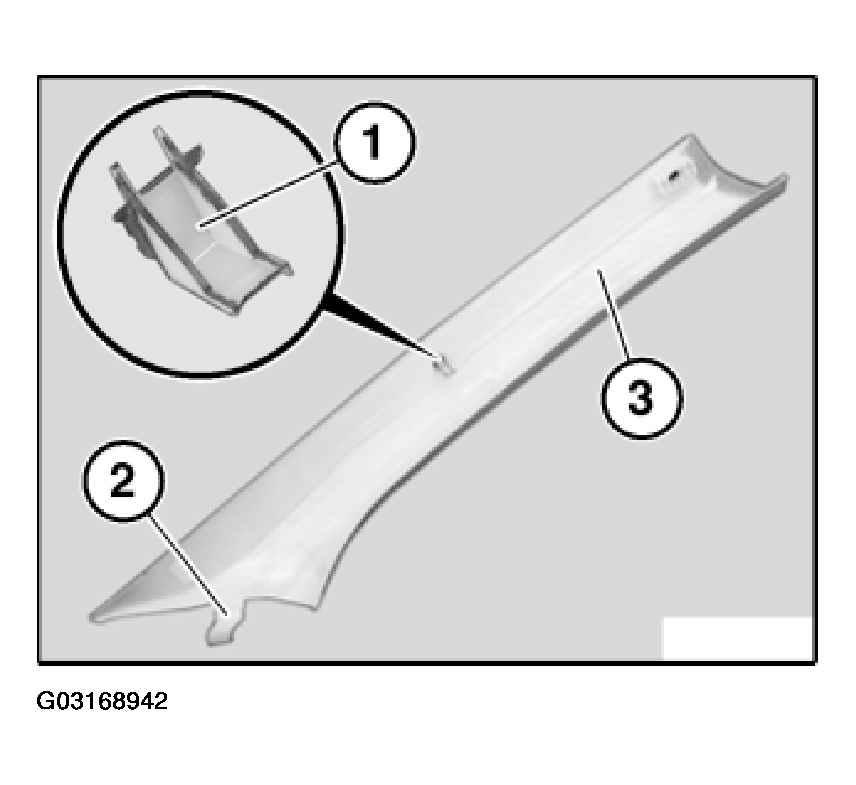

Fig 5: Identifying Mounts Of Trim Panel

G03168942

Courtesy of BMW OF NORTH AMERICA, INC.
