51 34 380 Removing and installing/replacing decorative strip on rear door (top), left or right

Partly remove rubber seal (1) at top.

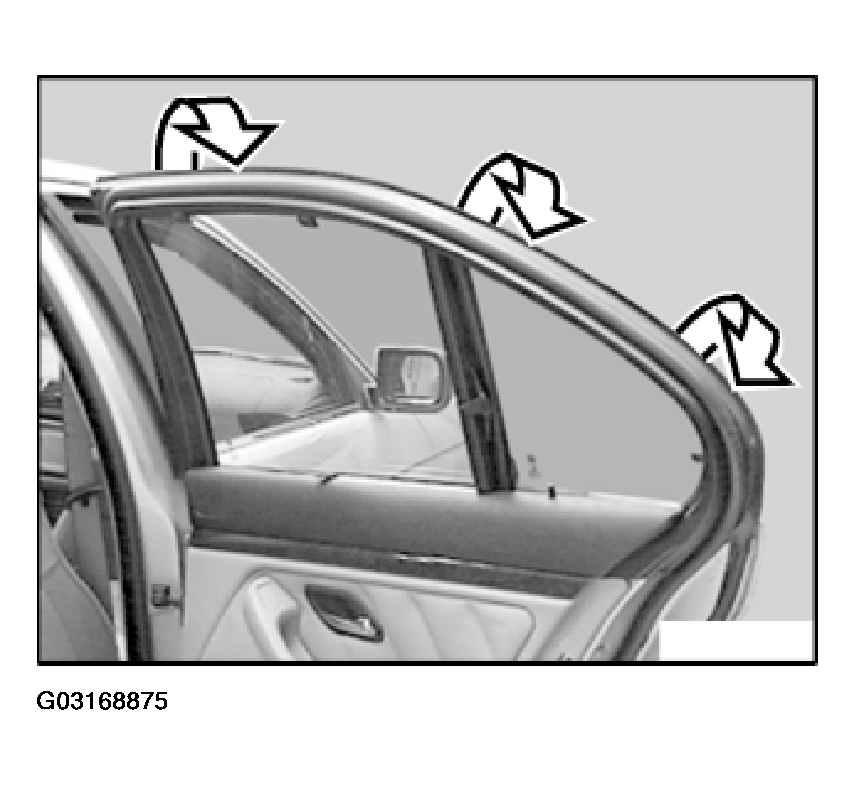

Fig 1: Removing Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out decorative strip (1) with clips (2).

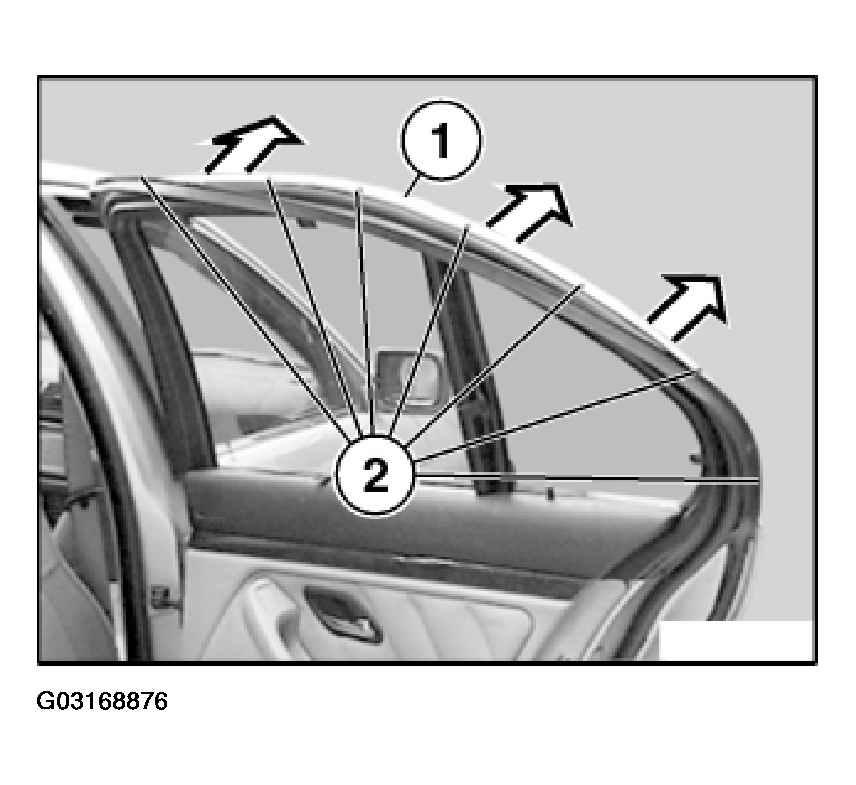

Fig 2: Pulling Out Decorative Strip With Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove faulty clips (2) from decorative strip (1) and replace with new clips (3).

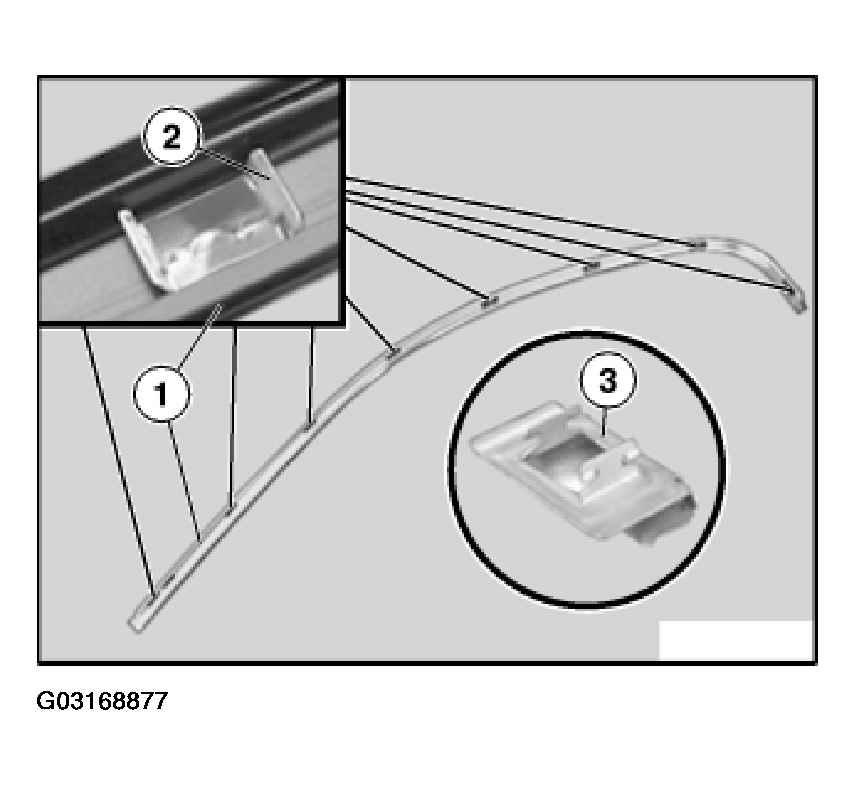

Fig 3: Removing Faulty Clips From Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
