51 22 225 Removing and installing/replacing inside door handle of rear left or right door

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Pull Bowden cable (1) towards rear and unhook from door opener.

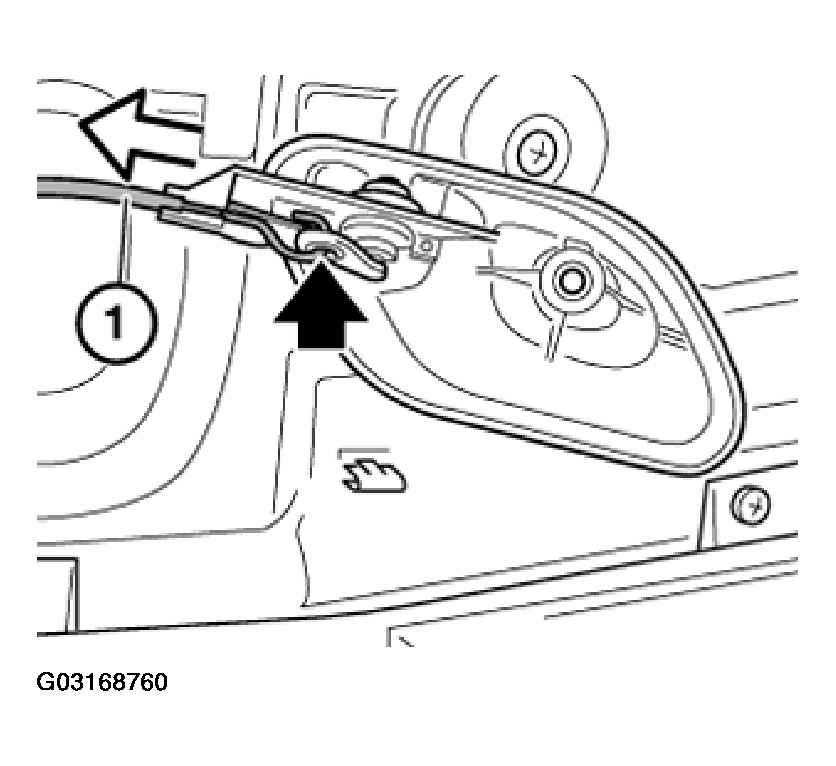

Fig 1: Unhooking Bowden Cable
G03168760Courtesy of BMW OF NORTH AMERICA, INC.
