51 12 432 Replacing central body molding on rear bumper

Version without Park Distance Control (PDC):

Unclip and remove body molding with special tool 00 9 321 (folding strut).

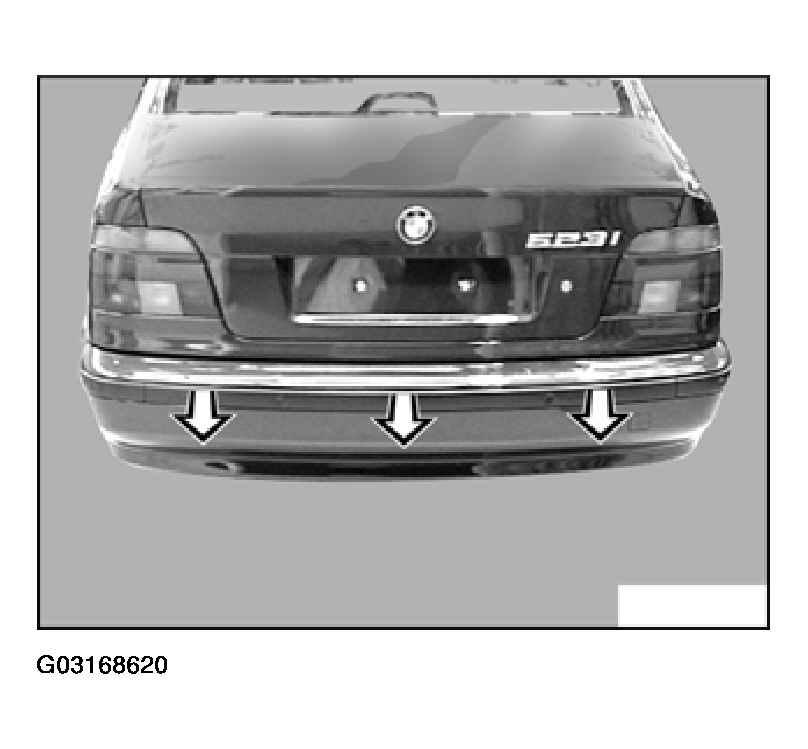

Fig 1: Removing Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

Unclip body molding, unfasten ultrasonic converter and remove.

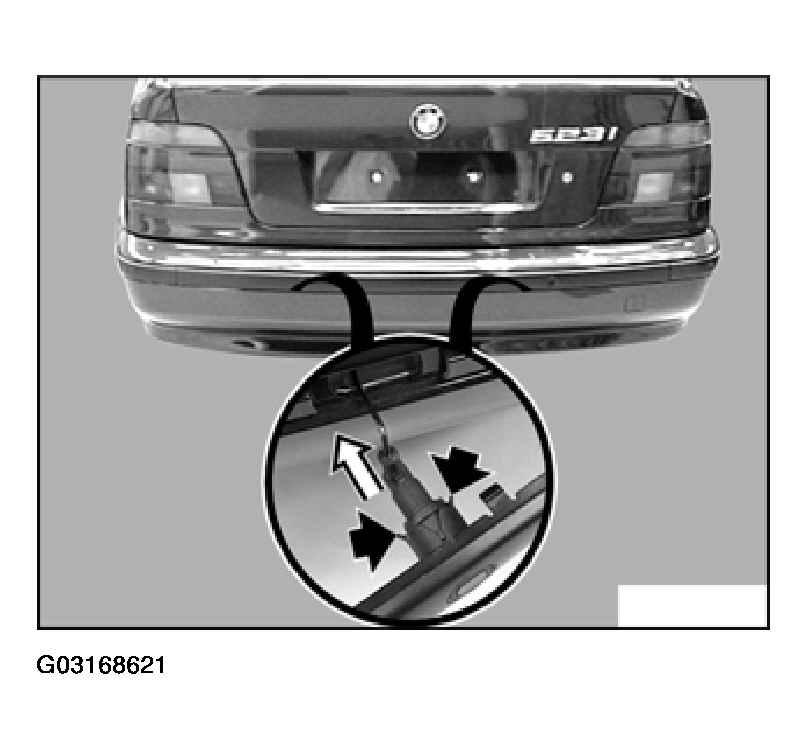

Fig 2: Unfastening Ultrasonic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Lift chrome strip (1) out of clips (2) in body molding and remove.

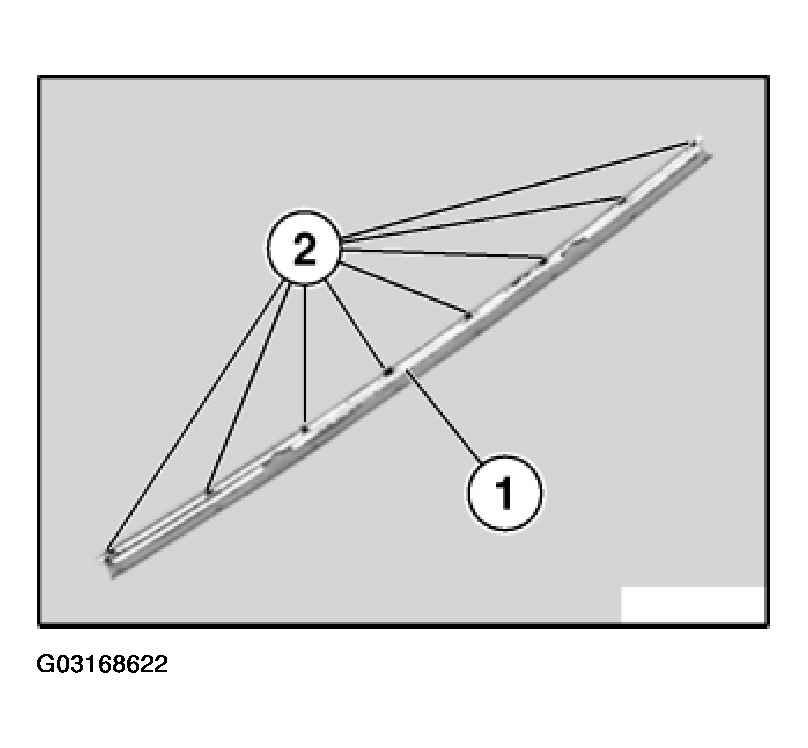

Fig 3: Lifting Chrome Strip Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.
