Passenger Door Module (PM-BT)

The passenger door module is also on the P-Bus and is responsible for controlling the passenger side power window, mirror motors, mirror heating and memory functions.

The passenger door module is located on the passenger side door under the door panel.

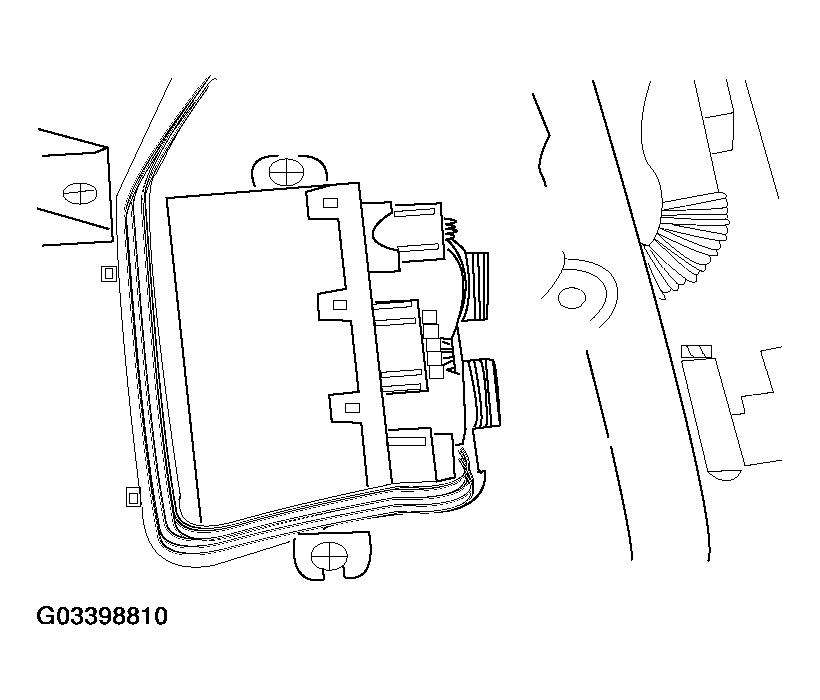

Fig 1: Identifying Passenger Door Module (PM-BT)

Courtesy of BMW OF NORTH AMERICA, INC.
