Power Window Overview (IPO)

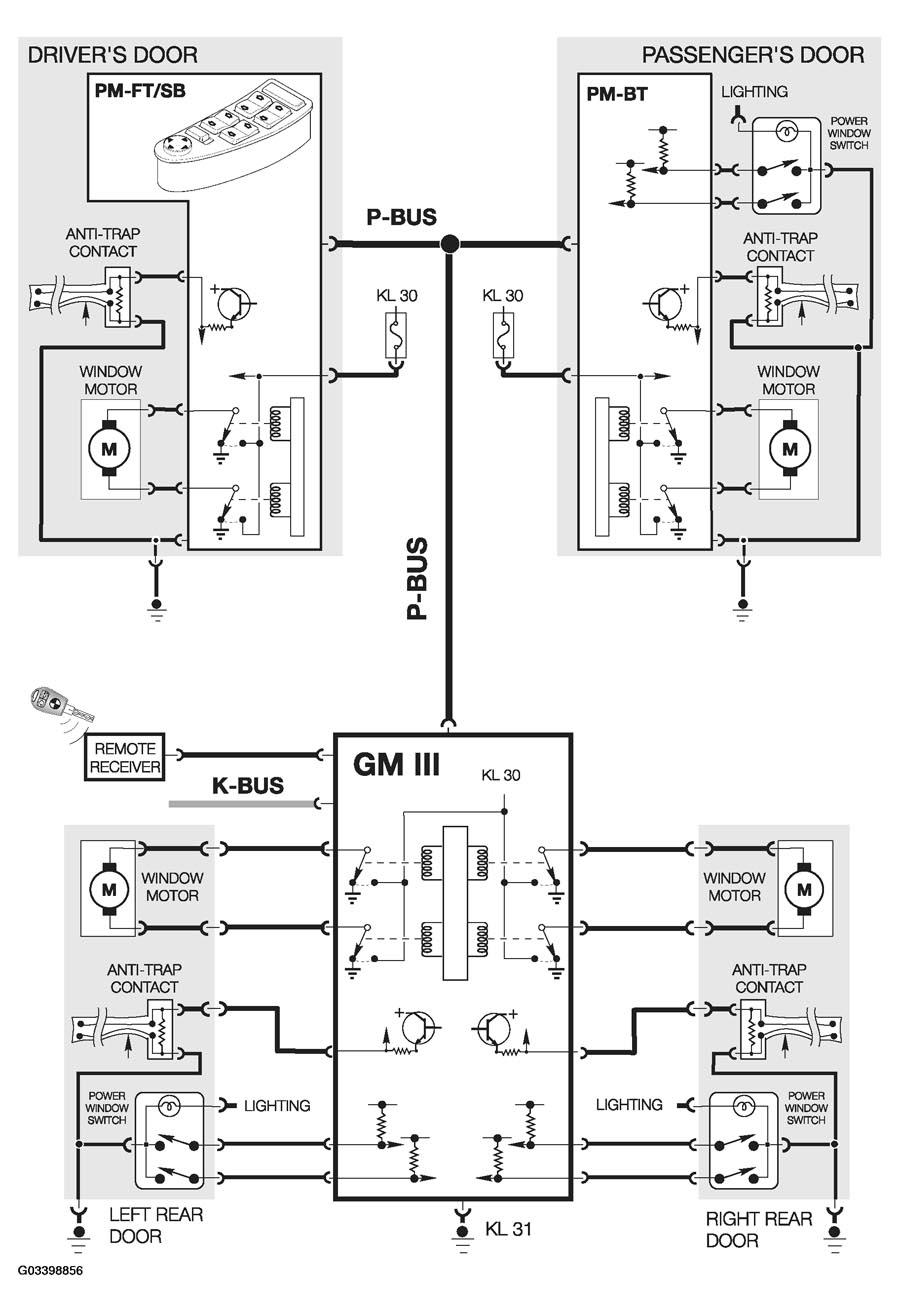

Fig 1: Identifying Power Window Overview Schematic

G03398856

Courtesy of BMW OF NORTH AMERICA, INC.
