OFF Conditions

All doors closed with ignition on.
All doors closed with ignition off after 20 seconds.
20 seconds after switching off ignition with lights off.
8 seconds after remote control activation.
16 minutes with door(s) open.
When doors are locked.

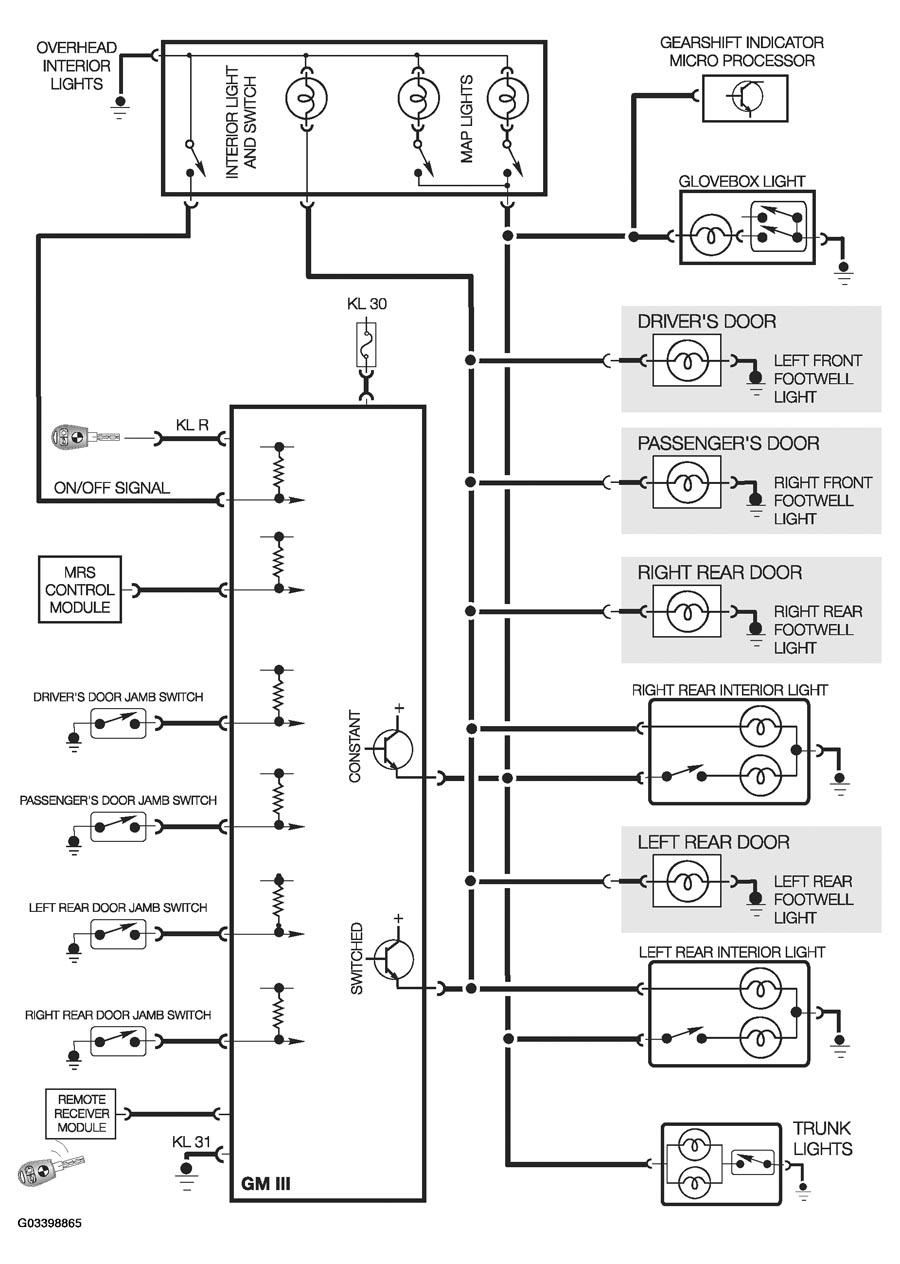

Fig 1: Interior Lighting Schematic

G03398865

Courtesy of BMW OF NORTH AMERICA, INC.
