34 5 100 Bending fixture

SPECIAL TOOL DESIGNATION

Note:	For brake lines
Series:	E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90
Storage location:	A28
Order number:	34 5 100
	Bending fixture

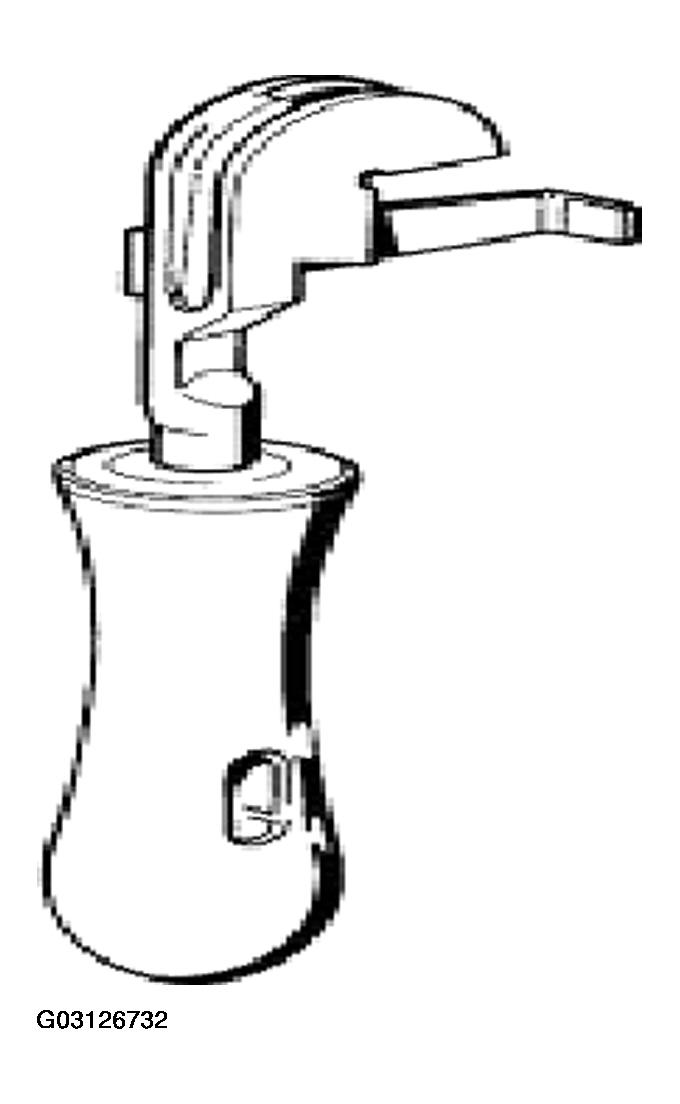

Fig 1: Identifying Special Tool - 34 5 100 Bending Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
