34 3 200 Assembly fixture

SPECIAL TOOL DESIGNATION

Note:	For pressure regulator, H31 brake system
Series:	E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Storage location:	B7
Order number:	34 3 200
	Assembly fixture

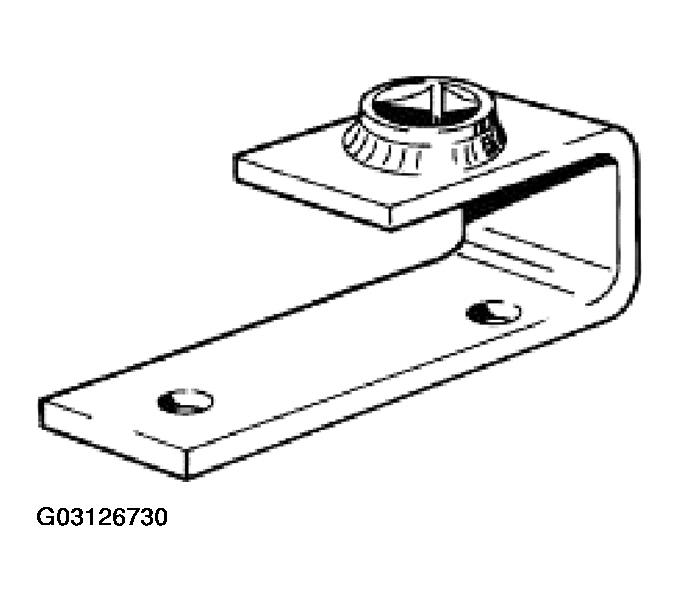

Fig 1: Identifying Special Tool - 34 3 200 Assembly Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
