34 3 150 Set of spanners

SPECIAL TOOL DESIGNATION

Note:	For releasing and tightening pressure lines at pressure regulator and at brake booster, H31 brake system
Series:	E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Storage location:	C5
Order number:	34 3 150
	Set of spanners
Consisting of:
1 = 34 3 151	Ring spanner WAF 17
2 = 34 3 152	Ring spanner WAF 19
3 = 34 3 153	Ring spanner WAF 14
4 = 34 3 154	Ring spanner WAF 12

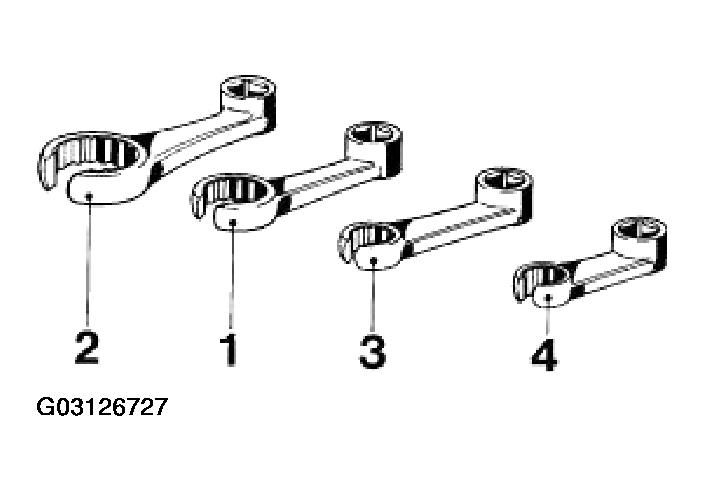

Fig 1: Identifying Special Tool - 34 3 150 Set Of Spanners

Courtesy of BMW OF NORTH AMERICA, INC.
