34 1 200 Screwdriver socket

SPECIAL TOOL DESIGNATION

Note: For releasing and tightening spline socket screws on fixed brake caliper, front and rear
Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Storage location: C8
Order number: 34 1 200
  Screwdriver socket

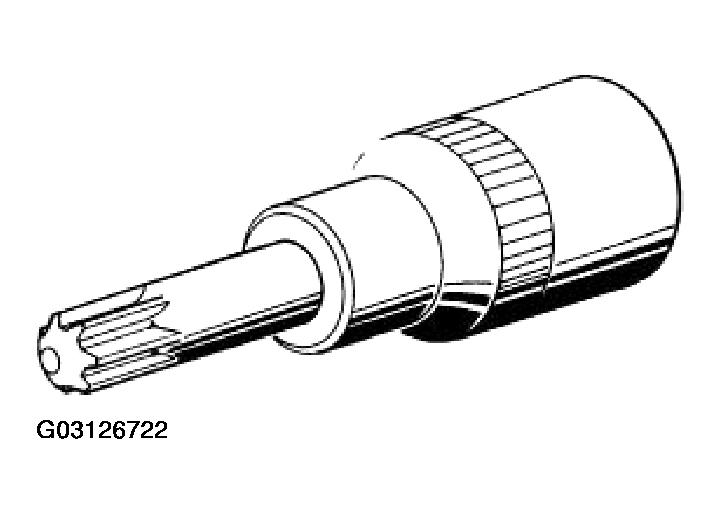

Fig 1: Identifying Special Tool - 34 1 200 Screwdriver Socket
G03126722Courtesy of BMW OF NORTH AMERICA, INC.
