34 1 130 Installation sleeves
Minimum set: Mechanical tools
SPECIAL TOOL DESIGNATION
| Note: | For mounting dust caps on brake piston |
| Series: | E39, E52, E53, E60, E61, E63, E64, E65, E66, E67 |
| Storage location: | A35 |
| SI number: | 1 01 97 (173) |
| Order number: | 34 1 130 |

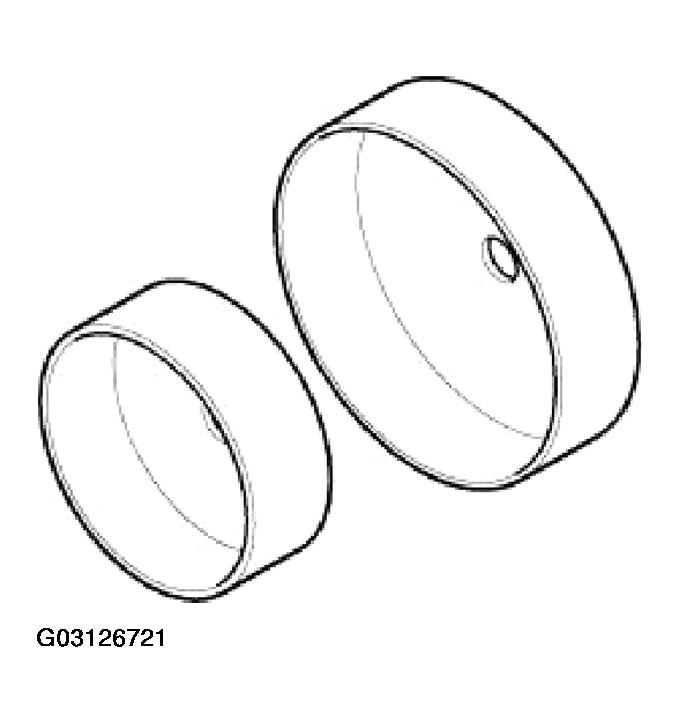

| Installation sleeves | |
| Consisting of: | |
| 34 1 132 | Press-in sleeve |
|
NOTE:
Diameter 58 mm for rear dust cap - Series: E52, E53, E60, E65, E66, E67
|
|
| 34 1 133 | Sleeve |
|
NOTE:
For installing dust sleeve on floating caliper of front axle - Series: E53, E65, E60, E66, E67
|
|
