54 12 004 Adjusting sun roof

CAUTION: Do not move floating roof liner with force. Follow procedure precisely because otherwise mechanism (guide) on slide/tilt sunroof cassette can be damaged. It then has to be replaced.

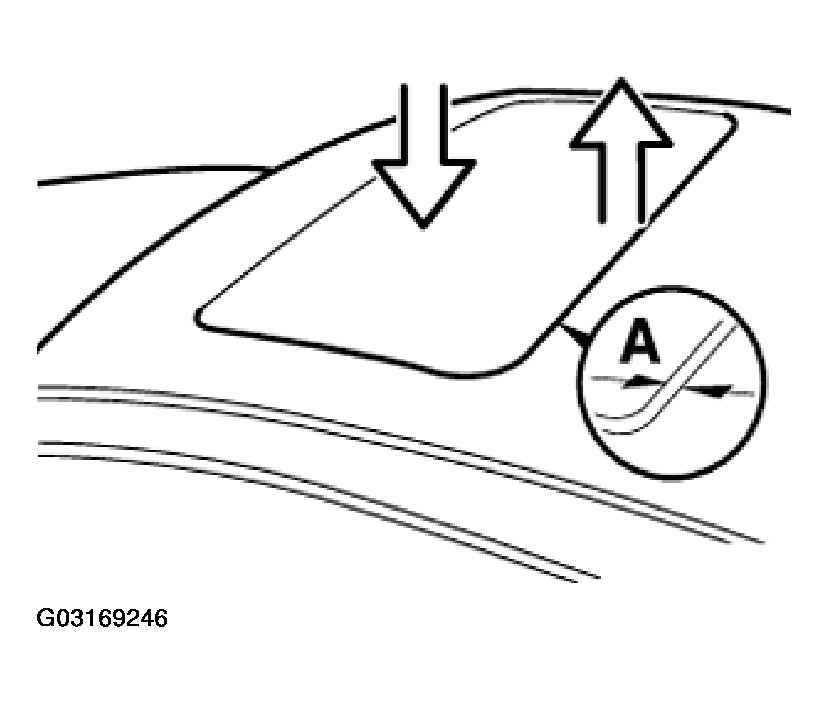

Ideal adjustment:

Gaps (A) between sunroof and front and back of roof of equal size.

Height:

Front - flush to 1 mm deeper.

Rear - flush to 1 mm higher.

Fig 1: Identifying Adjustment Gaps Between Roof And Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Initializing slide/tilt sunroof, refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .

Closing slide/tilt sunroof lid (zero setting).

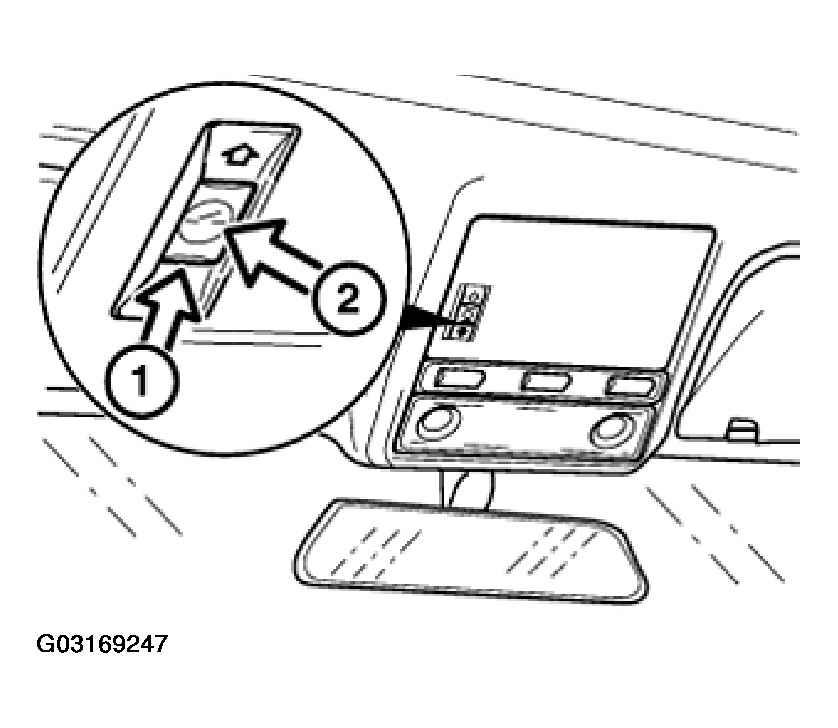

Press button to open roof briefly (1), then stop again (2) (inching function).

Fig 2: Pressing Button To Open Roof Briefly

Courtesy of BMW OF NORTH AMERICA, INC.

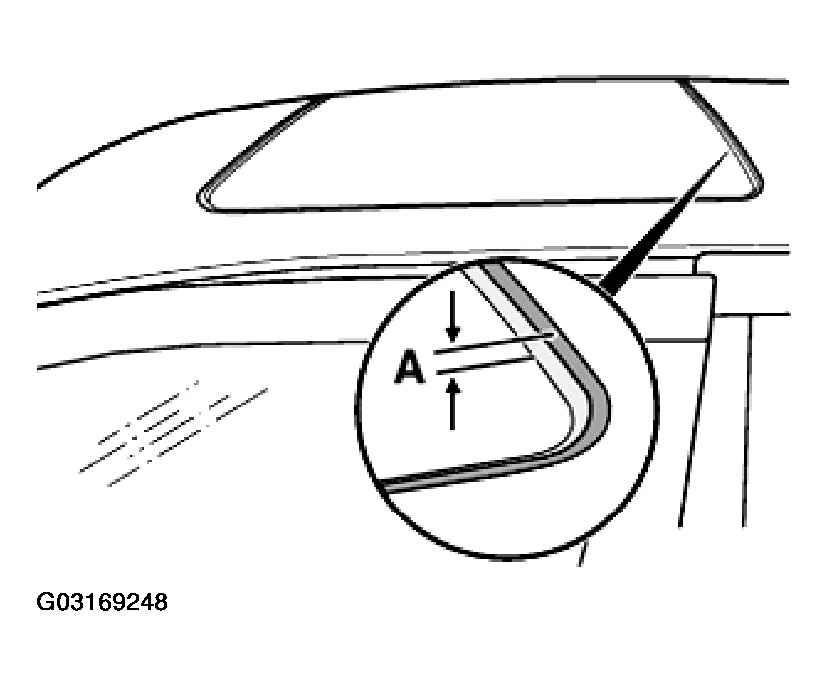

The slide/tilt sunroof lid must now lower at back by dimension (A).

(A) = 2 ... 4 mm.

Fig 3: Identifying Slide/Tilt Sunroof Lowering Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Swift movement of the slide/tilt sunroof can damage mechanism (guide) of the slide/tilt sunroof cassette. Do not move floating roof liner with force.

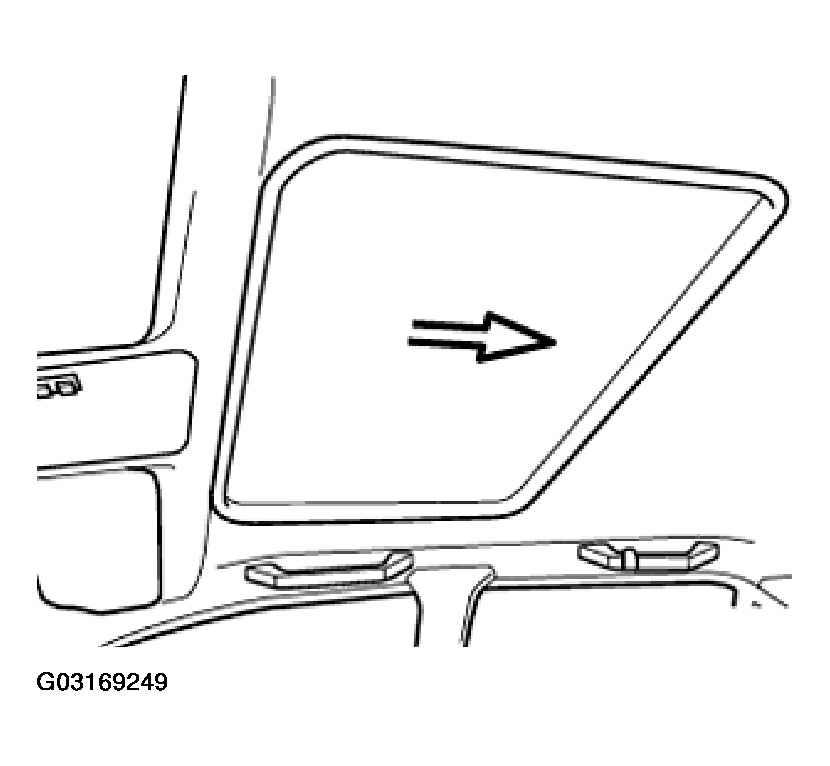

Slowly slide floating roof liner right back (with clean hands, or wearing protective gloves).

Fig 4: Identifying Slide Floating Roof Liner

Courtesy of BMW OF NORTH AMERICA, INC.

Closing slide/tilt sunroof lid (zero setting).

CAUTION: It is now no longer possible to move slide/tilt sunroof lid backwards (damage to mechanism).

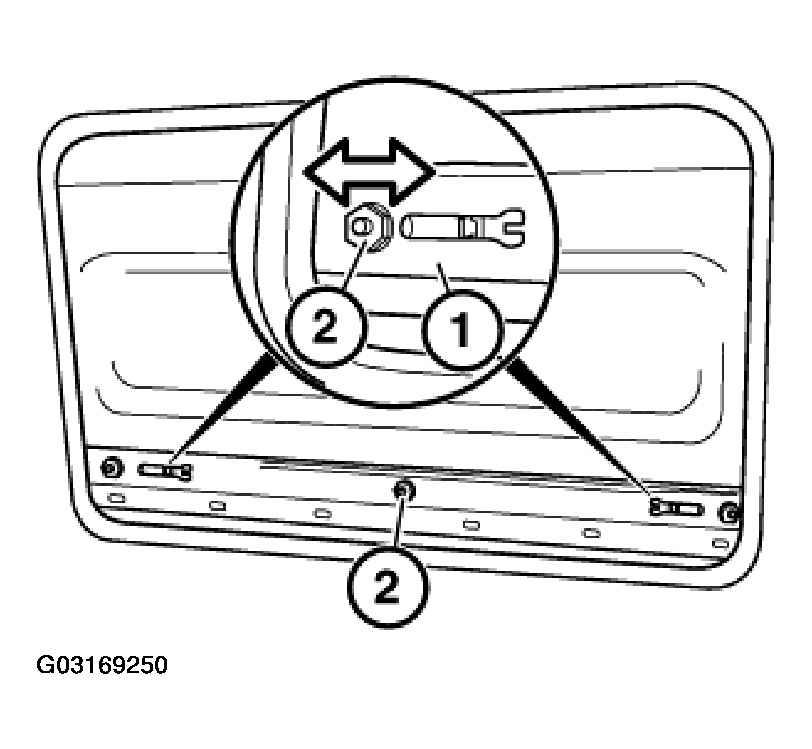

Rear adjustment:

Unfasten nut (2) and replace.

Slide in adjusting wedges (1) on left and right until ideal setting is reached.

Press slide/tilt sunroof lid forwards, then tighten the outer nut (2) first of all.

Tightening torque - refer to 54 12 MECHANICAL SUN ROOF COMPONENTS .

Fig 5: Sliding In Adjusting Wedges On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

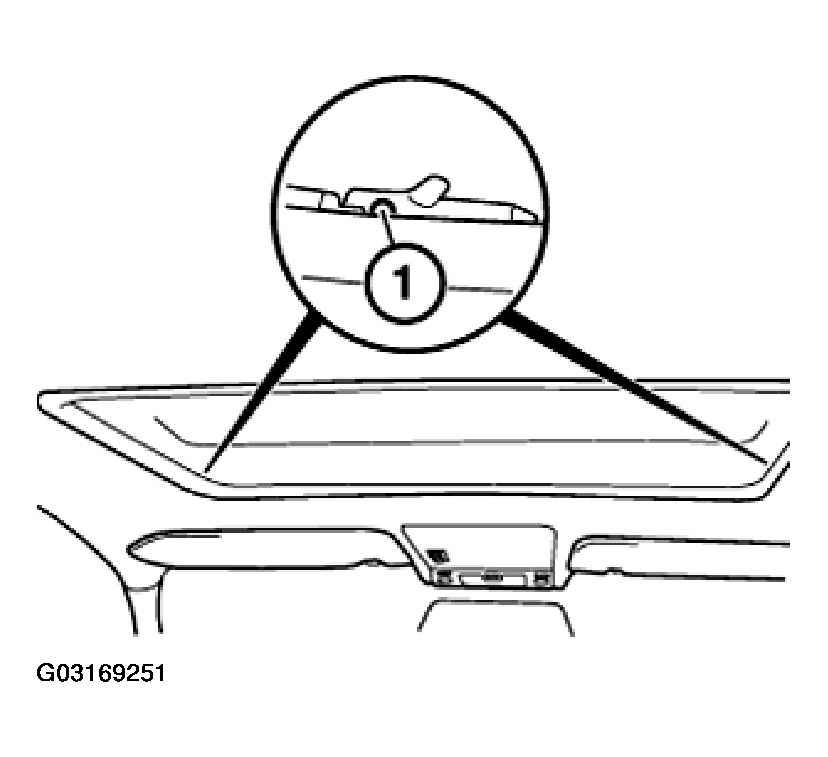

Front adjustment:

Loosen left/right screws (1).

Push slide/tilt sunroof lid upwards or downwards until ideal setting is reached.

Tighten screws (1).

Installation:

Tightening torque - refer to 54 12 MECHANICAL SUN ROOF COMPONENTS .

Replace removed screws (micro-encapsulation) or install old screws with Loctite 270.

Fig 6: Loosening Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

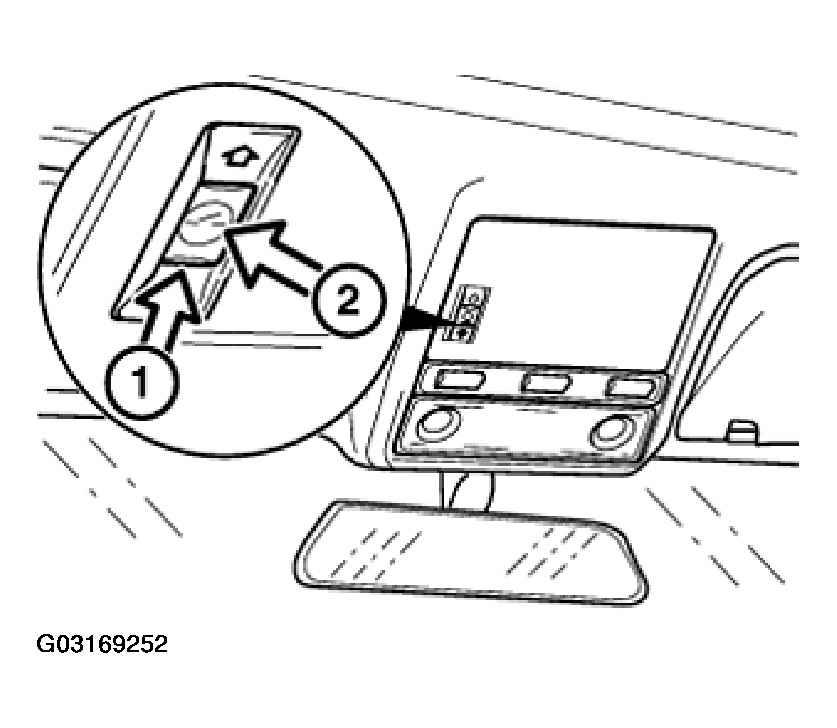

Press button to open roof briefly (1) then stop again (2) (inching function).

Fig 7: Pressing Button To Open Roof Briefly

Courtesy of BMW OF NORTH AMERICA, INC.

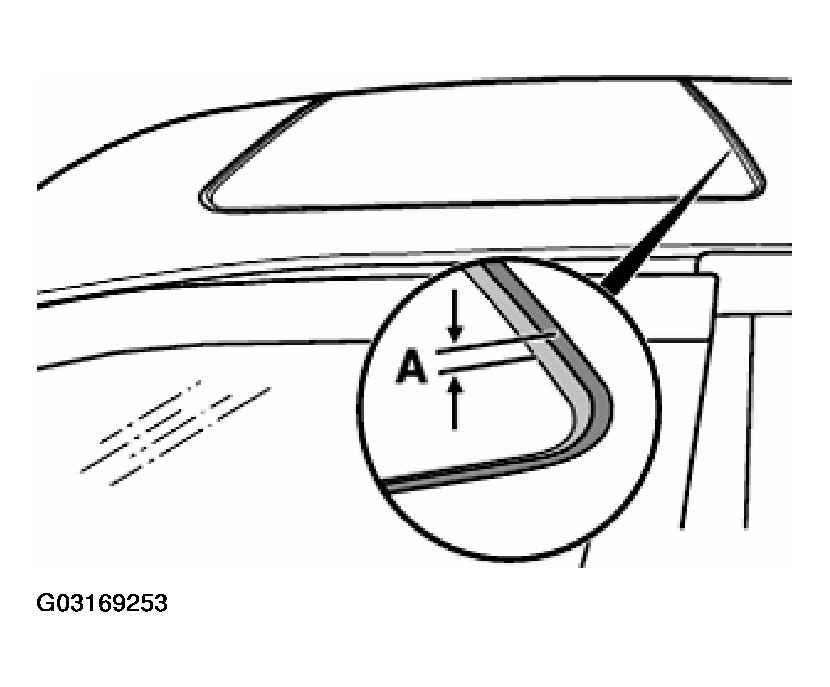

The slide/tilt sunroof lid must now lower at back by dimension (A).

(A) = 2 ... 4 mm.

Fig 8: Identifying Slide/Tilt Sunroof Lid Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Swift movement of the slide/tilt sunroof can damage mechanism (guide) of the slide/tilt sunroof cassette.

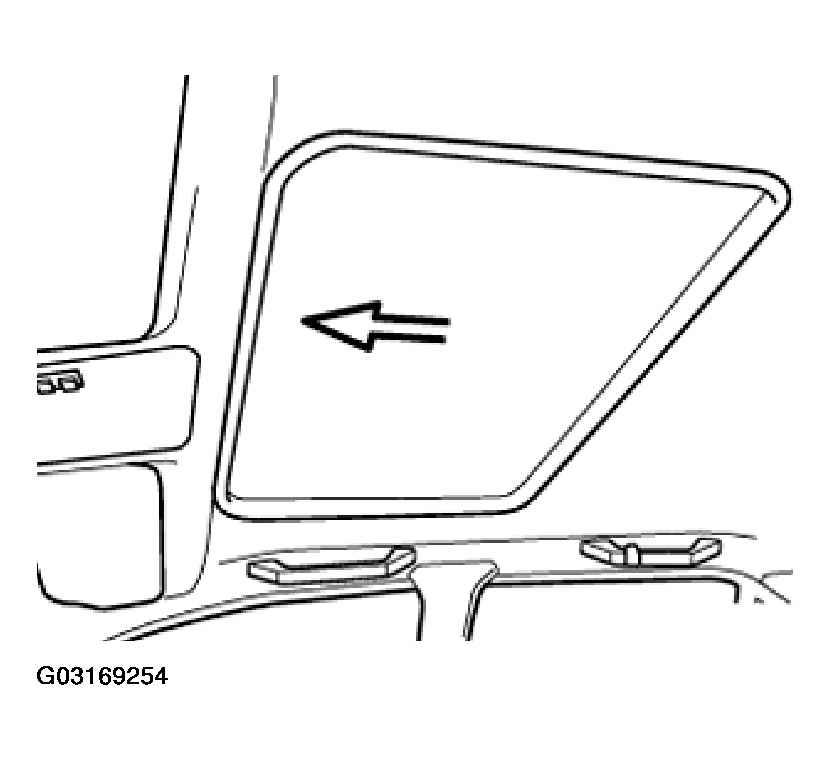

Fig 9: Identifying Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Pull floating roof liner forwards (with clean hands or wearing protective gloves).

Installation:

Check function.
