52 26 008 Removing and installing/replacing left/right sides of backrest on rear seat backrest

Remove rear seat, refer to 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL)  .

Unscrew screw.

Unclip top section of backrest (1) and pull upwards (2) to remove.

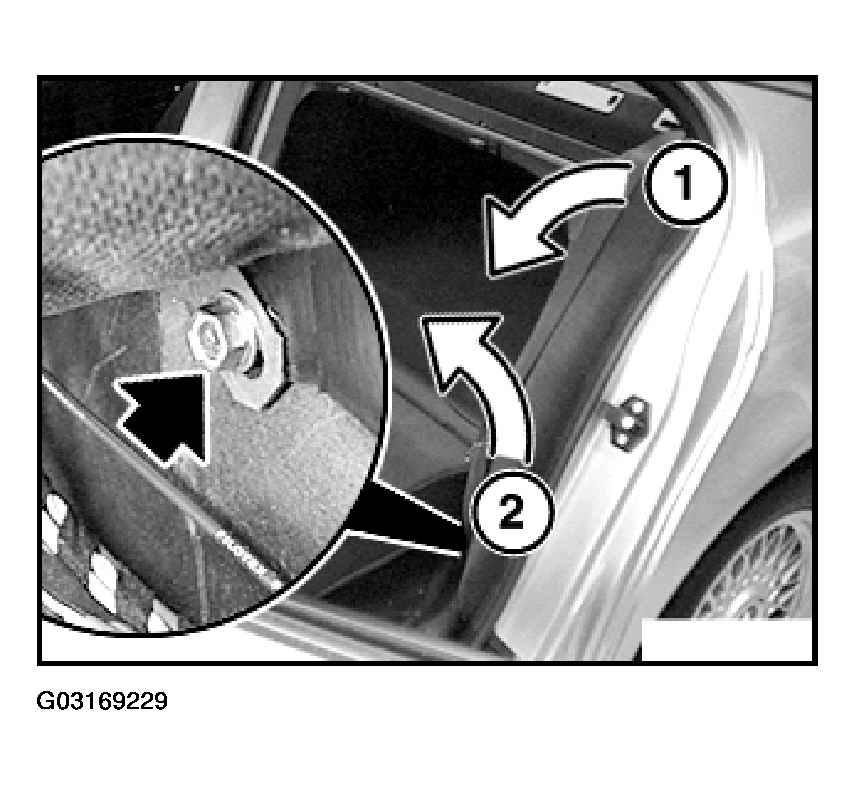

Fig 1: Unclipping Top Section Of Backrest And Pulling Upwards To Remove

Courtesy of BMW OF NORTH AMERICA, INC.
