51 2 150 Assembly tool
Minimum set: Mechanical tools
ASSEMBLY TOOL SPECIFICATION
| Note: | For gas pressurized props on boot lid and rear window frame |
| Series: | E39tou |
| Storage location: | A3, B3, C3 |
| SI number: | 1 08 97(193) |
| Order number: | 51 2 150 |

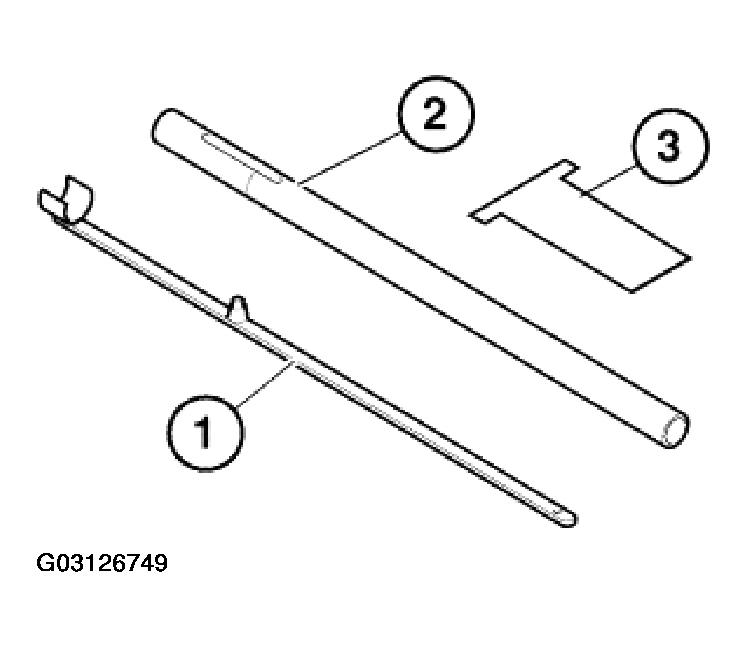

| Assembly tool | |
| Consisting of: | |
| 1 = 51 2 151 | Fitting lever |
|
NOTE:
For gas pressurized springs on trunk lid
|
|
| 2 = 51 2 152 | Assembly tube |
|
NOTE:
For gas pressurized springs on rear window frame
|
|
| 3 = 51 2 153 | Assembly guard |
